Uniden BCD436HP Owner's Manual

53

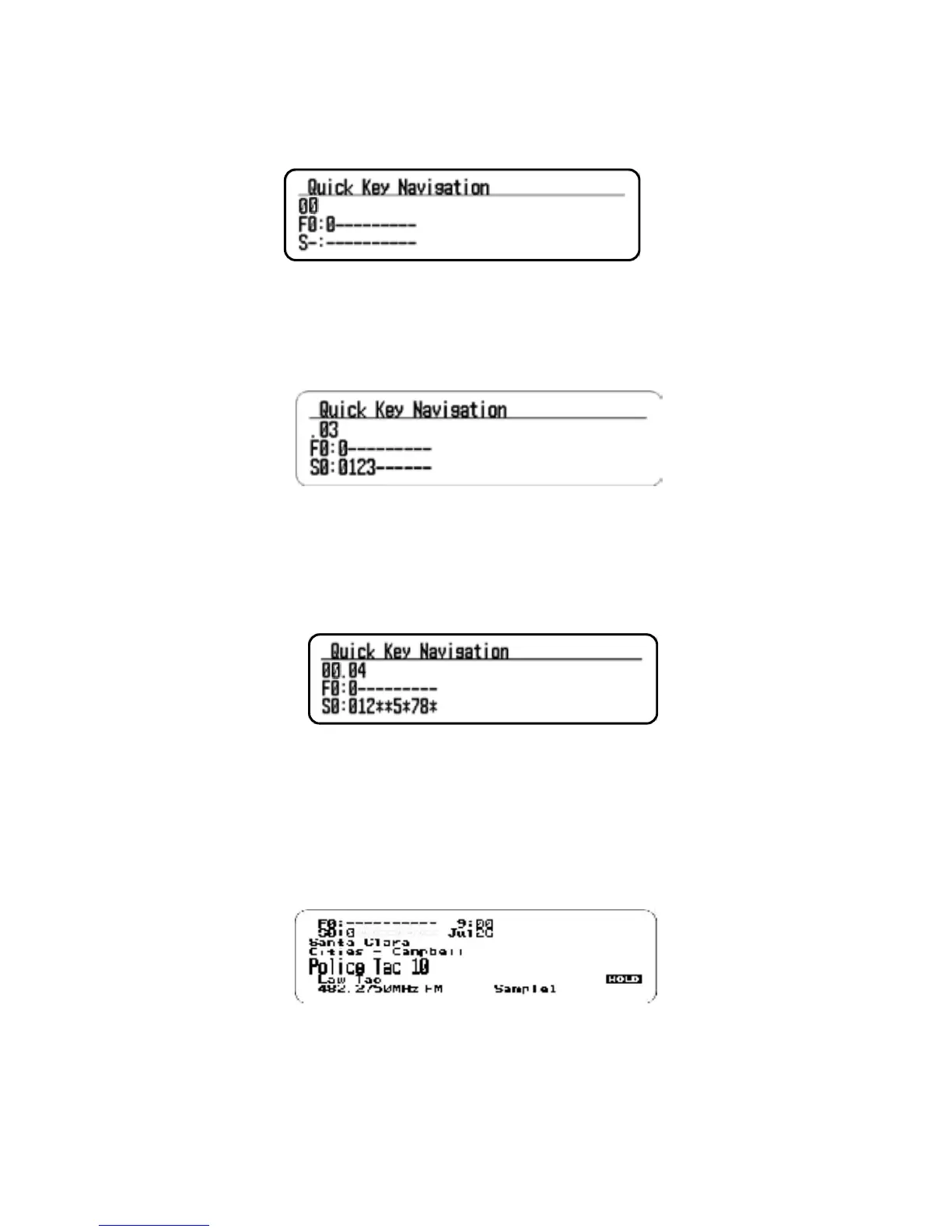

SELECTING QUICK KEYS
Select a Favorites List Quick Key – Press the number key(s) assigned to the Favorites
List then press E/yes. Example: 00, E/yes to enable or disable List 0.
Select a System Quick Key in the Current List – Press ./no, then the number key (2 digits)
assigned to the System.
Example: ./no, 03, E/yes to enable or disable System 3.
Select a System Quick Key in a Different List – Press the number key(s) assigned to the
Favorites List then ./no, then the number key (2 digits) assigned to the System then E/yes.
Example: 00, ./no, 04, E/yes to enable or disable List 0, System 4.
TOGGLE DISPLAY MODES
Hold on any channel and press Func then 9(DISP). Press Channel to resume.
In BCD536HP, you can turn 3-Line Display on and off.
In BCD436HP, you can turn on Disp. Unit ID on and off.
3-Line Display O

Uniden BCD436HP Specifications

General

Model	BCD436HP
Antenna	Removable SMA Antenna
Close Call RF Capture	Yes
Dynamic Memory	Yes
PC Programmable	Yes
Water Resistance	No
Category	Scanner Radio
Display	Dot-matrix LCD
Power Source	3x AA batteries or USB power
Weight	10.1 oz
Type	Handheld
GPS	Optional GPS receiver supported
Audio Output	Earphone jack (3.5 mm)
Trunking Systems Supported	Motorola, EDACS, LTR, APCO 25 Phase I and Phase II
Modulation Types	AM, FM, NFM, P25
Battery Life	Varies with usage
Display Type	LCD
USB Port	Yes
SD Card Slot	Yes
Frequency Range	25-512 MHz, 758-960 MHz, 1240-1300 MHz
