Universal Audio Arrow User Manual

Arrow Manual Console Reference 100
Paste Modifier
After any insert is copied, the COPY switch changes to PASTE. The copied data can be
pasted to multiple destinations while the paste option remains latched.
Paste Individual Plug-In
After an insert is copied, click or swipe across one or more destinations while the paste
switch is latched.

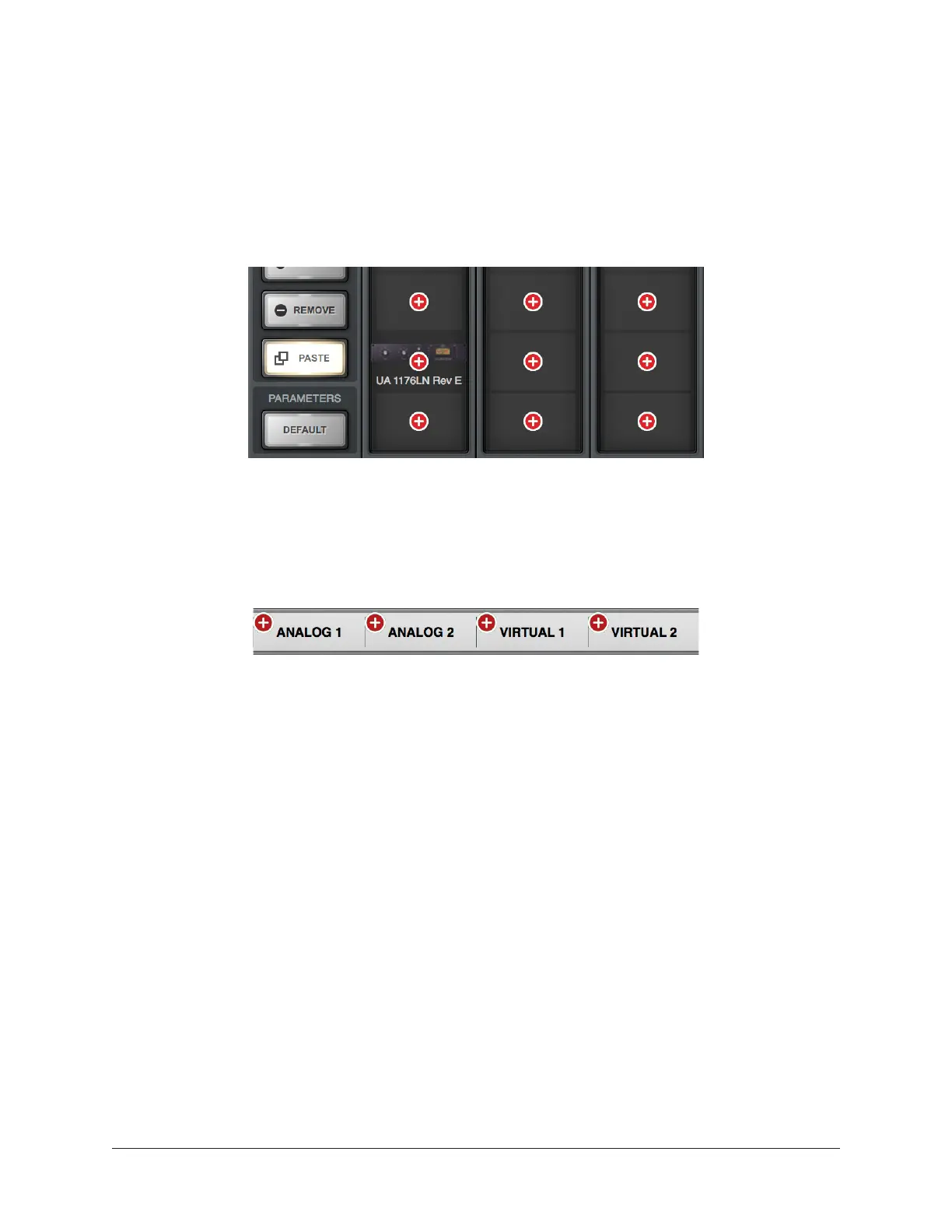

The PASTE modifiers appear on all inserts after copying an insert
Paste Channel Strip
After a channel strip is copied, click or swipe across any input name modifier to paste
the copied channel strip plug-ins into the channel while the paste switch is latched.
The PASTE modifier appears on input names after copying a channel strip
Important: UAD Powered Plug-Ins within Console use DSP differently than when
used within a DAW. To maintain the lowest possible input latency, UAD plug-ins
used on a single Console channel strip must run on a single SHARC processor.
Therefore, it is possible to get a “DSP load limit exceeded” message on a channel
even if the UAD gauges may indicate there is enough DSP available.

Universal Audio Arrow Specifications

General

Type	Audio Interface
Connectivity	Thunderbolt 3
Input Channels	2
Output Channels	2
Simultaneous I/O	2 x 4
Preamps	2
Phantom Power	Yes
A/D Resolution	24-bit/192 kHz
Analog Inputs	2 x XLR/TRS Combo
Headphones	1 x 1/4"
Thunderbolt Ports	1 x Thunderbolt 3
Power Supply	Bus powered
Software	UAD Software
Compatibility	Mac, Windows
Analog Outputs	2 x 1/4" TRS
