Arrow Manual Console Reference 102
Show Sends
In Sends View, all mix controls for a single send mix bus, and/or the monitor mix bus, are
displayed for all Console inputs simultaneously (see screenshots below).
Note: Only one send mix can be displayed at a time (the SHOW SEND switches
are mutually exclusive).
The displayed mixes are determined by the state of the send and monitor SHOW
switches in the Sends View column. The mix is visible when its switch is engaged (lit).
SHOW MIX switch on – The send’s mix controls are displayed above the monitor mix
controls (left screenshot).
SHOW MIX switch off – Only the send’s mix controls are visible, offering maximum send
fader resolution (center screenshot).
SHOW MIX switch on and all SHOW SEND switches off – Only the monitor mix controls
are visible, offering maximum monitor fader resolution (right screenshot).
Tip: Sends View offers long-throw faders and meters for finer control resolution.
To increase the control resolution of the mix faders in Sends View, increase the
vertical size of the Console window.

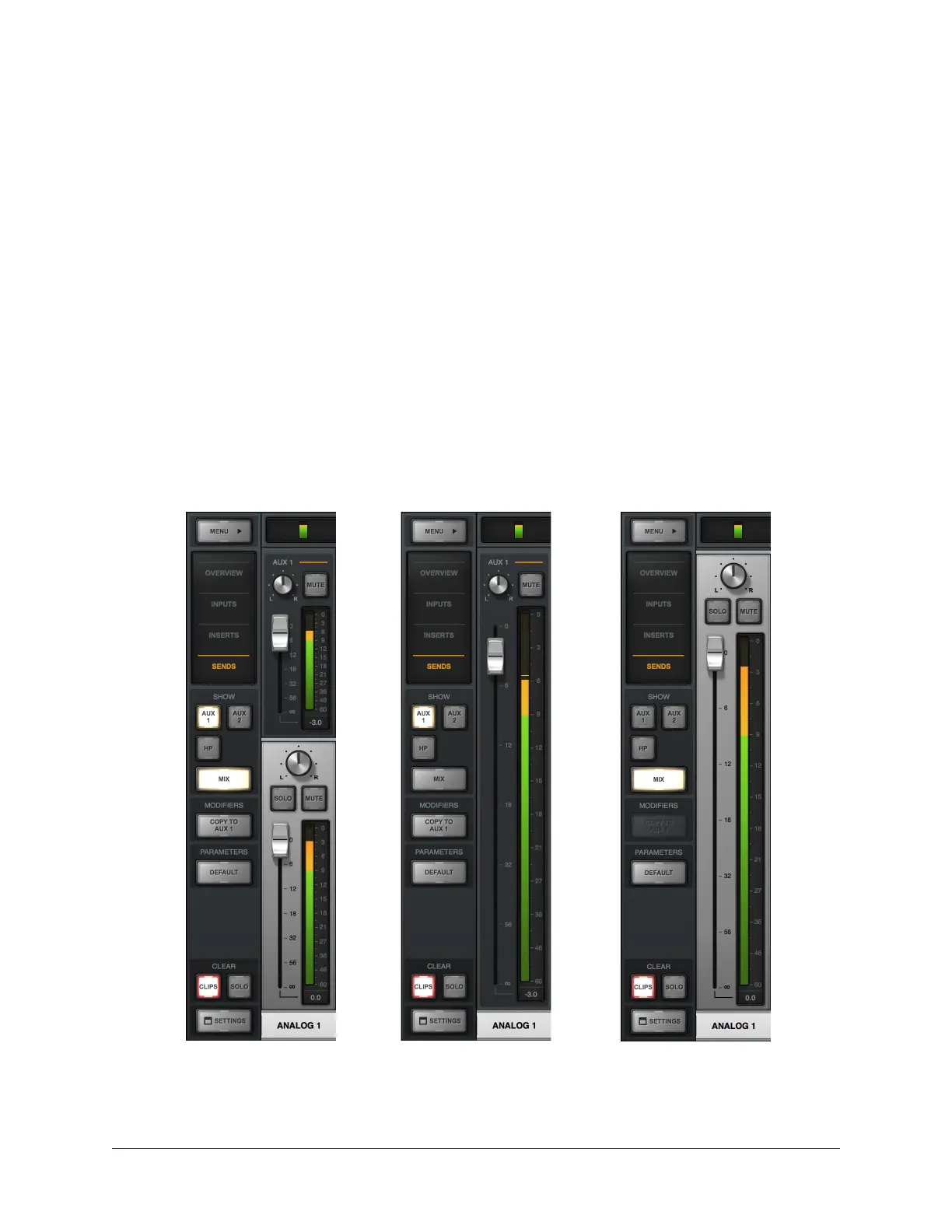

Example screenshots of interaction between the send and monitor SHOW switches.
By showing only one type of fader (either Send or Monitor), the faders are taller,
offering finer control resolution.
