UAD Meter & Control Panel Application
The UAD Meter & Control Panel application is used to configure global UAD-2 system
functions and monitor UAD-2 DSP resources (including multiple devices, if connected).
The application also facilitates authorization of UAD plug-ins and UAD-2 devices.
The application consists of two components: The UAD Meter, and the UAD Control
Panels. To learn more, see UAD Meter & Control Panel.
UAD Meter
The UAD Meter displays the current UAD plug-in DSP and memory loads of all active
UAD-2 hardware. These meters are also present at the bottom of the Console application
window.
Note: Arrow uses DSP and memory for its internal DSP mixer. Therefore, the UAD
meter displays DSP and memory usage even when UAD plug-ins are not in use.

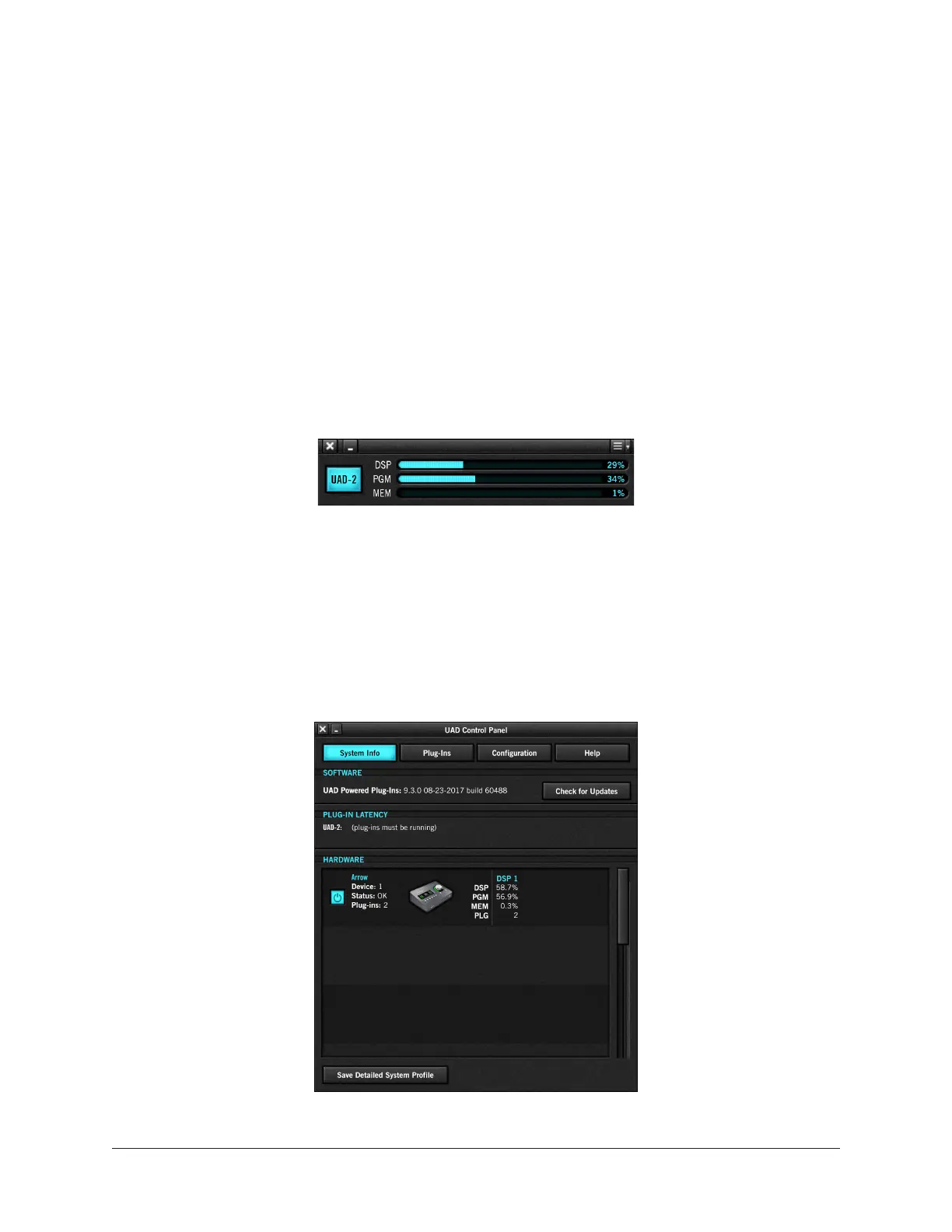

UAD Meter
UAD Control Panels
The UAD Control Panel window has multiple panels that display, and enable control of,
the various UAD-2 system, plug-in, and global configuration parameters.
The screenshot below shows the System Info panel, one of four control panel windows in
the UAD Meter & Control Panel application.
UAD Control Panel with System Info panel selected

Universal Audio Arrow Specifications

General

Type	Audio Interface
Connectivity	Thunderbolt 3
Input Channels	2
Output Channels	2
Simultaneous I/O	2 x 4
Preamps	2
Phantom Power	Yes
A/D Resolution	24-bit/192 kHz
Analog Inputs	2 x XLR/TRS Combo
Headphones	1 x 1/4"
Thunderbolt Ports	1 x Thunderbolt 3
Power Supply	Bus powered
Software	UAD Software
Compatibility	Mac, Windows
Analog Outputs	2 x 1/4" TRS
