Upright NX15 Service And Parts Manual

2. Operation Manual Page 12
Maintenance
M AINTENANCE
WARNING
!
!
Never perform service while the platform is elevated without first blocking the elevating assembly.
DO NOT stand in the elevating assembly area while deploying or storing the brace.

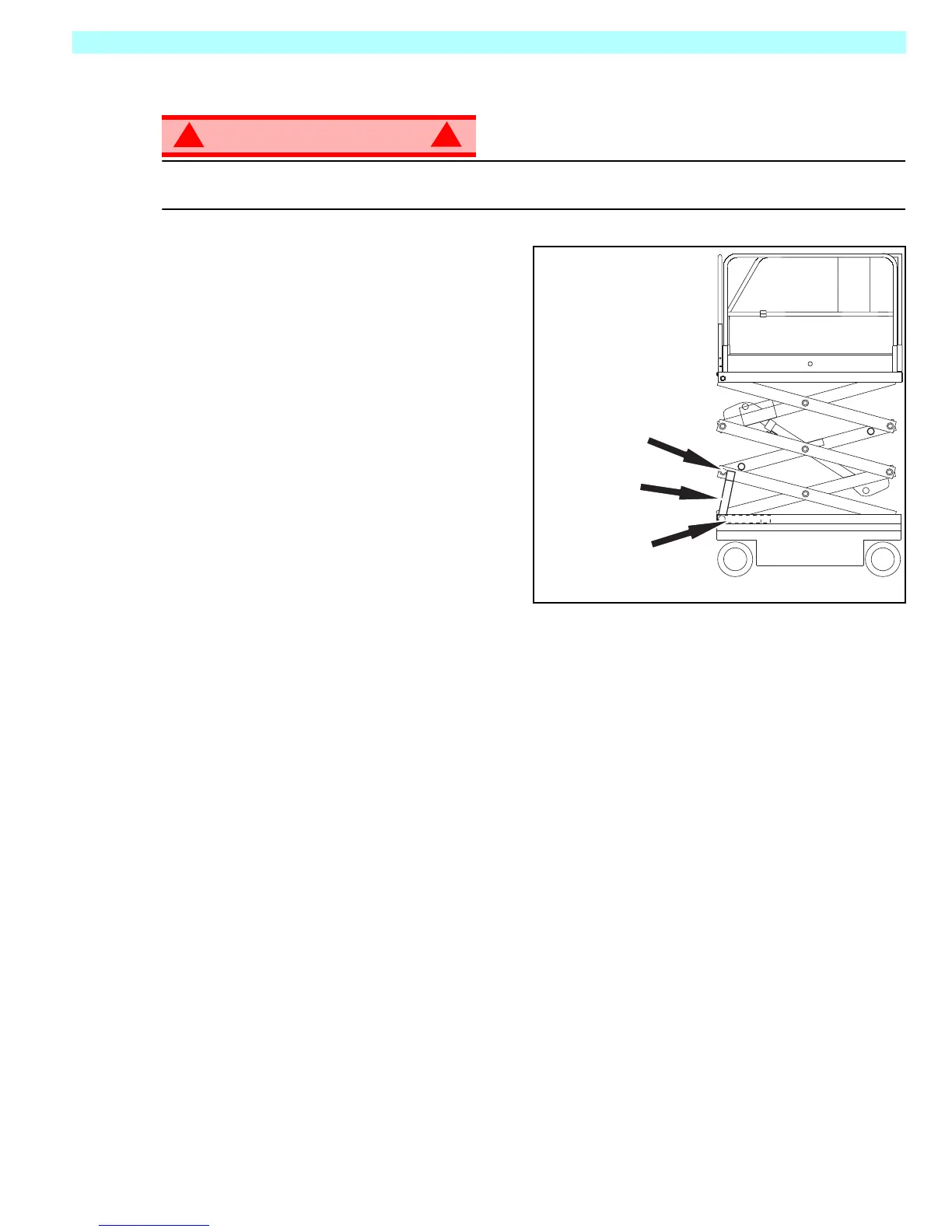

Figure 7: Scissor Brace
B LOCKING T HE E LEVATING
A
SSEMBLY
S CISSOR B RACE I NSTALLATION
1. Park the work platform on a firm, level surface.
Completely unload the platform before
installing the Scissor Brace.
2. Verify that the Chassis and Platform
Emergency Stop Switches are ON by twisting
each button.
3. Turn and hold the Chassis Key Switch to
CHASSIS. Push the Chassis Lift/Lower Switch
to UP and elevate the platform approximately
2,1 m (7 ft.).
4. Rotate the Scissor Brace to a vertical position.
5. Carefully lower the platform until the end of the
Scissor Arm Weldment rests on the Brace.
S CISSOR B RACE S TOWAGE
1. While holding the Brace, slowly raise the platform using the Chassis Controls until the end of the
Scissor Arm Weldment clears the Scissor Brace.
2. Rotate the Scissor Brace forward to rest on the Chassis.
3. Push the Chassis Lift/Lower Switch to LOWER and completely lower the platform.
Scissor Arm
Weldment
Brace Installed
Brace Stowed
