Page 6-14

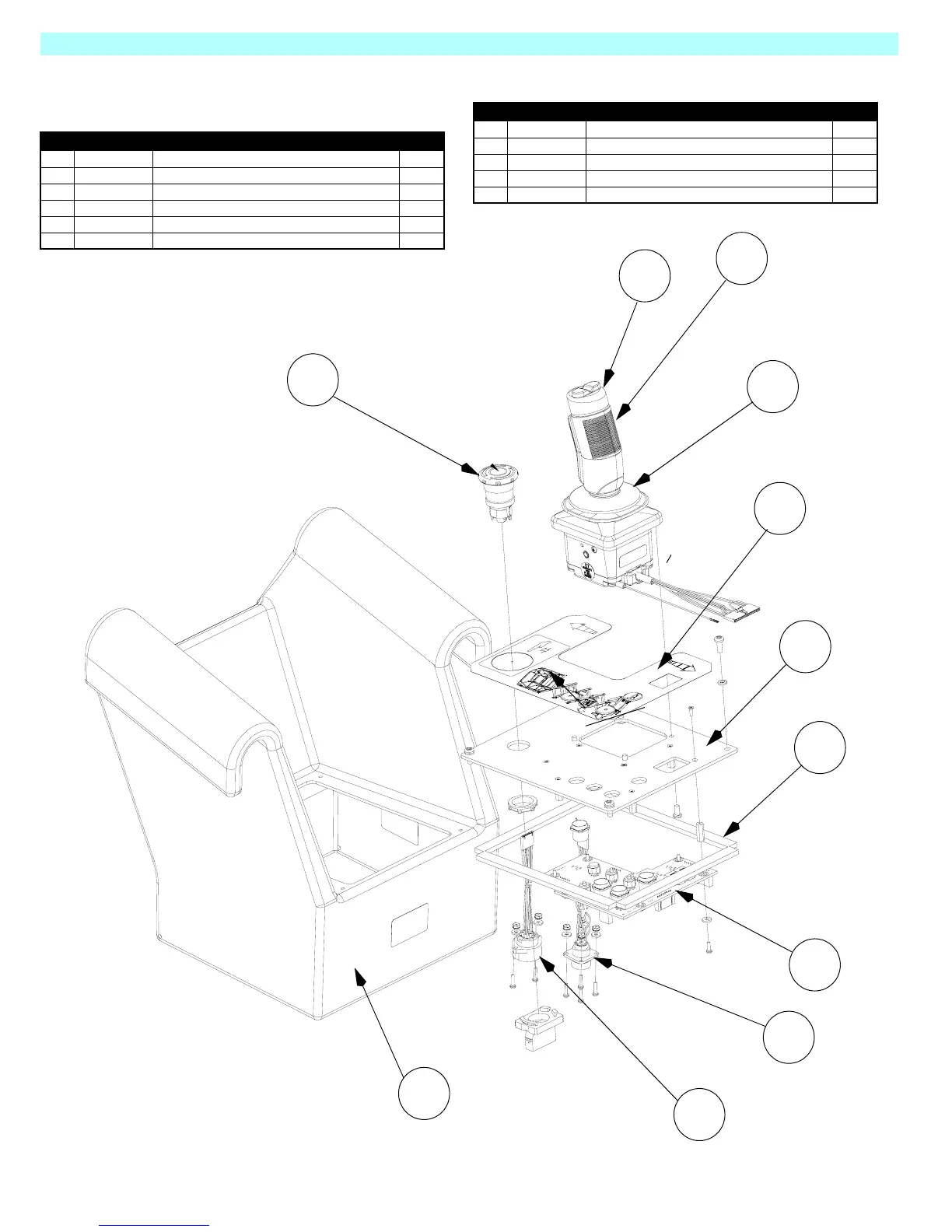

Illustrated Parts Breakdown - Upper Controls Assembly
MX19
Upper Controls Assembly
Item Part Description QTY.
1 501867-000 EMERGENCY STOP BUTTON 1
2 501882-002 RUBBER BOOT, STEERING 1
3 501882-000 JOYSTICK 1
4 501882-001 RUBBER BOOT, JOYSTICK 1
5 502486-000 DECAL 1
6 501592-000 MOUNTING PLATE 1
7 502591-000 SEAL 1
8 502453-000 CIRCUIT BOARD 1
9 502587-001 SOCKET, MAIN HARNESS 1
10 502605-000 SOCKET, OVERLOAD 1
11 502496-000 UCB, BOX ONLY 1
Item Part Description QTY.
1
2
3
4
5
6
8
9
10
11
7
To Next Page
