Page 6-15

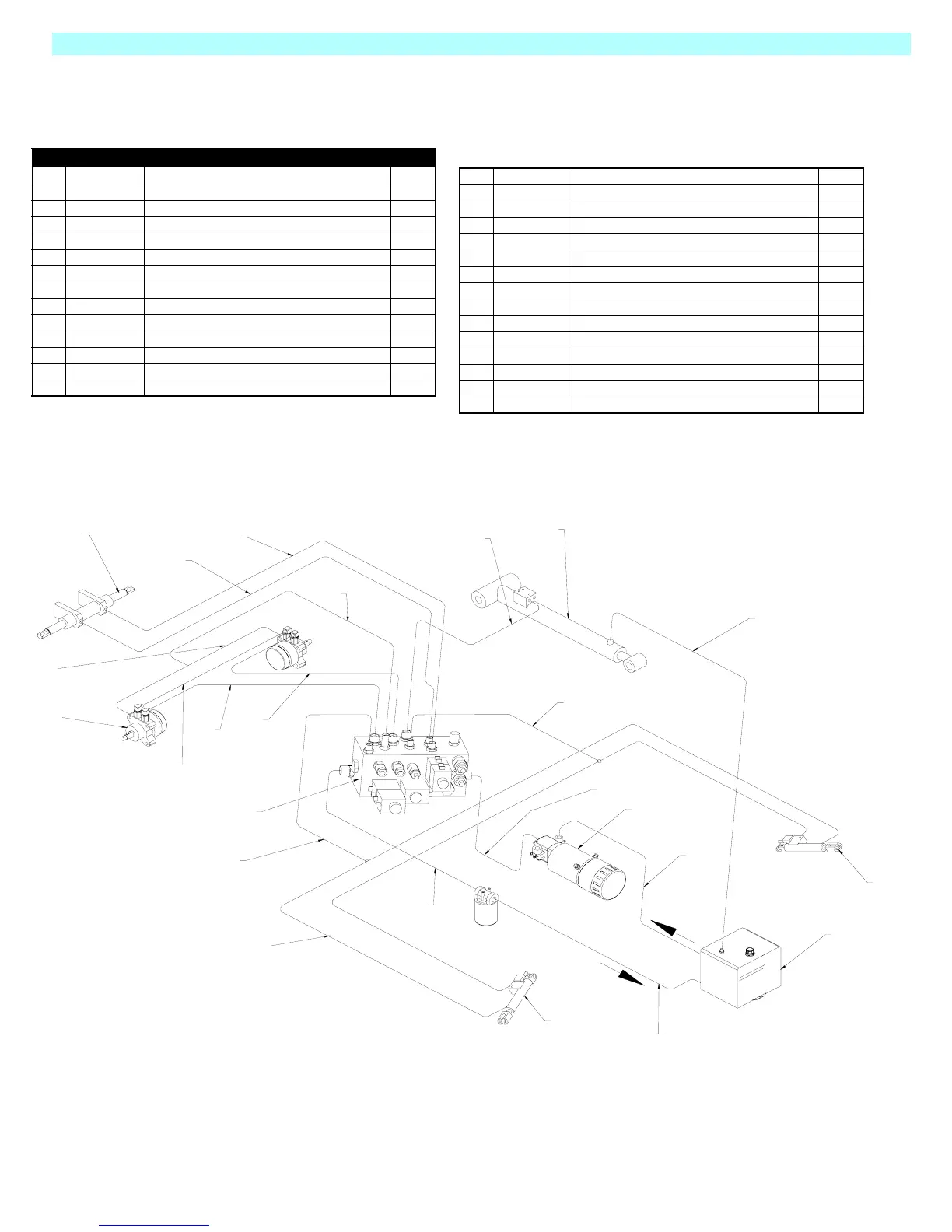

Illustrated Parts Breakdown - Hydraulic Assembly

MX19

Hydraulic Assembly

503507-000

Item Part Description QTY.

1 503800-001 HYDRAULIC MANIFOLD 1

2 503687-000 HYDRAULIC CYLINDER (STEERING) 1

3 503678-000 DRIVE MOTOR 2

4 504536-000 PUMP MOTOR 1

5 503696-000 HYDRAULIC TANK 1

6 503795-000 HYDRAULIC CYLINDER (MAIN LIFT) 1

7 503622-001 HYDRAULIC CYLINDER (POTHOLE) 1

8 503622-000 HYDRAULIC CYLINDER (POTHOLE) 1

9 503693-000 HOSE, MANIFOLD TO STEERING CYLINDER 2

10 503777-000 HOSE, DRIVE MOTOR TO DRIVE MOTOR 1

11 503776-000 HOSE, MANIFOLD TO DRIVE MOTOR 1

12 503775-000 HOSE, MANIFOLD TO DRIVE MOTOR 1

13 503779-000 HOSE, PUMP TO MANIFOLD 1

14 ~ MANIFOLD TO FILTER (RETURN) ~

~ 058170-000 1/2”BSP Female / Female Swept 90 1

~ 503785-000 1/2”BSP Male / Female Swept 90 1

15 503781-000 HOSE, FILTER TO TANK (RETURN) 1

16 503778-000 HOSE, TANK TO PUMP (SUCTION) 1

17 503699-000 HOSE, MAIN LIFT CYLINDR TO TANK (DRAIN) 1

18 503698-000 HOSE, MANIFOLD TO LIFT CYLINDER 1

19 N/A N/A -

20 N/A N/A -

21 503694-000 HOSE, MANIFOLD TO POTHOLE TEE 1

22 503695-000 HOSE, POTHOLE TEE TO MANIFOLD 1

23 503696-000 HOSE, POTHOLE TEE TO POTHOLE CYLINDER 4

24 503691-000 HOSE, MANIFOLD TO BRAKE TEE 1

25 503692-000 HOSE, BRAKE TEE TO DRIVE MOTORS LH & RH 2

26 057107-000 FILTER 1

* 005154-002 FILTER ELEMENT 1
