Batteries Section 3 - Service & Repair
Page 3-8 503727-002
3-6 B
ATTERIES
Electrical Energy for the motor is supplied by four 6 volt batteries wired in series for 24 volts DC. Proper
care and maintenance of the batteries and motor will ensure maximum performance from the work
platform.
CAUTION
If battery water level is not maintained, batteries will not fully charge, creating a low discharge rate.
WARNING
!
!
Hazard of explosive gas mixture. Keep sparks, flame and smoking materials away from batteries.
Always wear safety glasses when working with batteries.
Battery fluid is highly corrosive. Thoroughly rinse away any spilled fluid with clean water.
Always replace batteries with UpRight batteries or manufacturer approved replacements.
Before disconnecting the battery negative (-) lead, make sure all switches are OFF. If ON, a spark will
occur at the ground terminal which could cause an explosion if hydrogen gas or fuel vapors are
present.
B
ATTERY
R
EPLACEMENT

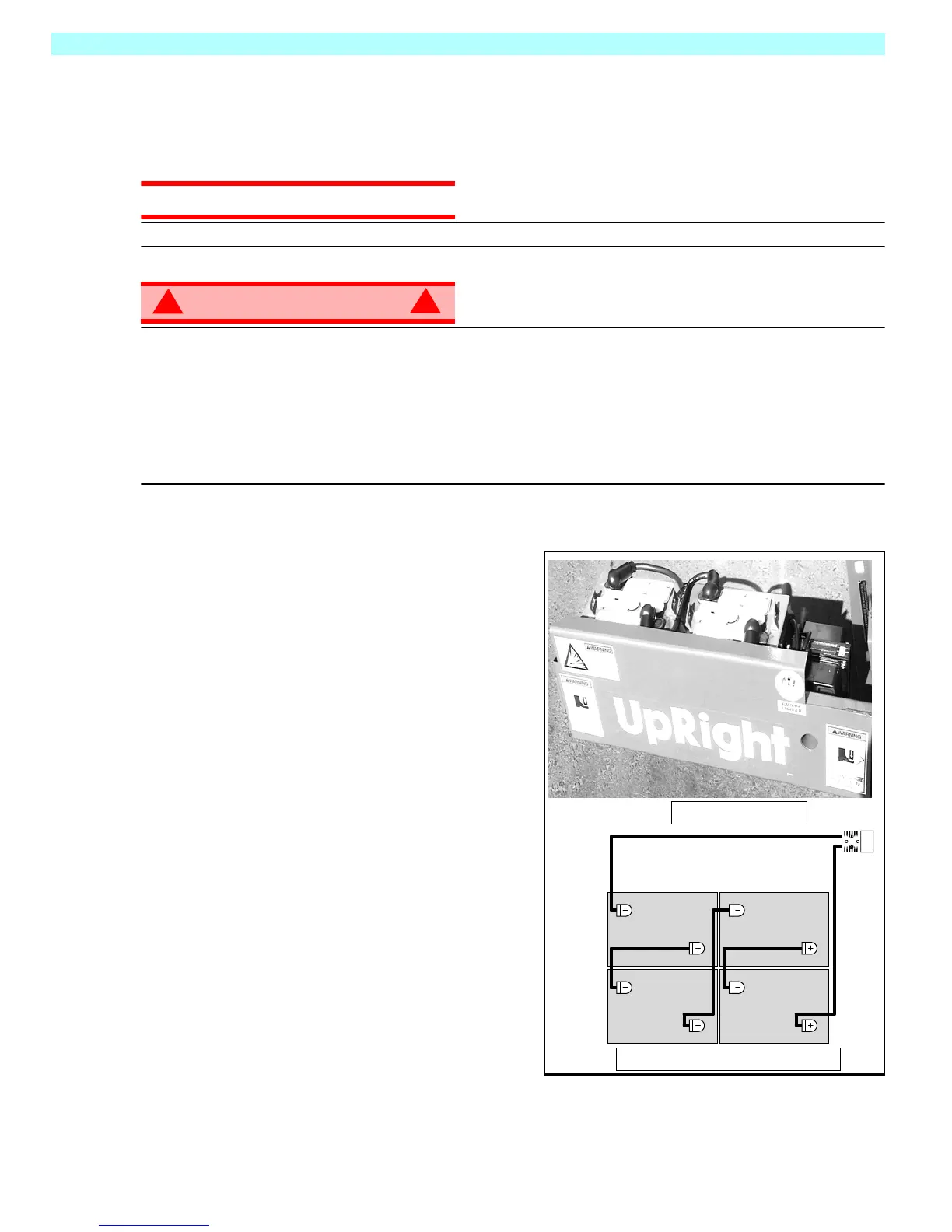

Figure 3-4: Battery Cables
The batteries are located in a slide-out tray in the rear
of the machine. There are four 6 volt batteries wired in
series for 24 volts DC. Battery cables must be
installed as shown in the Battery Cable Installation
Diagram.
B
ATTERY
M
AINTENANCE
Refer to Section 1: General Information for com-
plete battery maintenance instructions.
Refer to the Operation Manual included in this
Service Manual for specific maintenance and
charging instructions.
Batteries Installed
Battery Cable Installation Diagram
To Next Page
