Upright NX15 Service And Parts Manual

Page 6-13

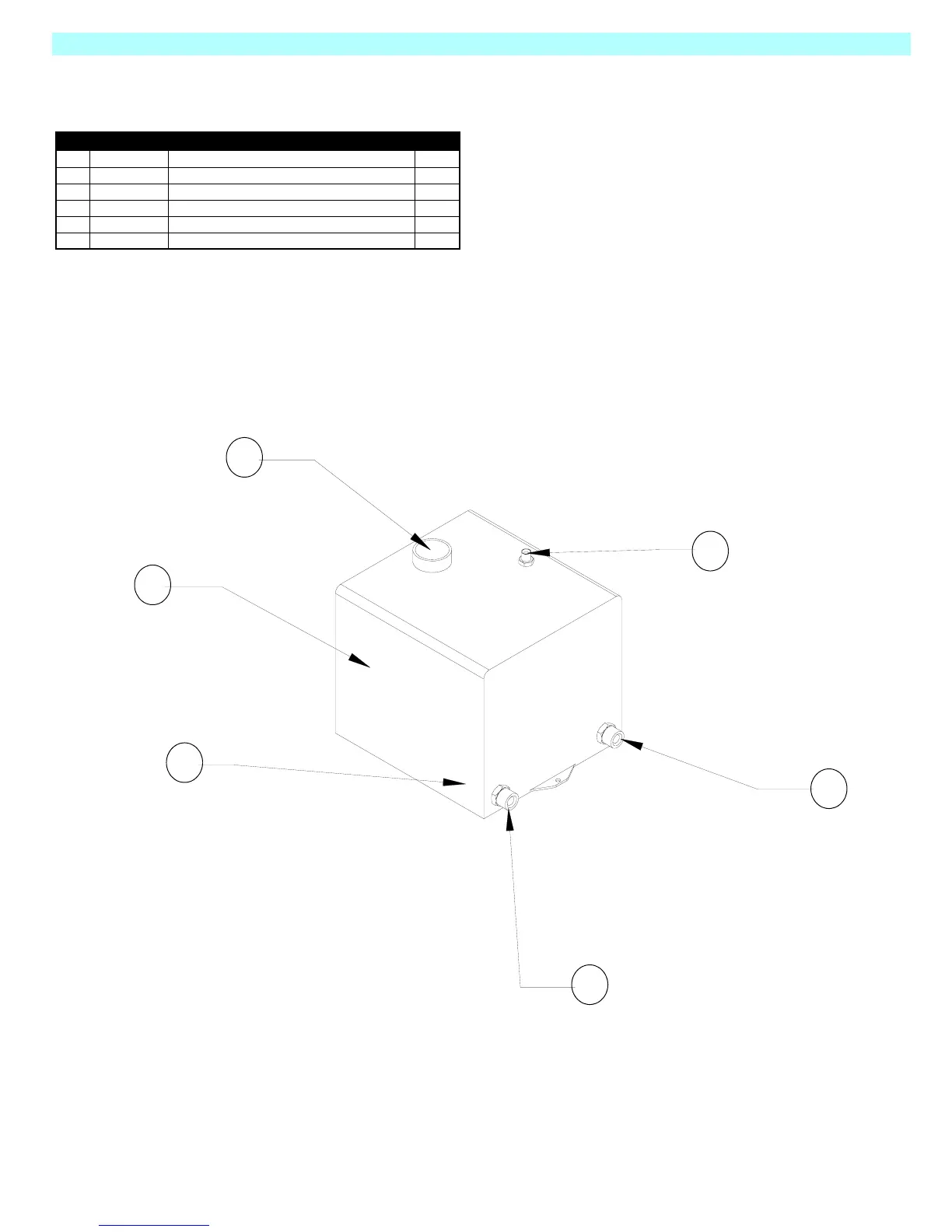

Illustrated Parts Breakdown - Hydraulic Tank Assembly
MX19
5
6
1
2
4
3
Hydraulic Tank Assembly
503696-000
Item Part Description QTY.
1 101056-001 HYDRAULIC TANK (TANK ONLY) 1
2 068982-001 FILER CAP 1
3 503787-000 DRAIN LINE RETURN (1/4” NPT - 1/4” BSP M/M) 1
4 503786-000 RETURN LINE ADAPTOR (1/2” NPT - 1/2” BSP M/M) 1
5 503788-000 SUCTION ADAPTOR (3/4” NPT - 3/4” BSP M/M) 1
6 502196-000 SUCTION STRAINER (INSIDE TANK) 1
(INSIDE TANK)
