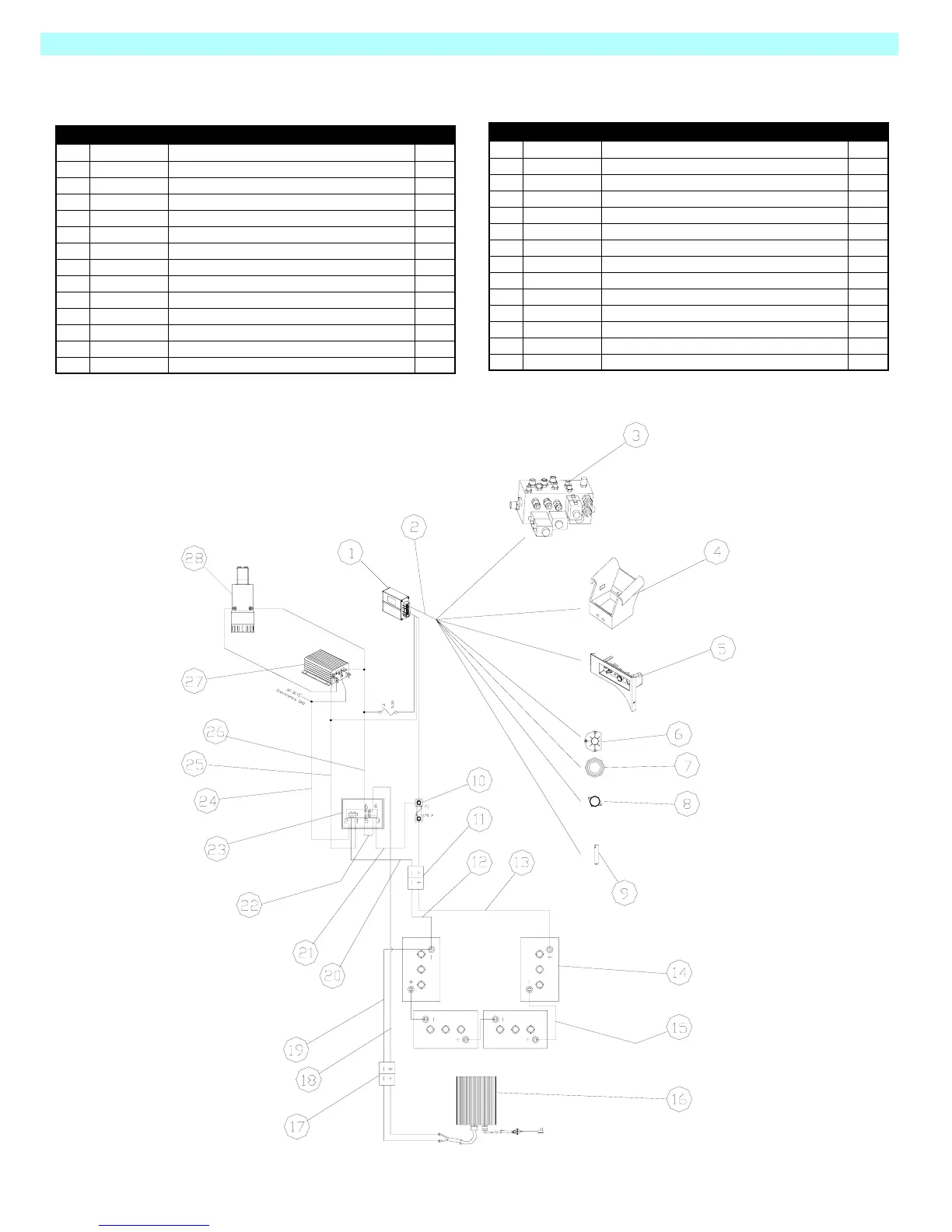

Illustrated Parts Breakdown - Electrical Assembly

MX19

Electrical Assembly

503700-000

Item Part Description QTY.

1 502483-000 ECU 1

2 502593-000 J1 HARNESS 1

3 503800-001 MAIN MANIFOLD BLOCK 1

4 505005-000 UPPER CONTROLS 1

5 505006-000 LOWER CONTROLS 1

6 058912-000 TILT SENSOR 1

7 501868-000 HORN 1

8 502588-000 ALARM 1

9 505072-000 PROXIMITY SENSOR 1

10 502494-000 FUSE 1

11 058937-000 BATTERY DISCONNECT PLUG 1

12 502594-000 HARNESS, BATTERY DISCONNECT - BATT (-) 1

13 502595-000 HARNESS, BATTERY DISCONNECT - BATT (+) 1

14 501074-000 BATTERY 4

15 502596-000 HARNESS, BATTERY INTERCONNECT 3

16 503097-000 CHARGER 1

17 058783-000 CHARGER DISCONNECT PLUG 1

18 502597-000 HARNESS, CHARGER DISCONNECT (+) - LINE CON4 1

19 502598-000 HARNESS, CHARGER DISCONNECT (-) - BATT (-) 1

20 502599-000 HARNESS, CHARGER DISCONNECT (-) - LINE CON2 1

21 502600-000 LINE CONTACTOR 3 - FUSE 1

22 502601-000 LINE CONTACTOR 5 - LINE CONTACTOR 3 1

23 502489-000 LINE CONTACTOR 1

24 502602-000 LINE CONTACTOR 2 - MOTOR CONT B- 1

25 502603-000 LINE CONTACTOR 1 - MOTOR CONT ENABLE 1

26 502604-000 LINE CONTACTOR 6 - PUMP MOTOR 1

27 502492-000 MOTOR CONTROLLER 1

28 504536-000 PUMP MOTOR (Serial numbers 50691 to current) 1
