Upright NX15 Service And Parts Manual

Section 3 - Service & Repair Hydraulics
503727-002 Page 3-11

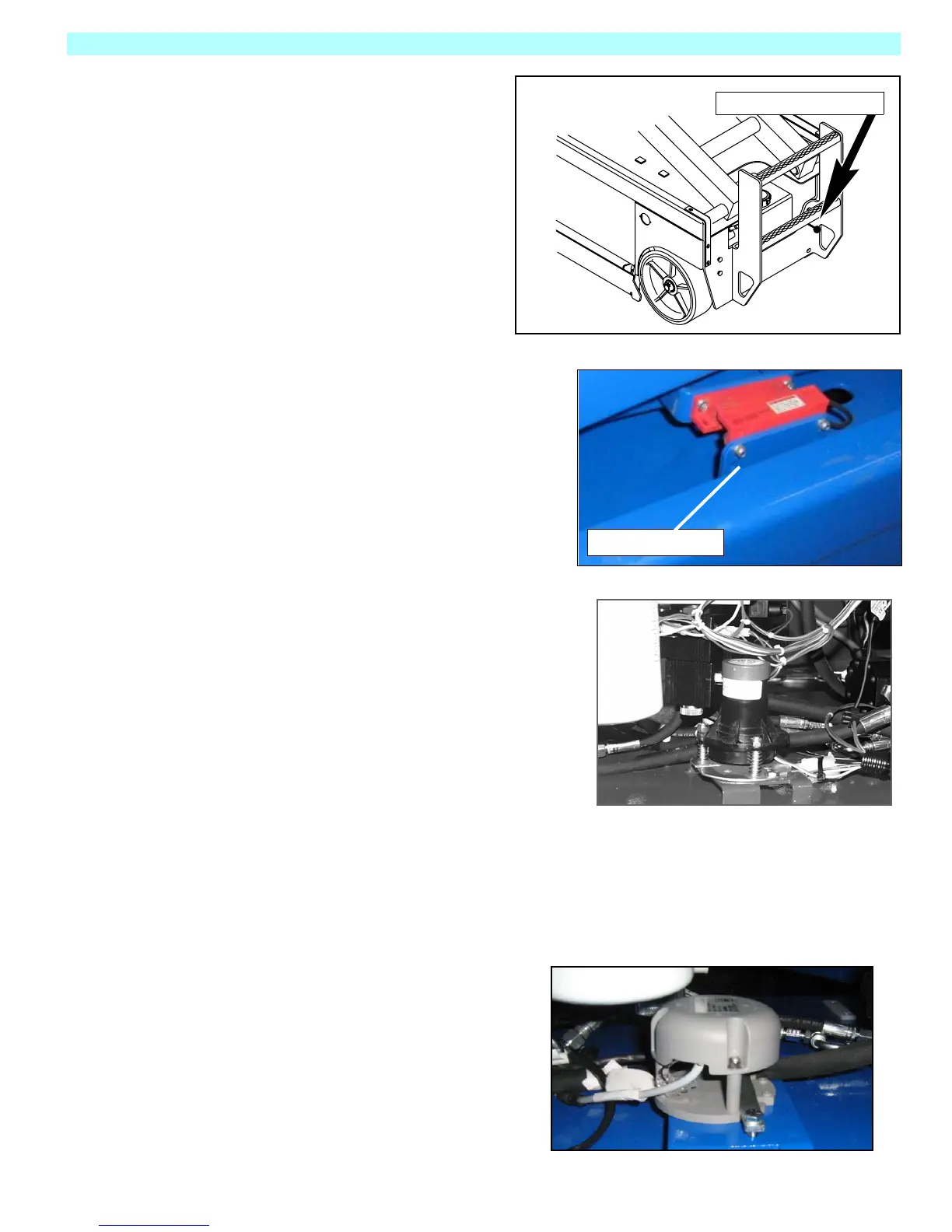

Figure 3-7: Emergency Down Valve
E MERGENCY D OWN V ALVE
The Emergency Lowering Valve Knob is located
beside the ladder at the rear of the machine.
Open the Emergency Lowering Valve by pulling
and holding the knob.
To close, release the knob. The platform will not
elevate if the Emergency Lowering Valve is
open.
Proximity Switch
The Proximity Switch cuts power to the High Speed Drive
when the platform is elevated. The switch is located on
the left side of the chassis at the rear of the machine.
No adjustment of the switch should be necessary.
Level Sensor
INTRODUCTION
The Level Sensor has three wires: red-power (24 v in),
black-ground, white-output (24 v out). To verify that the
sensor is working properly, there is one LED under the
sensor that indicates the sensor is off level.
ADJUSTMENT
1. Place the machine on a firm level surface ± ¼°.
2. Use the Inclinometer (P/N: 010119-000) to ensure front
and rear of chassis is level ± ¼°.
3. Adjust the three leveling locknuts until the bubble is
centered in the circle on the attached bubble level.
TEST
Raise the platform approximately 7 feet, then push the level sensor to the side. The red LED should turn
on, and the tilt alarm should sound.
L EVEL S ENSOR ( M/C NUMBER 51250+)
These units are sealed and pre-set, and require no
recalibration or adjustment.
Emergency Down Valve
Down Limit Switch
