Page 1-1
Section 1
INTRODUCTION
1.1 INTRODUCTION
PURPOSE
The purpose of this service and parts manual is to provide instructions and illustrations for
the operation and maintenance of the MX19 manufactured by UpRight Powered Access.
SCOPE
The manual includes procedures for proper operation, maintenance, adjustment, and repair
of the MX19 as well as recommended maintenance schedules and troubleshooting.
1.2 GENERAL DESCRIPTION
The MX19 consists of the platform, controller, elevating assembly, power module, control
module, and chassis.

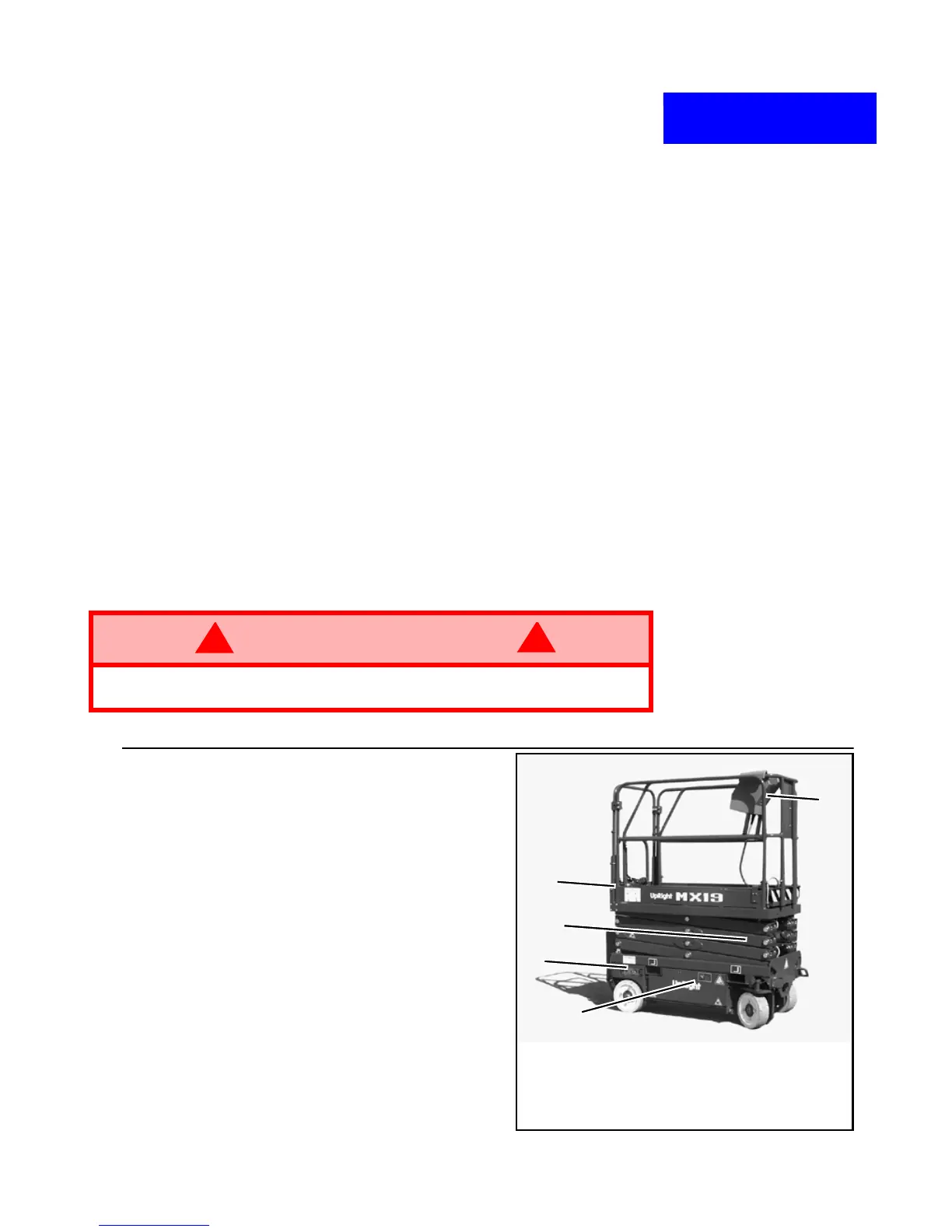

Figure 1-1: MX19 Work Platform
PLATFORM
The platform has a reinforced steel floor,
1.11 m (43.75 inch) high guardrails with
midrail, 6 inch (152 mm) toeboards, and
an entrance gate at the rear of the
platform.
PLATFORM CONTROLLER
The platform controller contains the
controls to operate the machine. It is
located at the front of the platform. A
complete explanation of control functions
can be found in Section 2.
ELEVATING ASSEMBLY
The platform is raised and lowered by
the elevating assembly. The hydraulic
pump, driven by an electric motor,
powers the cylinder. Solenoid operated
valves control raising and lowering.
WARNING
!
!
DO NOT use the work platform without guardrails properly assembled and in
place.
1.Platform
2.Platform Controller
3.Elevating Assembly
4.Chassis Controls
5.Chassis
1
2
3
4
5
