Upright X Series Service & Parts Manual

X-Series Work Platform 4-3
Maintenance
Section

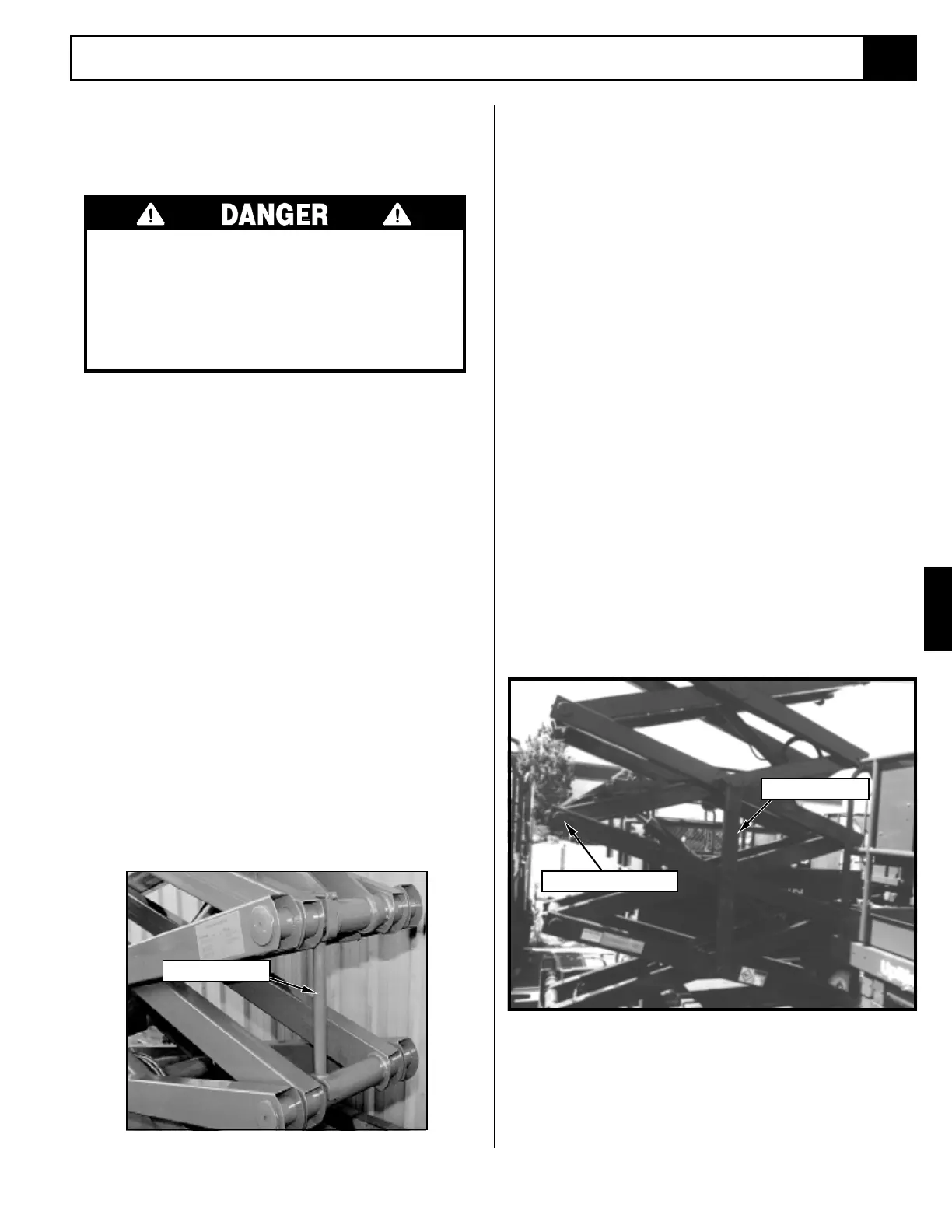

Figure 4-1: Blocking the Elevating Assembly
4.2
4.2 Blocking Elevating
Assembly X20N, X20W, X26N
(Figure 4-1)
Never perform service on the work plat-
form in the Elevating Assembly area while
platform is elevated without first blocking
the Elevating Assembly.
DO NOT stand in Elevating Assembly area
while installing or removing brace.
INSTALLATION
1. Park the work platform on firm level ground.
2. Verify Platform Emergency Stop Switch is ON.
3. Turn Chassis Key Switch to CHASSIS.
4. Position Chassis Lift Switch to UP and elevate
platform approximately 9.5 Ft. (2.9 m).
5. Rotate Scissors Brace towards the front and allow it
to hang vertical over the lower scissor pivot tube.
6. Push Chassis Lift Switch to DOWN position and
gradually lower platform until brace rests on lower
scissor arm pivot tube.
REMOVAL
1. Push Chassis Lift Switch to UP position and gradu-
ally raise platform until the lower end of the Scissors
Brace will clear the lower scissor arm pivot tube.
2. Rotate Scissors Brace up and over towards the rear
so that it rests on the cylinder mount, stowed posi-
tion.
3. Push Chassis Lift Switch to DOWN position and
completely lower platform.
4. Turn Chassis Key Switch to DECK.
4.2 Blocking Elevating
Assembly X31N
(Figure 4-2)
INSTALLATION
1. Park the work platform on firm level ground.
2. Verify both Emergency Stop Switches are ON.
3. Turn Chassis Key Switch to CHASSIS.
4. Position Chassis Lift Switch to UP and elevate
platform approximately nine (9) feet (2.7 m), leaving
enough room to freely rotate the Scissors Brace.
5. Pull out on the retaining pin and rotate the Scissors
Brace into vertical position.
6. Push Chassis Lift Switch to DOWN position and
gradually lower platform until the upper and lower
pivot pins rest on the Scissors Brace.
REMOVAL
1. Push Chassis Lift Switch to UP position and gradu-
ally raise platform until the Scissors Brace will clear
the pivot pins.
2. Rotate the Scissors Brace counterclockwise until it
locks into position parallel with the scissor arm.
3. Push Chassis Lift Switch to DOWN position and
completely lower platform.
Scissor Brace
Figure 4-2: Blocking the Elevating Assembly X31N
Retaining Pin
Sissor Brace
