Upright X Series Service & Parts Manual

X-Series Work Platform 4-11
Maintenance
Section

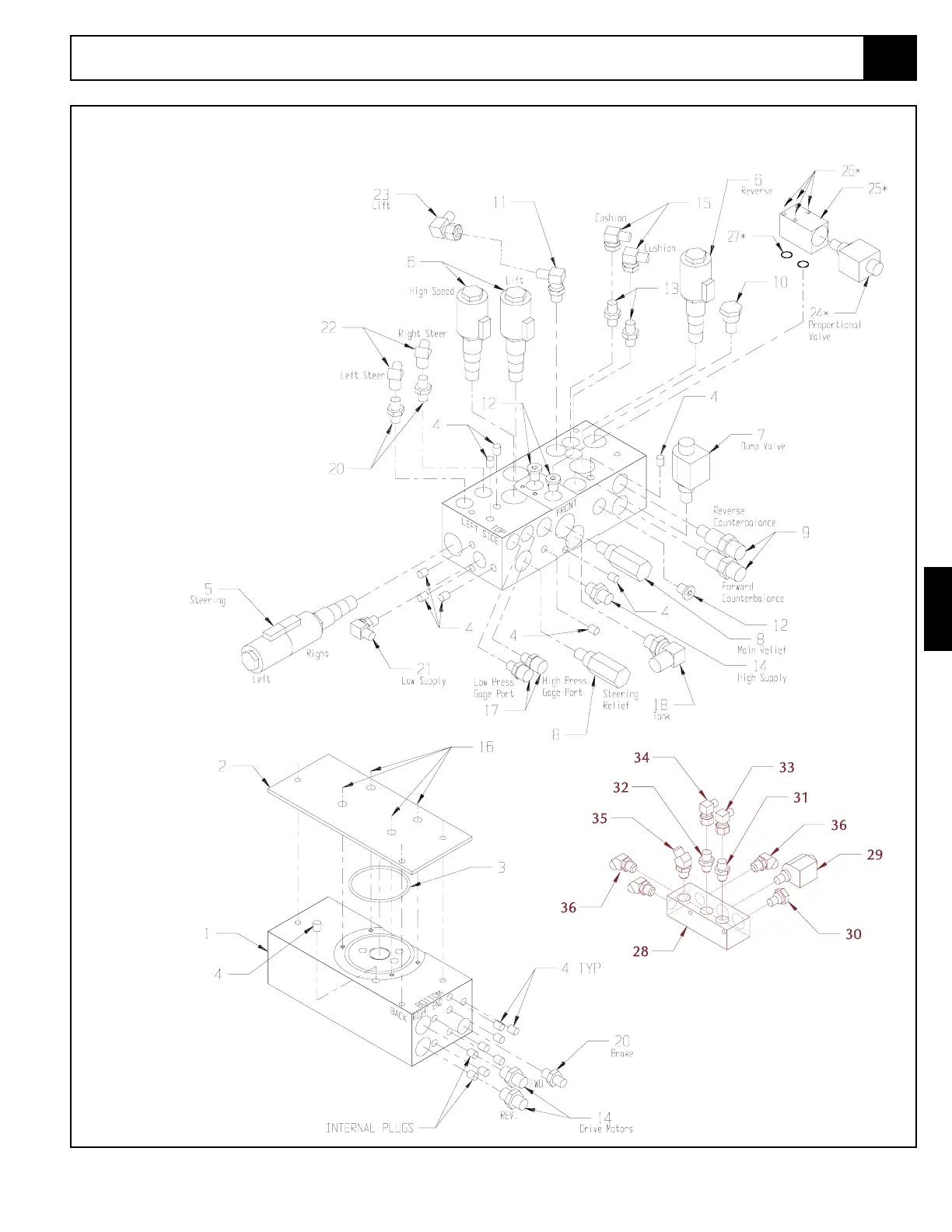

Figure 4-11: Hydraulic Manifold
1. Valve Block
2. Bottom Plate
3. O-Ring
4. Plug, 9mm Expander
5. Valve, Steering
6. Valve, Lift, High Speed & Reverse
7. Valve, Drive Dump
8. Valve, Main Relief & Valve,
Steering Relief
9. Valve, Counterbalance
10.Plug, Cavity
11.Fitting, 90° Elbow
12.Plug, #4
13.Fitting, Straight
14.Fitting, Straight
15.Fitting, 90° Elbow
16.Screw, Flat Hd Soc 10-24 X 5/8
17.Connector, Gauge
18.Fitting, 90° Elbow
20.Fitting, Straight
21.Fitting, 90° Elbow
22.Fitting, 45° Swivel
23.Fitting, 90° Elbow
24.Valve, Proportional*
25.Block, Proportional Valve*
26.Screw, Soc Hd Cap 10-24 x 2*
27.O-Ring*
28.Pot Hole
Valve Block
29.Valve
30.Valve, Check
31.Fitting Straight
32.Fitting Straight
33.Fitting, 90° Elbow
34.Fitting, 90° Elbow
35.Fitting, 90° Elbow
36.Fitting, 45° Elbow
4.7
* Optional Proportional Valve Only.
