Troubleshooting
12-50
Cassette 5 (Option)
If a paper jam occurs in cassette 5 when you are using the optional side feeder (3,000-sheet), side feeder (500-
sheet x 3), or large capacity side feeder (500, 1,500-sheet x 2), follow the steps below to remove the jam.
Side Feeder (3,000-sheet)

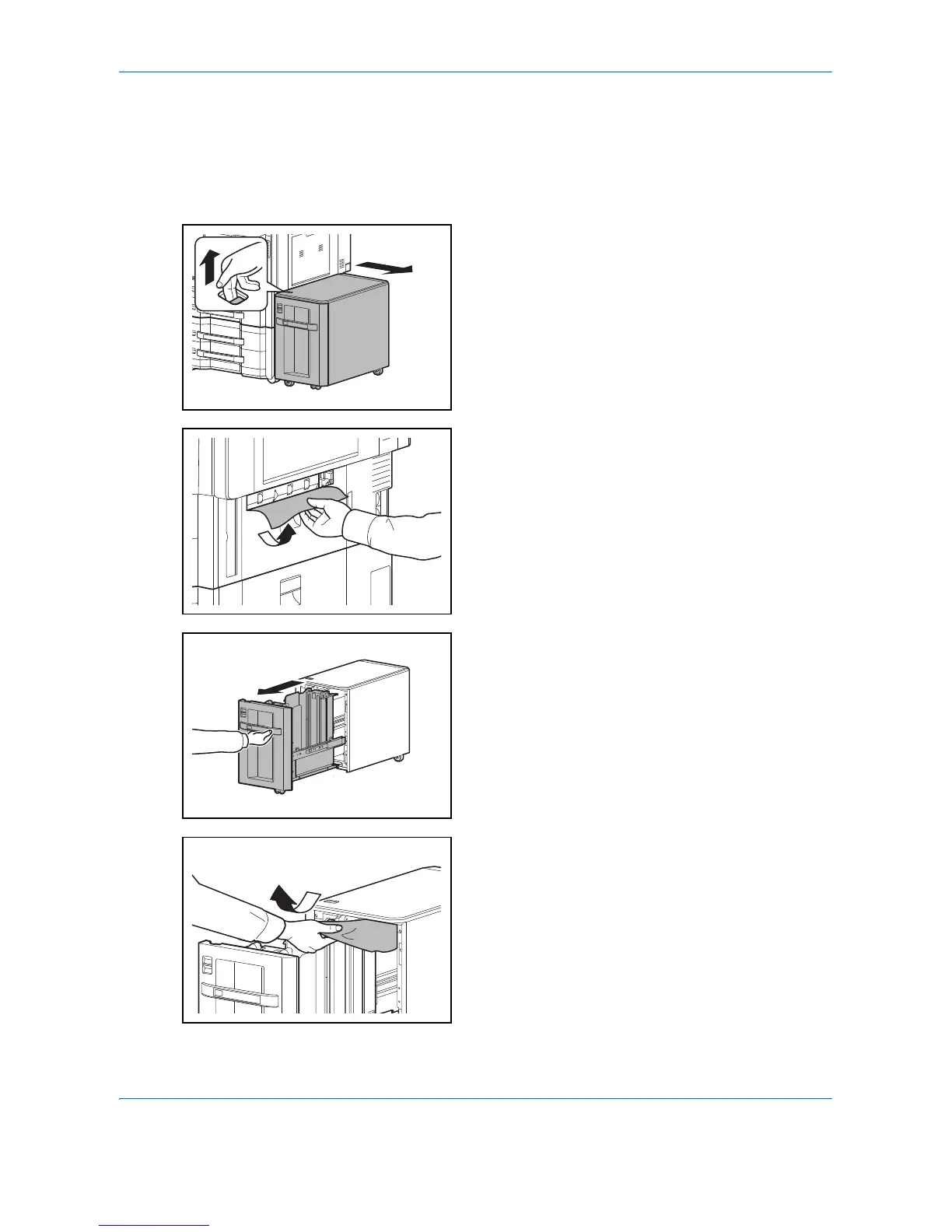

1 Pull up the release lever and separate the side
feeder from the multifunction machine.
2 Remove the paper from the connection port.
3 Pull out cassette 5.
4 Remove the jammed paper.
5 Push the cassette back in place securely.
6 Connect to the multifunction machine.
To Next Page
