vacon • 104 Control Keypad
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
6.3.8.5 Keypad settings
In the Keypad settings submenu under the System menu, you can further customise your Active
Front End operator interface.
Locate the Keypad setting submenu (S6.6). Under the submenu, there are four pages (P#)
associated with the keypad operation:

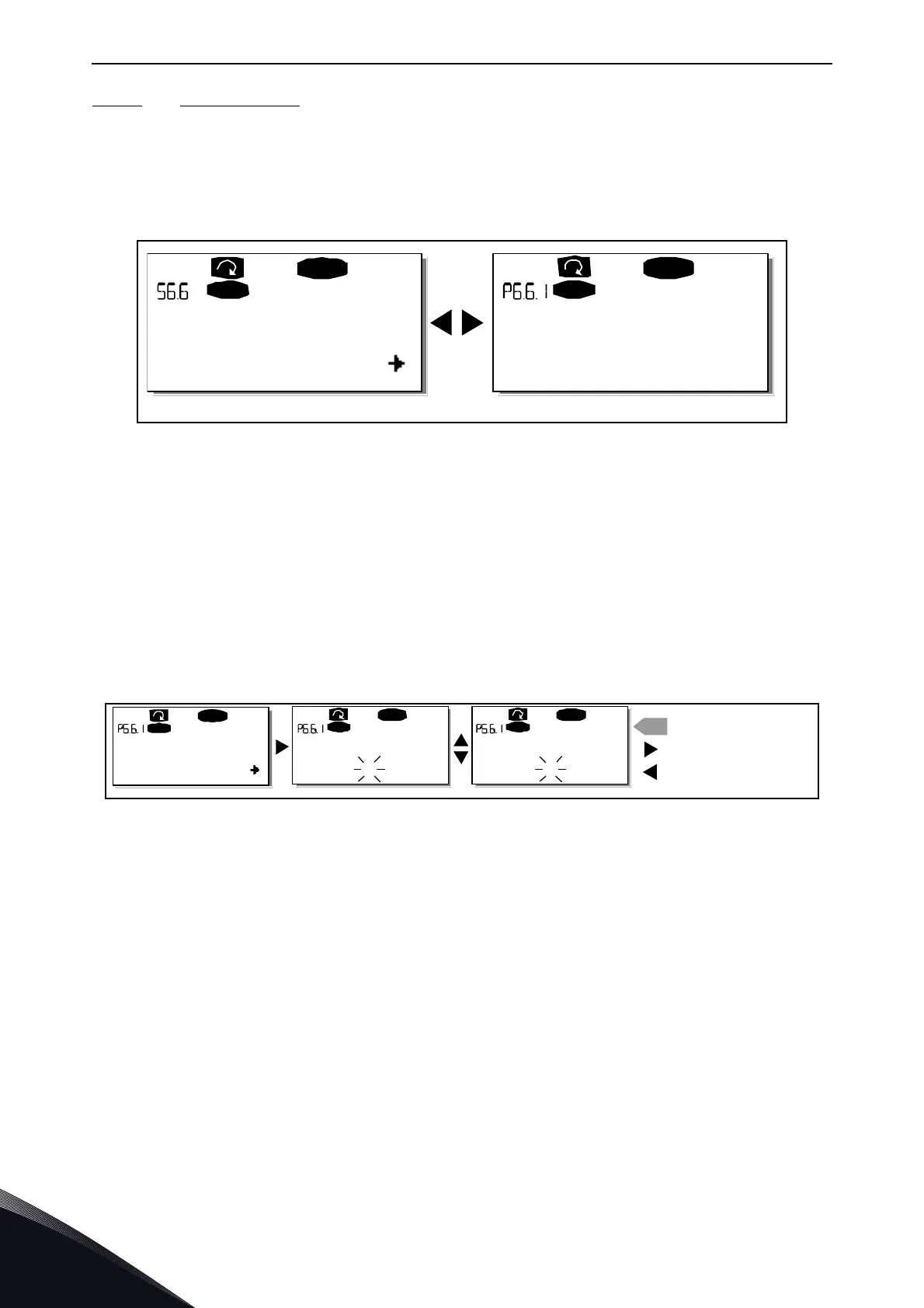

Figure 71. Keypad settings submenu
Default page (P6.6.1)
Here you can set the location (page) to which the display automatically moves when the Timeout
time (P6.6.3) (see Timeout time (P6.6.3)) has expired or the power is switched on to the keypad.
If the Default page is 0, the function is not activated i.e. the latest displayed page remains on the
keypad display. Pressing Menu button right takes you to the edit mode. Change the number of the
Main menu with the Browser buttons. To edit the number of the submenu/page, press Menu button
right. If the page you want to move to by default is at the third level, repeat the procedure. Confirm
the new default page with the Enter button. You can return to the previous menu at any time by
pressing Menu button left.
Figure 72. Default page function
Default page in the operating menu (P6.6.2)
Here you can set the location (page) in the Operating menu (in special applications only) to which
the display automatically moves to when the set Timeout time (P6.6.3) (see Timeout time (P6.6.3))
has expired or the power is switched on to the keypad.
See how to set the Default page (Figure 72).
Timeout time (P6.6.3)
The Timeout time setting defines the time after which the keypad display returns to the Default page
(P6.6.1). (See Default page (P6.6.1))
Enter the edit mode by pressing Menu button right. Set the desired timeout time and confirm it with
the Enter button. You can return to the previous menu at any time by pressing Menu button left.
P1  P5
READY
I/Oterm
0.
READY
I/Oterm
Keypad s e ttings
De f ault page
11194.emf
0.
READY
I/Oterm
READY
I/Oterm
READY
I/Oterm
0.
1.
enter
Default page
REPEATTO SET
DEFAULTSUBMENU/PAG
E
CANCEL
Defa u lt pageDefa u lt page
CONFIRM CHANGE
11195.emf
