REVO-E Heat pump 3 Assemblies and components
3.4 Cable harnesses overview (high-voltage / low-voltage) in the REVO-E HP

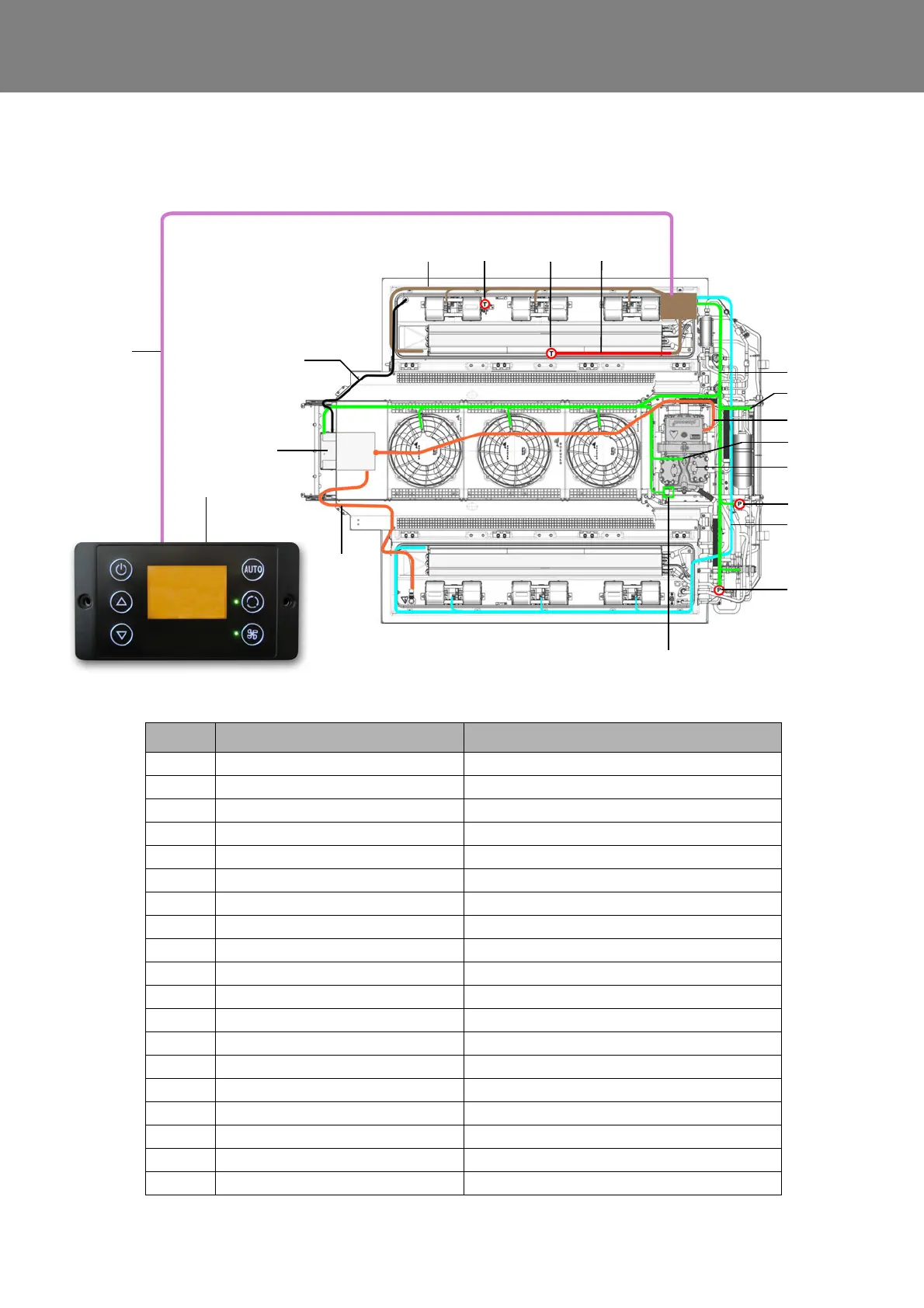

Fig. 4 Cable harnesses overview (high-voltage / low-voltage) in the REVO-E HP
Item Description Remarks
1 wiring harness incl. connection board 24V interface ADA
2 temperature sensor blow out temperature
3 temperature sensor passenger compartment temperature
4 wiring harness temperature sensor passenger compartment
5 wiring harness axial fan, 4-way reversing valve
6 solenoid valve hot gas deicing in 11123865_ only
7 wiring harness kit, 400V AC frequency converter
8 PE connection compressor
9 compressor
10 suction pressure sensor
11 wiring harness double radial fan
12 high pressure sensor
13a high pressure safety switch
13b low pressure safety switch not in 11123865_
14 wiring harness, 600V DC HV interface, vehicle - frequency converter
15 frequency converter 600V DC -> 3x400V AC
16 diagnostic cable frequency converter
17 wiring harness control unit SC620 to ADA
18 SC620 control device installed in Volvo E bus
18
14
4321
5
6
7
17
8
9
10
15
11
12
13a/13b
16
