REVO-E Heat pump 9 Removal/ installation of components
9.8 Recirculating air flap actuator motor
removal/ installation
9.8.1 Remove the actuator motor
• Disconnect electric connection to the motor by
removing the plug.
• Remove 3 nuts that were attached to damper motor
and remove damper motor (1, Fig. 907).
9.8.2 Install the actuator motor
• Place the motor into the location of installation and
attach with 3 nuts (1, Fig. 907).
• Reconnect electric connection to the motor / insert
plug.
9.9 Temperature sensor (duct / recircula-
ting air suction) removal/ installation
Position: to the right side before the first double radial
blower.
9.9.1 Remove the duct temperature sensor
(blow-out temperature)
Position: to the right side before the first double radial
blower (1, Fig. 908).
• Loosen electrical connection on the plug.
• Unscrew sensor from holder.
9.9.2 Install the duct temperature sensor (blow-
out temperature)
• Screw sensor to holder.
• Reconnect electrical connection on the plug.
9.9.3 Remove the recirculating air suction tem-
perature sensor (passenger compartment)
Position: in middle, right recirculating air suction inside of
air-conditioning system (2, Fig. 908).
• Remove fresh air filter, see 7.4.1.
• Loosen electrical connection on the plug.
• Unscrew sensor from holder.
9.9.4 Install the recirculating air suction tem-
perature sensor (passenger compartment)
• Screw sensor to holder.
• Reconnect electrical connection on the plug.
• Insert fresh air filter, see 7.4.1.

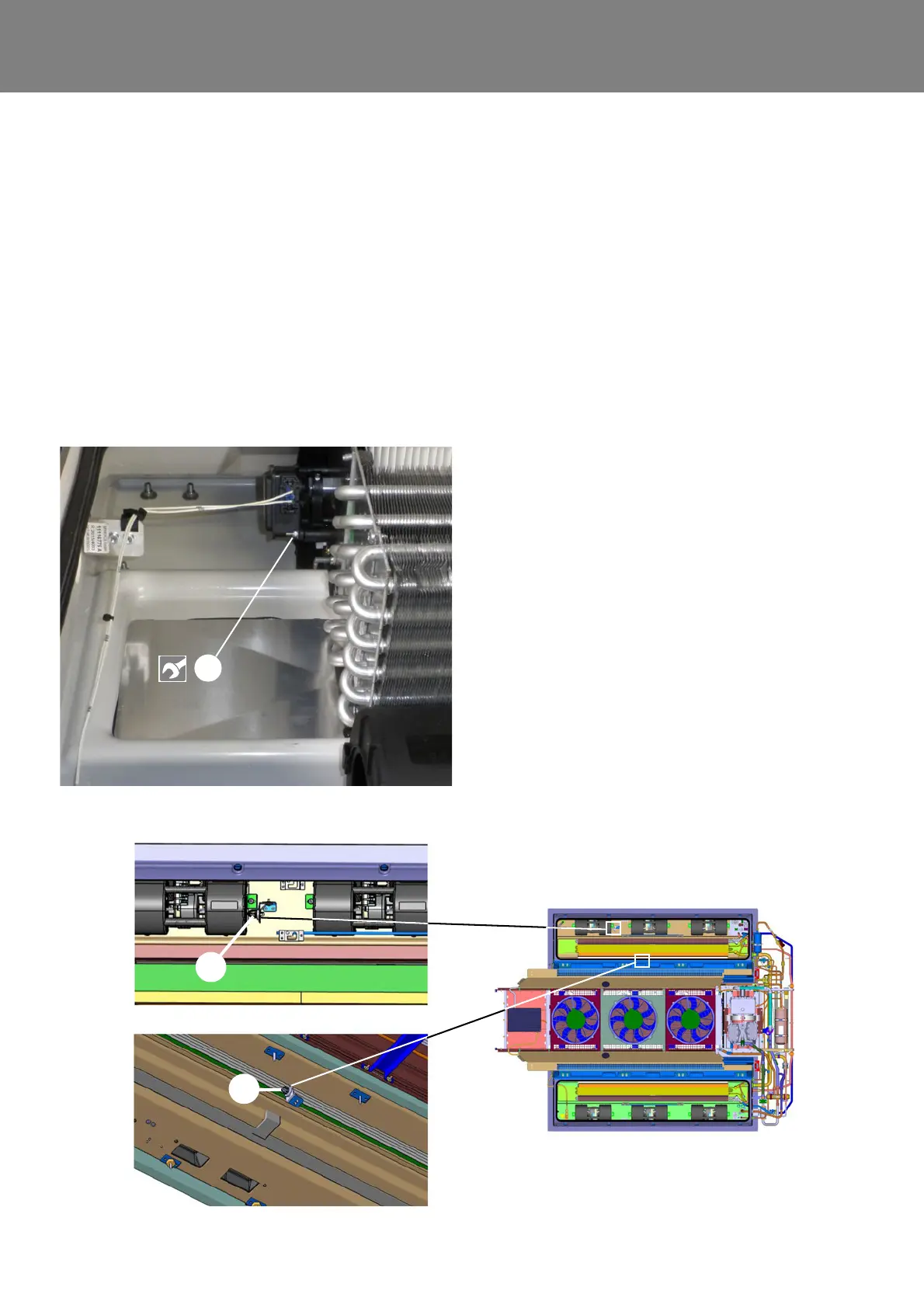

Fig. 907
1
Fig. 908
1
2
1 - Temperature sensor, blow-out temperature
2 - Temperature sensor, passenger compartment
