Valeo REVO-E - Attachment a

A-1
REVO-E Attachment
Attachment A

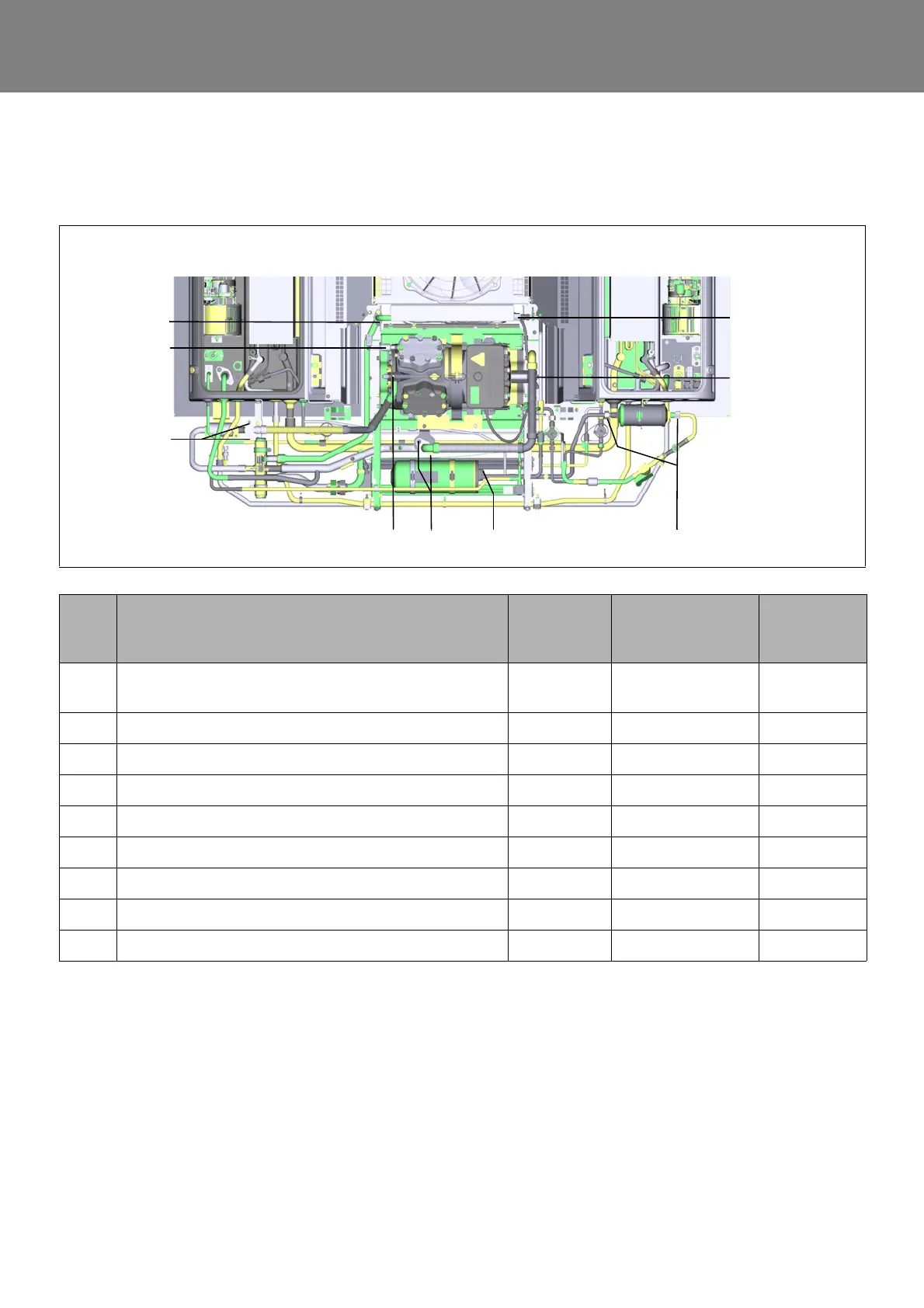

Tightening torques / Sealings
9
1
2
3
4
5
6
7 8
Item Designation Tightening
torque
in Nm
Sealing
(R134a-resistant)
Valeo ID
1 union nut, pressure guard, low pressure guard (as per
11120816_) not shown
8 ± 10% - -
2 screw M8x50, pressure line compressor 34 ± 10% flange seal oval 11117795A
3 screw M10x110, suction gas line compressor 50 ± 10% flange seal oval 11117795A
4 union nut SW27, outer heat exchanger 25 ± 10% O-ring 14 x 1,78 80641A
5 union nut SW27, filter drier 40 ± 10% O-ring 14 x 1,78 80641A
6 screw M6x50 9 ± 10% O-ring 26 x 2 69052A
7 nut M10, attachment suction gas line 25 ± 10% flange seal round 24632A
8 SMA connection receiver 9 ± 10% O-ring 11 x 2,5 11117038A
9 screw M8x50, outer heat exchanger 34 ± 10% flange seal round 11121059A
