Valeo REVO-E - Page 86

A-2

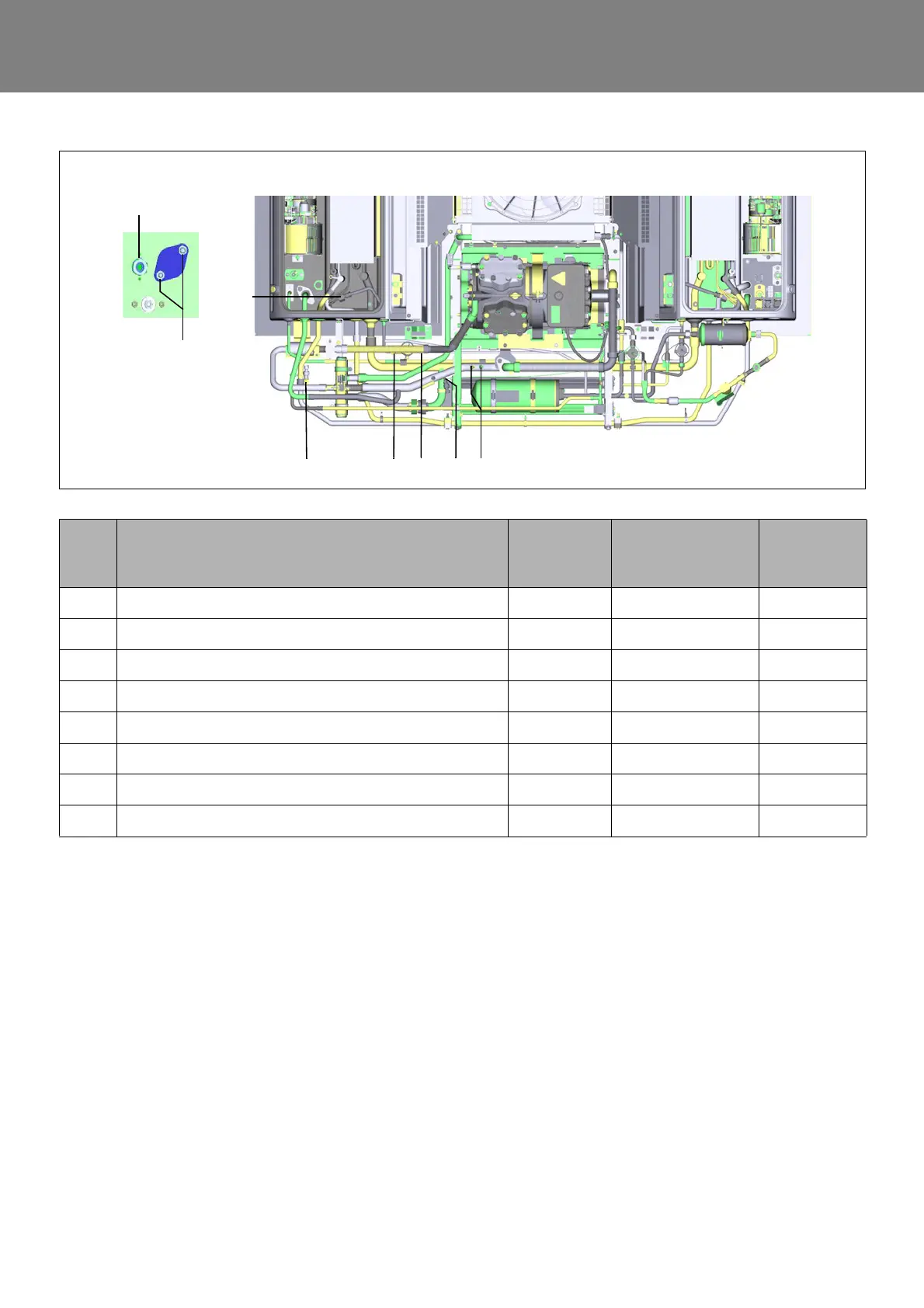

REVO-E Attachment
10 111213
14
15
16
17
Item Designation Tightening
torque
in Nm
Sealing
(R134a-resistant)
Valeo ID
10 union nut SW19, expansion valve inlet 17 ± 10% O-ring 7,65 x 1,78 80812A
11 union nut SW17, expansion valve compensation line 10 ± 10% O-ring 4,48 x 1,78 1103522B
12 union nut SW22, expansion valve outlet 25 ± 10% O-ring 10,6 x 1,78 80640A
13 union nut SW14, sensor high pressure 10 ± 10% O-ring 7,65 x 1,78 80812A
14 union nut SW27, liquid line front box 17 ± 10% O-ring 14 x 1,78 80641A
15 nut M10, lid suction gas line front box 50 ± 10% flange seal round 24632A
16 union nut SW27, inner heat exchanger 25 ± 10% O-ring 10,6x1,78 80640A
17 union nut SW16, sensor suction pressure 10 ± 10% - -
