Valeo REVO-E - Install the 400 V AC cable

809
REVO-E Heat pump 8 Removal/ installation of components (high-volt. syst.)
8.5.4 Install the 400V AC cable
• Replace the plug-in holder for the 400V AC cable to
the crossbars (Fig. 817).
• Screw on the mounting plate of the frequency
converter (Fig. 816).
• Lay the 400V AC cable according to Fig. 815 and Fig.
817 and attach to the traverses and compressor pan.
ATTENTION:
The cable cannot touch any sharp edges - abra-
sion hazard!
• Connect the 400V AC cable to the compressor (see
6.5).
• Install the condenser (see 9.4).

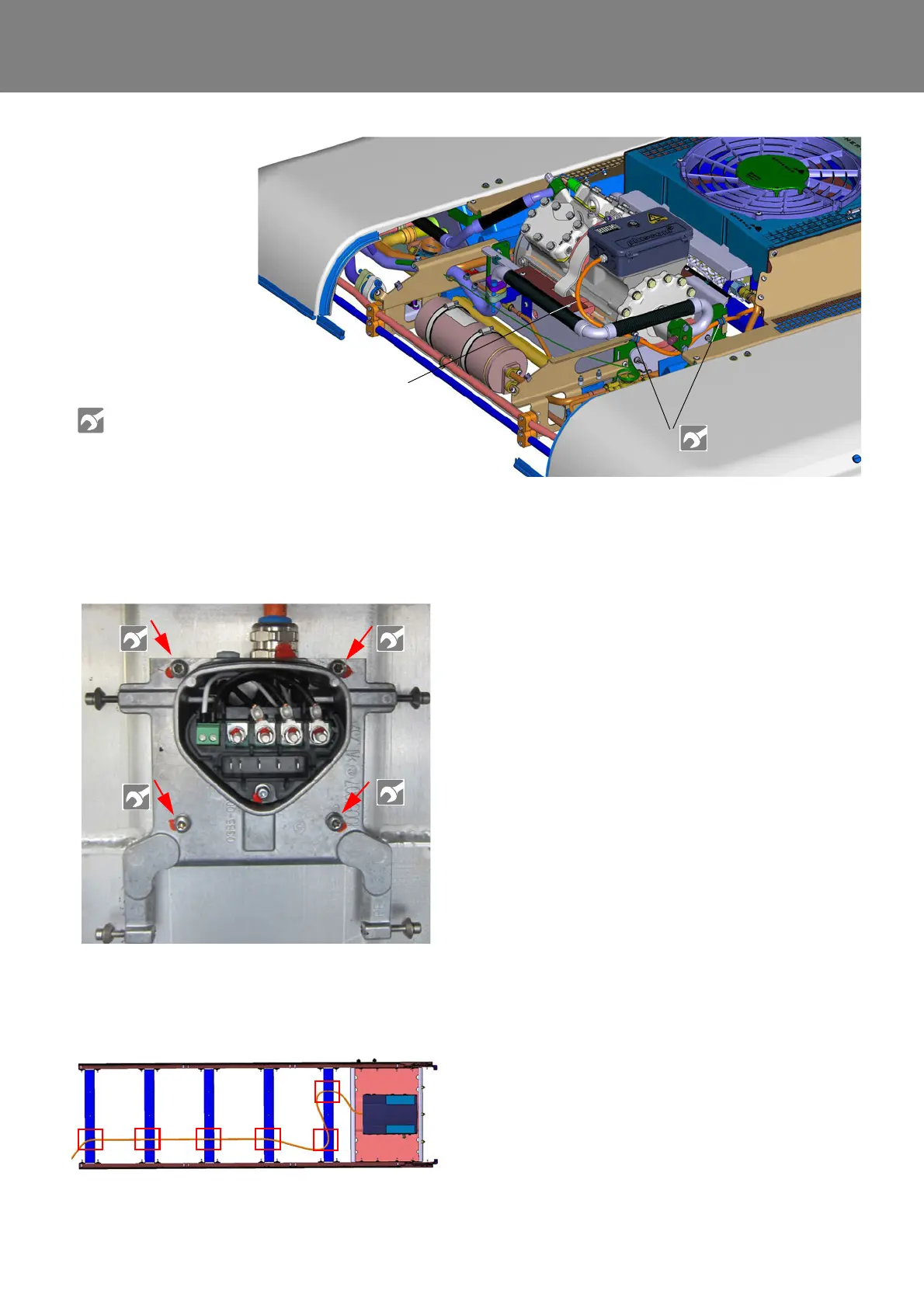

Fig. 815 (exemplarily)
2
1
1 400V AC cable
2 Clamps for 400V AC cable
See torque table
Attachment A
Fig. 816 Screws of the mounting plate
Fig. 817 Moving the 400V AC cable with fixing points
