REVO-E Heat pump 4 Function and functional schematics
4.4.6 Operating Mode De-Icing)
(Version HP+ only)
Requirements:
– Start of Heat Pump Mode or 1h Heat Pump Mode op-
eration
– Environmental temperature ≥ -5°C (REVO-E HP+)
– no frequency converter or compressor errors
– no low-voltage error
– Terminal 15 active
– Vehicle hybrid system active
– HVAC power consumption enabled by
“D_AuxiliaryPowerEnabled” signal
– no HVIL error
– ∆T temperature passenger compartment > 0K
– SC620 CAN message “heat pump available“ to BEA
body
– “D_CabinHeatpumpReq” signal sent by BEA body.

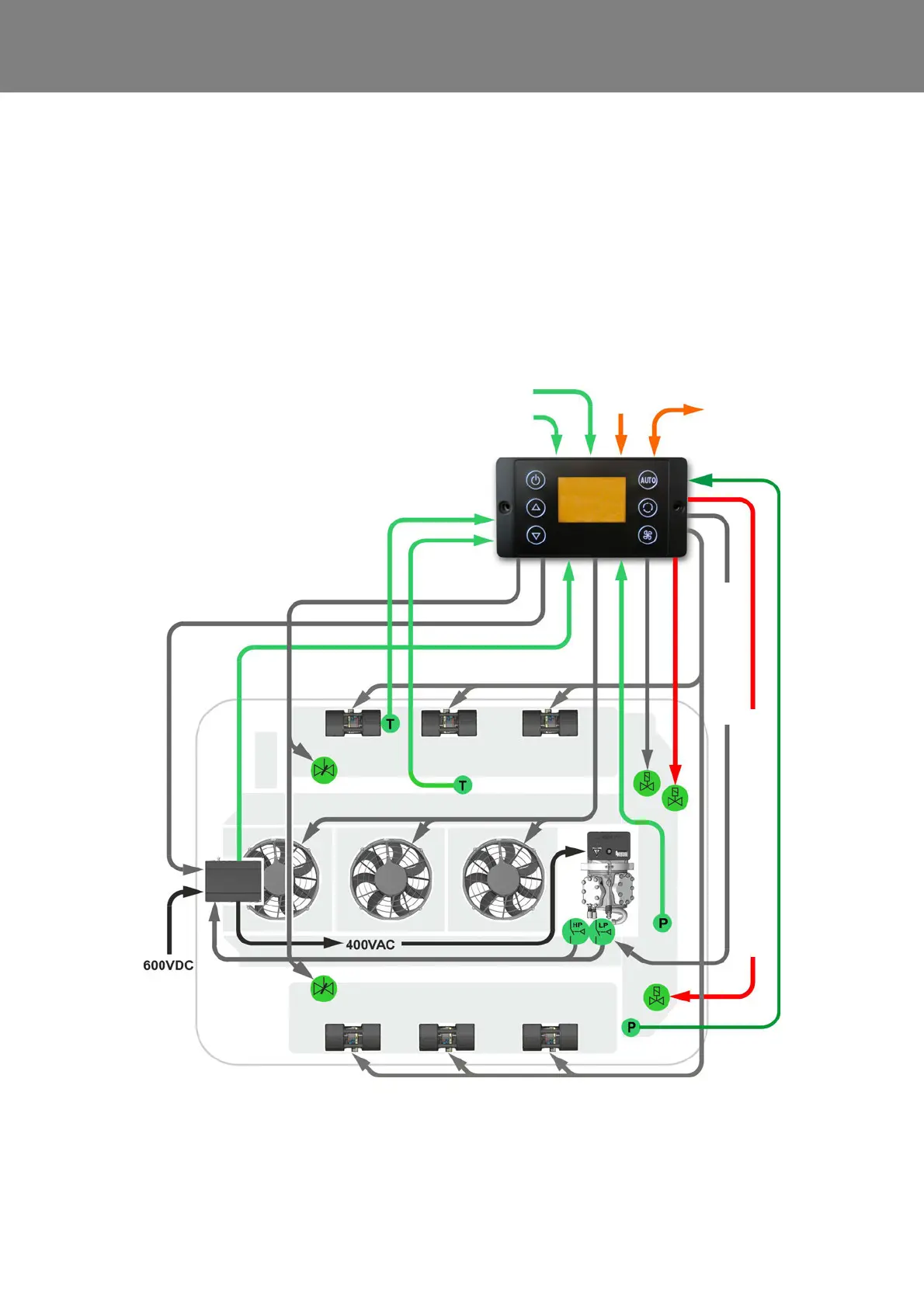

Fig. 408 Operating Mode De-Icing
Analog input
HVIL 1 voltage
Analog input
HVIL 2 voltage
CAN interface
vehicle
SC620
Sensor
blow-out
temperature
Sensor
pass. comp.
temperature
Double radial blower
Speed
Compressor
Fresh air
flaps actuator
Double radial blower
Axial fans
Frequency
converter
Fresh air
flaps
actuator
active
Compressor activate
4
5
1
2
3
6
7
1 Solenoid valve
2 Solenoid valve HGA / actu-
ator (in 11123865_only)
3 Suction pressure sensor
4 High pressure safety switch
5 Low pressure safety switch
(not in 11123865_)
6 4-way reversing valve
7 High pressure sensor
24V
4-way reversing valve works as actuator
