2.24 Inverse time operation
2 Protection functions
Technical description
138
VAMP 24h support phone +358 (0)20 753 3264
VM259.EN007

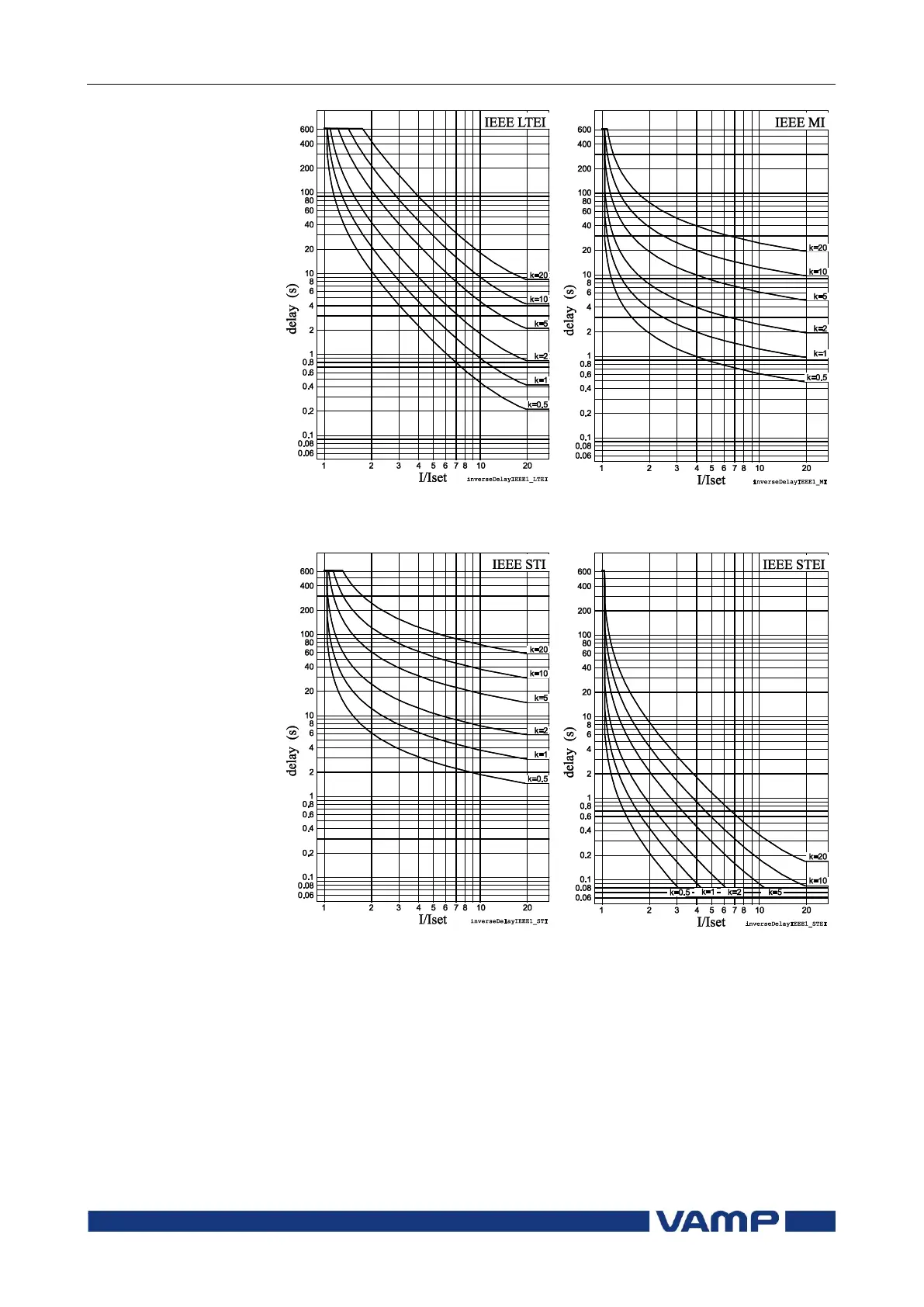

Figure 2.24.1-7 ANSI/IEEE long
time extremely inverse delay
Figure 2.24.1-8 ANSI/IEEE
moderately inverse delay
Figure 2.24.1-9 ANSI/IEEE short
time inverse delay
Figure 2.24.1-10 ANSI/IEEE short
time extremely inverse delay
