8.8. Block diagrams of option modules
8.8.1. Optional arc protection

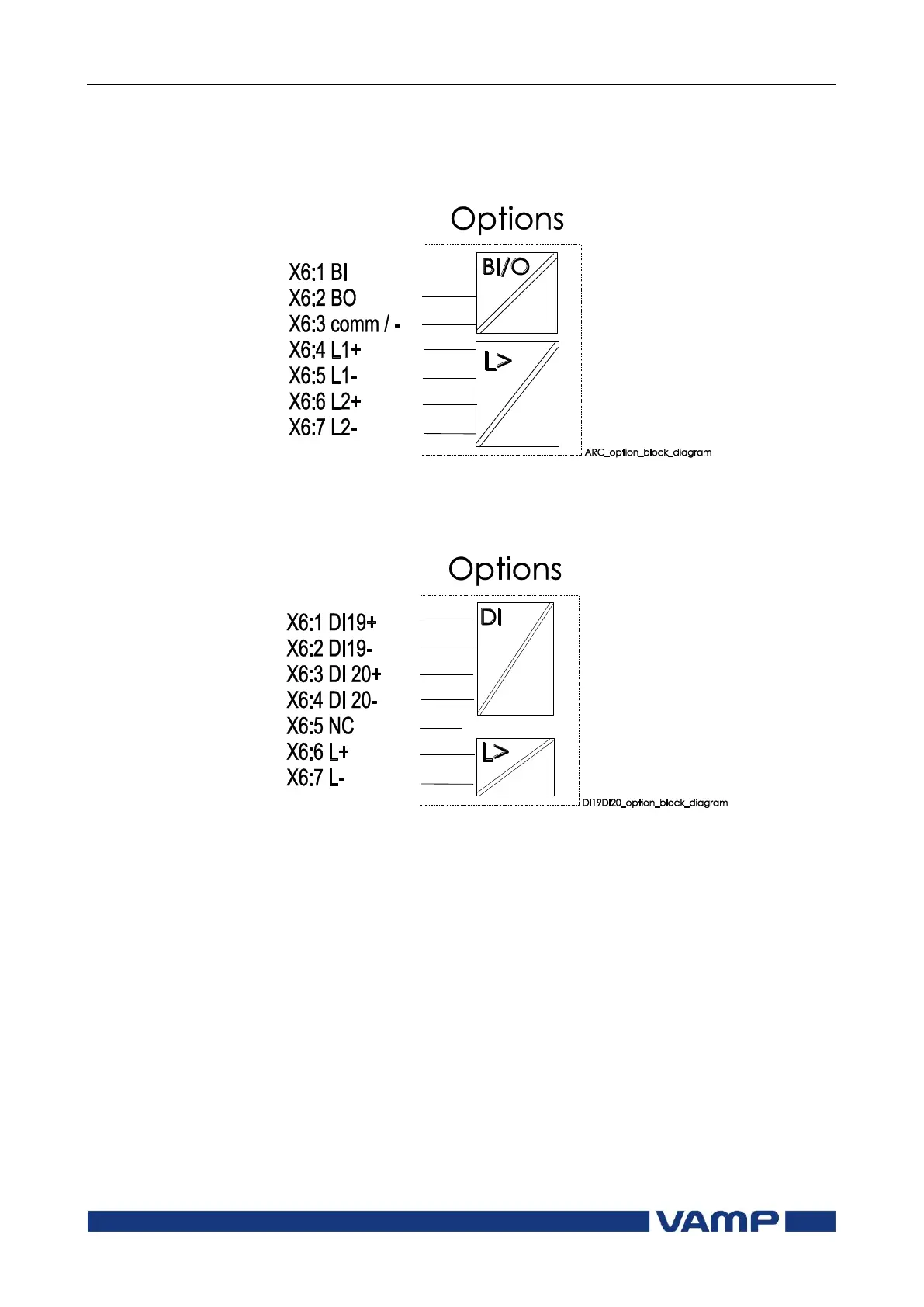

Figure 8.8.1-1 Block diagram of optional arc protection module.
8.8.2. Optional DI19/DI20
Figure 8.8.2-1 Block diagram of optional DI19/DI20 module with one arc
channel.
