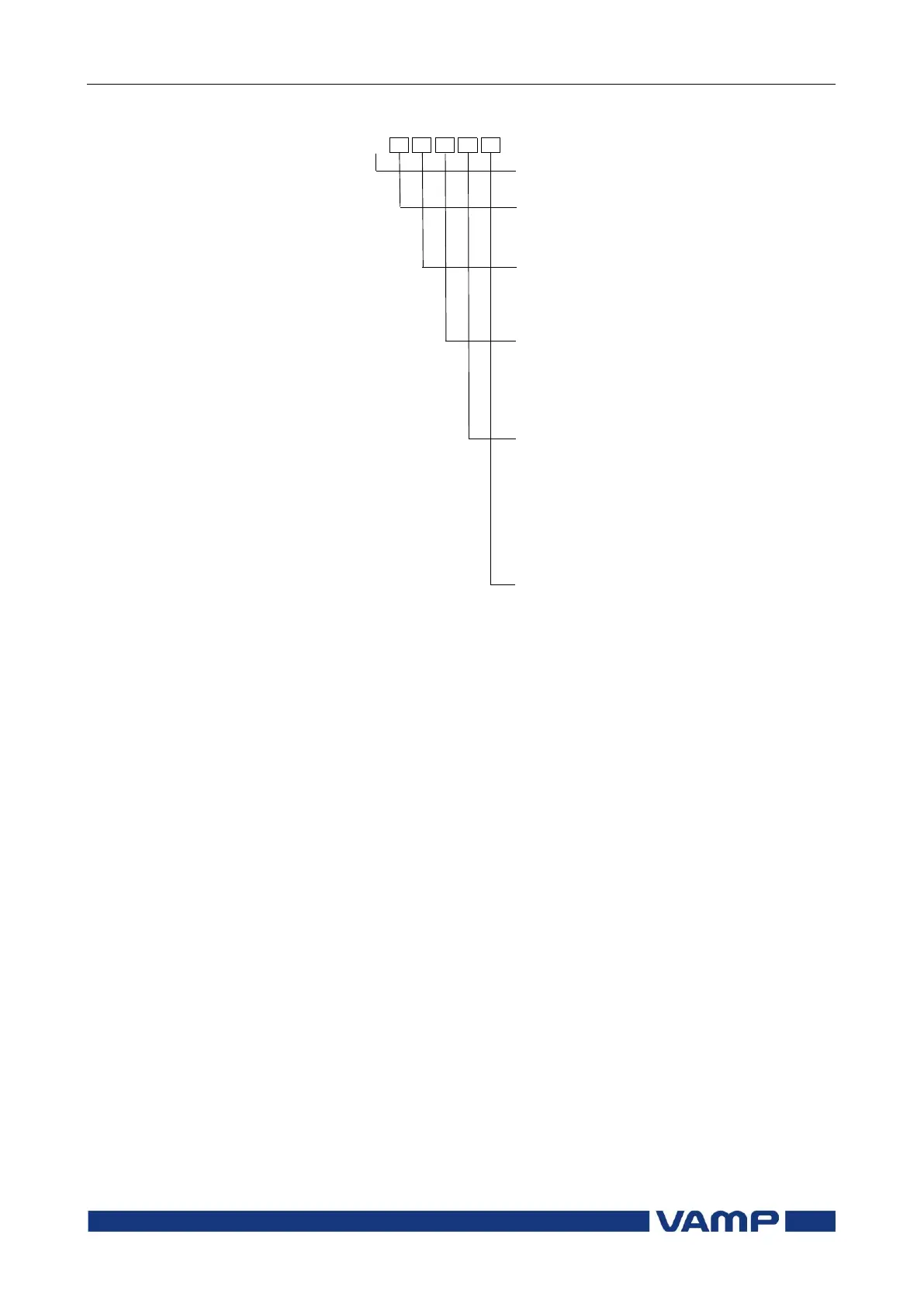

DI7-18 nominal activation voltage
4 = Standard (24 Vdc)
Nominal earth-fault current Io1 [A]
B = 5A
C = 1A
D = 0.2A
Additional I/O (X8 terminal)
6 = None
7 = 8 standard inputs, 4 TCS Hybrid inputs/outputs
8 = 10 outputs
9 = 8 standard inputs and 4 outputs
Supply voltage [V]
A = 40.. 265Vac/dc
B = 18.. 36Vdc
C = 40.. 265Vac/dc + ARC Protection
D = 18.. 36Vdc + ARC Protection
E = 40.. 265Vac/dc + DI19, DI20 Optional
F = 18.. 36Vdc + DI19, DI20 Optional
Optional hardware (communication port 1)
A = TTL/RS-232 (VCM TTL)
B = Plastic/Plastic serial fibre interface (VCM FIBRE PP)
C = N/A
D = RS 485 interface (4-wire, VCM 485-4)
E = Glass/Glass serial fibre interface (VCM FIBRE GG)
F = Rx Plastic/Tx Glass serial fibre interface (VCM FIBRE PG)
G = Rx Glass/Tx Plastic serial fibre interface (VCM FIBRE GP)
I = RS 232 with RJ-45 connector (VCM 232)
M = ST 100Mbps ethernet fibre interface with IEC 61850
N = RTD interface (Glass fibre, VCM RTD)
Optional hardware (communication port 2)
A = None
C = RS 232 with RJ-45 connector (VCM 232)
D = RS-485 interface (2-wire, VCM 485-2)
L = RJ-45 10Mbps ethernet interface(1
M = RJ-45 10Mbps ethernet interface with IEC 61850(1
N = RTD interface (Glass fibre, VCM RTD)
Note:
(1 NOT possible to order in combination w ith the following optional communication module 1: (M) ST 100Mbps ethernet fibre interface with IEC 61850
(1 NOT yet selectable
Accessories :
Order Code Explanation Note
VEA3CGi External ethernet interface module
VPA3CG Profibus interface module
VSE001 Fiber optic Interface Module
VSE002 RS485 Interface Module
VX003-3 RS232 programming cable (Vampset, VEA 3CGi) Cable length 3m
VX004-M3 TTL/RS232 converter cable (PLC, VEA 3CGi) Cable length 3m
VX007-F3 TTL/RS232 converter cable (VPA 3CG) Cable length 3m
VX048 RS232 (COM1=A) converter cable for MOXA TCF-90 (remote port) Cable length 3m
VX055 RJ45 (COM1=I or COM2=C) converter cable for MOXA TCF-90 Cable length 3m
VX056 RJ45 (COM1=I or COM2=C) converter cable for MOXA TCF-142-S-ST Cable length 3m
3P0142 MOXA TCF-90
3P022 MOXA TCF-142-S-ST
VA 1 DA-6 Arc Sensor Cable length 6m
VYX076 Raising Frame for 200-serie Height 40mm
VYX077 Raising Frame for 200-serie Height 60mm
Available option-cards possible to be ordered separately:
Order Code Explanation Note
VCM TCP RJ45 10Mbps ethernet interface Not inbuilt
VCM 485-4 RS 485 interface (4 wire)
VCM 485-2 RS 485 interface (2 wire)
VCM FIBRE PP Serial fibre interface (Plastic/Plastic)
VCM FIBRE GG Serial fibre interface (Glass/Glass)
VCM FIBRE PG
