6. Communication
6.1. Communication ports
The device has three communication ports as standard.
A fourth port, Ethernet, is available as an option. When this
option is chosen, it will take over communication option 2 slot.
There can be up to three communication ports in the rear
panel. The front panel RS-232 port will shut off the local port
on the rear panel when a VX003 cable is inserted. See Figure
6.1-1 and chapter 8.

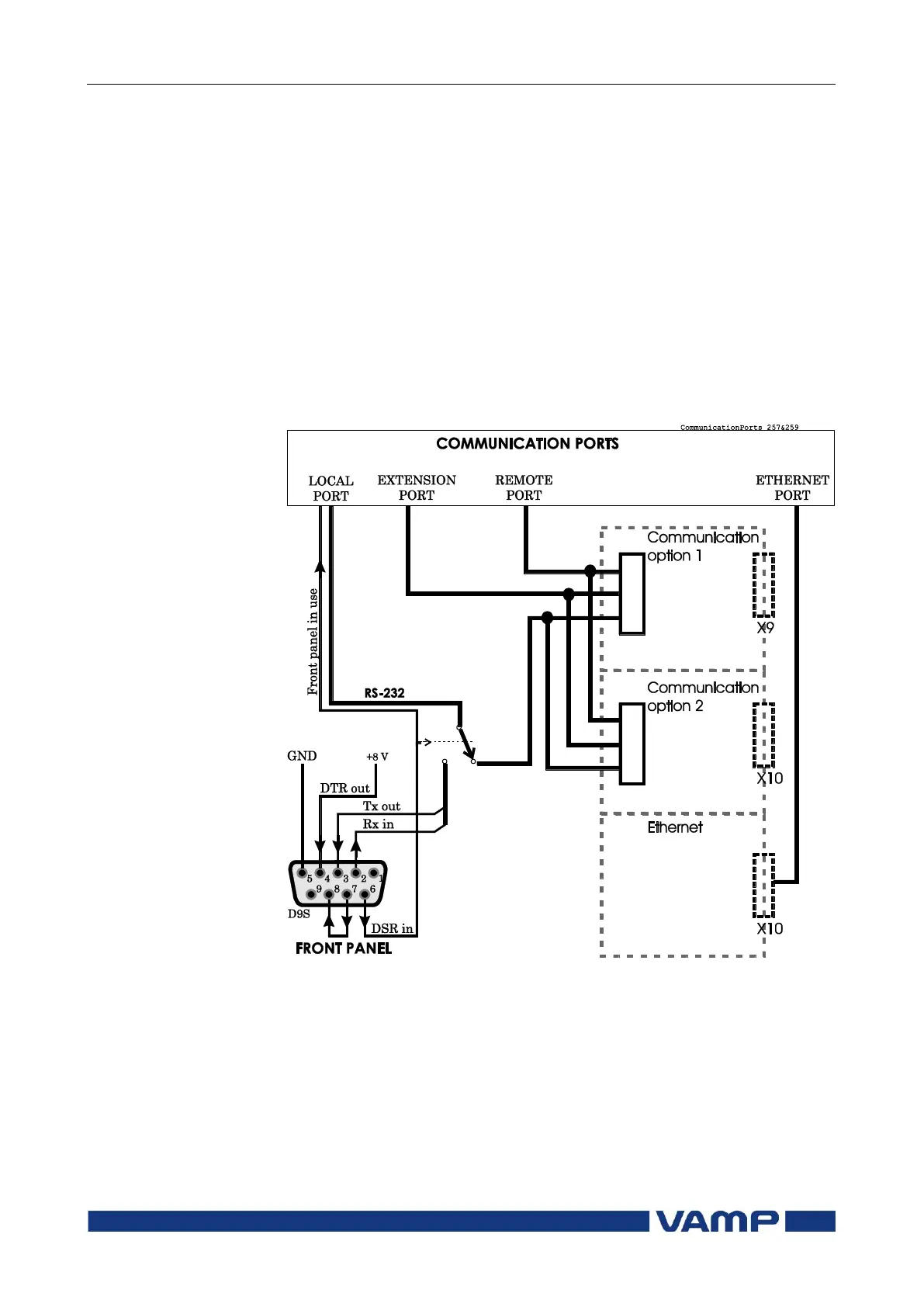

Figure 6.1-1. Communication ports and connectors. The type of connectors
X9 or X10 depends on the type of the communication option (see chapter 8).
