Second menu of I>> 50/51 stage

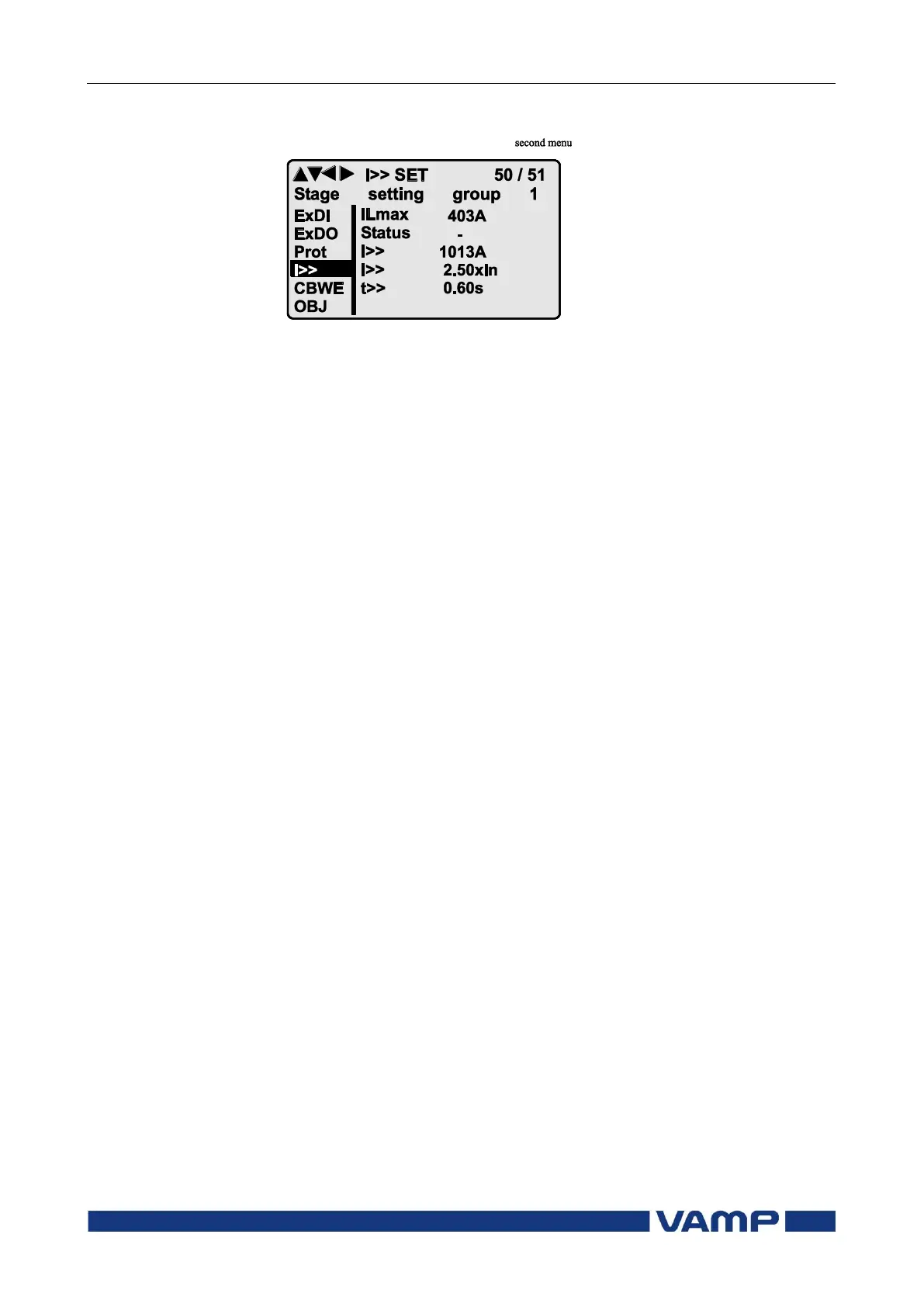

Figure 2.2.2-2. Second menu (next on the right) of I>> 50/51 stage
This is the main setting menu. The content is:

Stage setting group 1
These are the group 1 setting values. The other setting group can be
seen by pressing push buttons ENTER and then RIGHT or LEFT.
Setting groups are explained in chapter 2.2.3.

ILmax 403A
The maximum of the three measured phase currents is at the moment
403 A. This is the value the stage is supervising.

Status –
Status of the stage. This is just a copy of the status value in the first
menu.

I>> 1013 A
The pick-up limit is 1013 A in primary value.

I>> 2.50xIn
The pick-up limit is 2.50 times the rated current of the CT or motor
depending on the application mode in use. This value can be edited if
the operating level is at least "Operator". Operating levels are
explained in chapter 2.2.5.

t>> 0.60s
The total operation delay is set to 600 ms. This value can be edited if
the operating level is at least "Operator".
