8.3 Serial communication connection
VAMP 24h support phone +358 (0)20 753 3264

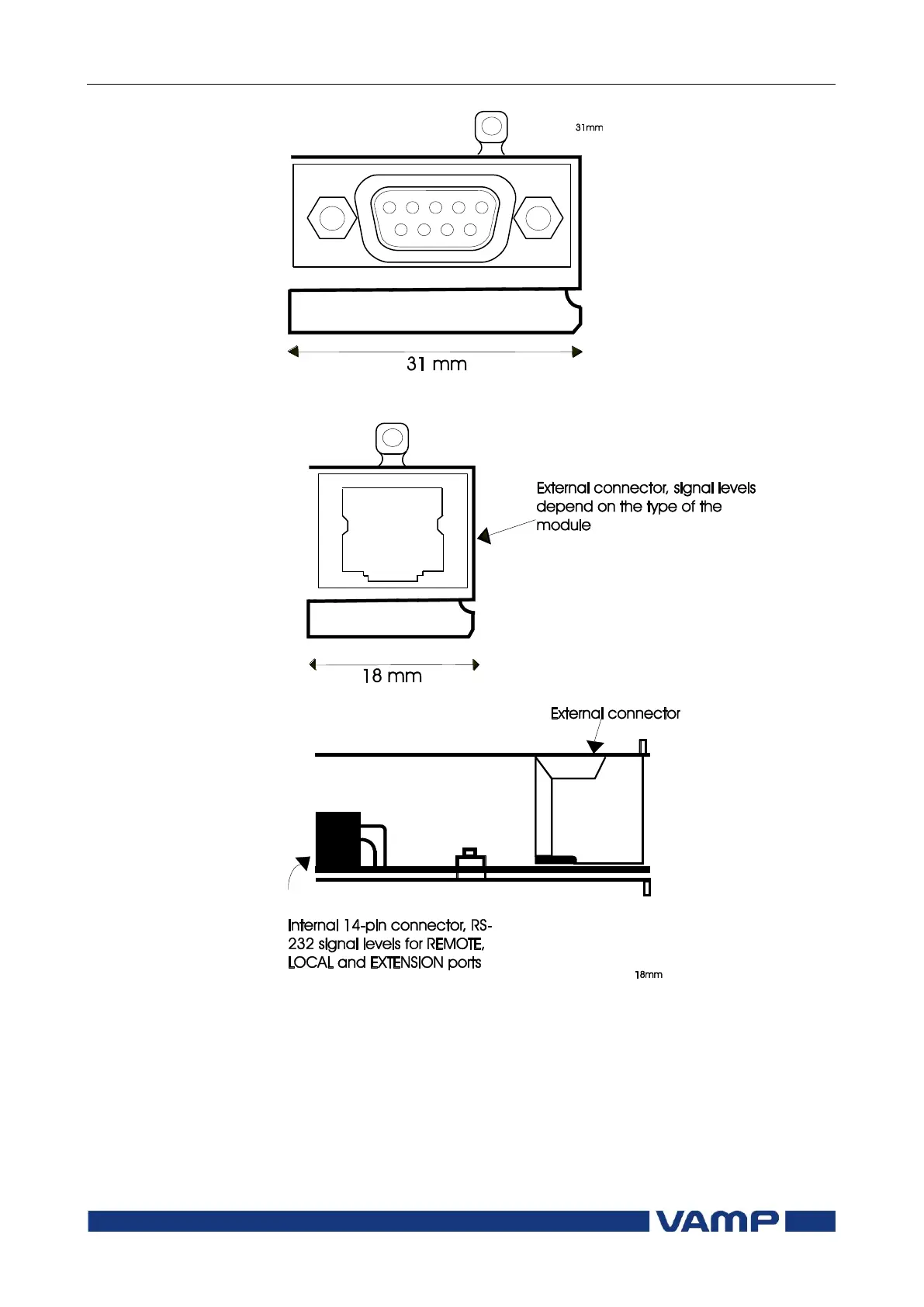

Figure 8.3-3 Communication module with a height of 31mm
Figure 8.3-4 Communication module with a height of 18mm
The device has a 31mm high ―slot‖ for Communication option 1
and 18mm high ―slot‖ for Communication option 2. The option
modules are either 31mm or 18mm high, the 18mm modules
can be used either in the 31mm or 18mm slot.
