8.9 Connection examples
8 Connections
Technical description
276
VAMP 24h support phone +358 (0)20 753 3264
VM259.EN007

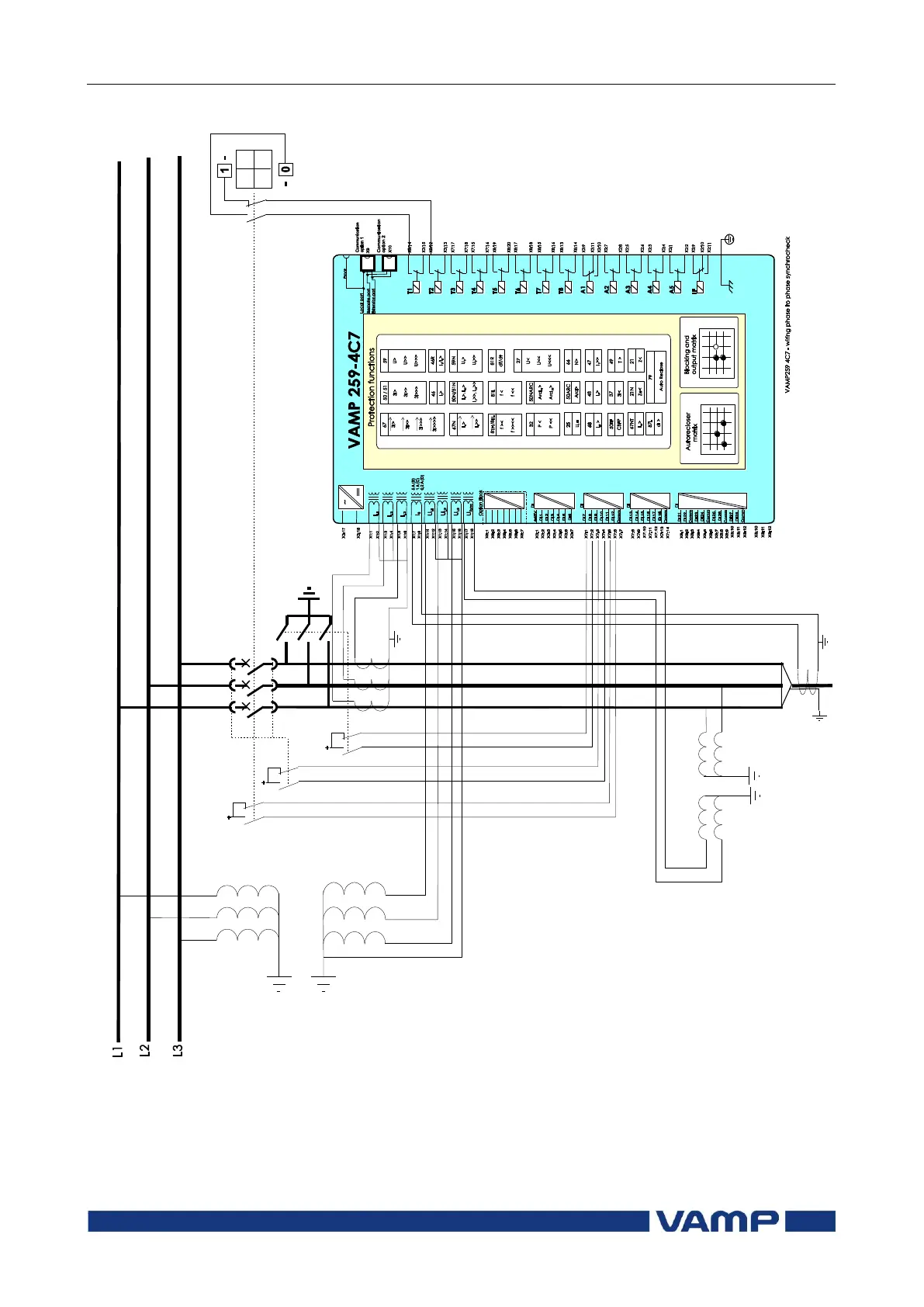

Figure 8.9-2 Connection example of VAMP 259-4C7 with a synchrocheck
function from phase to phase voltage. The voltage measurement mode is set
to ―3LN/LLy‖.
