4. Data type of pressure and position values (optional)
The «data type of pressure and position» can be configured by ‘Control View’, ‘Control Performance
Analyzer’, or ‘Universal Hyper Terminal’.
The «set-command» is: «s:23xxy00000». The xxy value is the data type of a pressure and position
signal.
y: 0 = signed integer(32 bit), 1 = floating point (32 bit, IEEE-754 standard), default = 0
xx: signal number in the buffer
xx
Value
00 Pressure
01 Pressure sensor 1
02
Pressure sensor 2 (optional, only in case of 2 sensor version)
03 Position
04
Not used
–
reserved
05
Not used – reserved
06 Pressure setpoint
07
Position setpoint
08
Not used – reserved
09
Not
used
–
reserved
10
Not used – reserved
11
Not used – reserved
The «get-command» is: «i:23xx». The answer returns the data type of a pressure and position signal 
«i:23xxy00000». The y value is the current data type of buffer value xx.

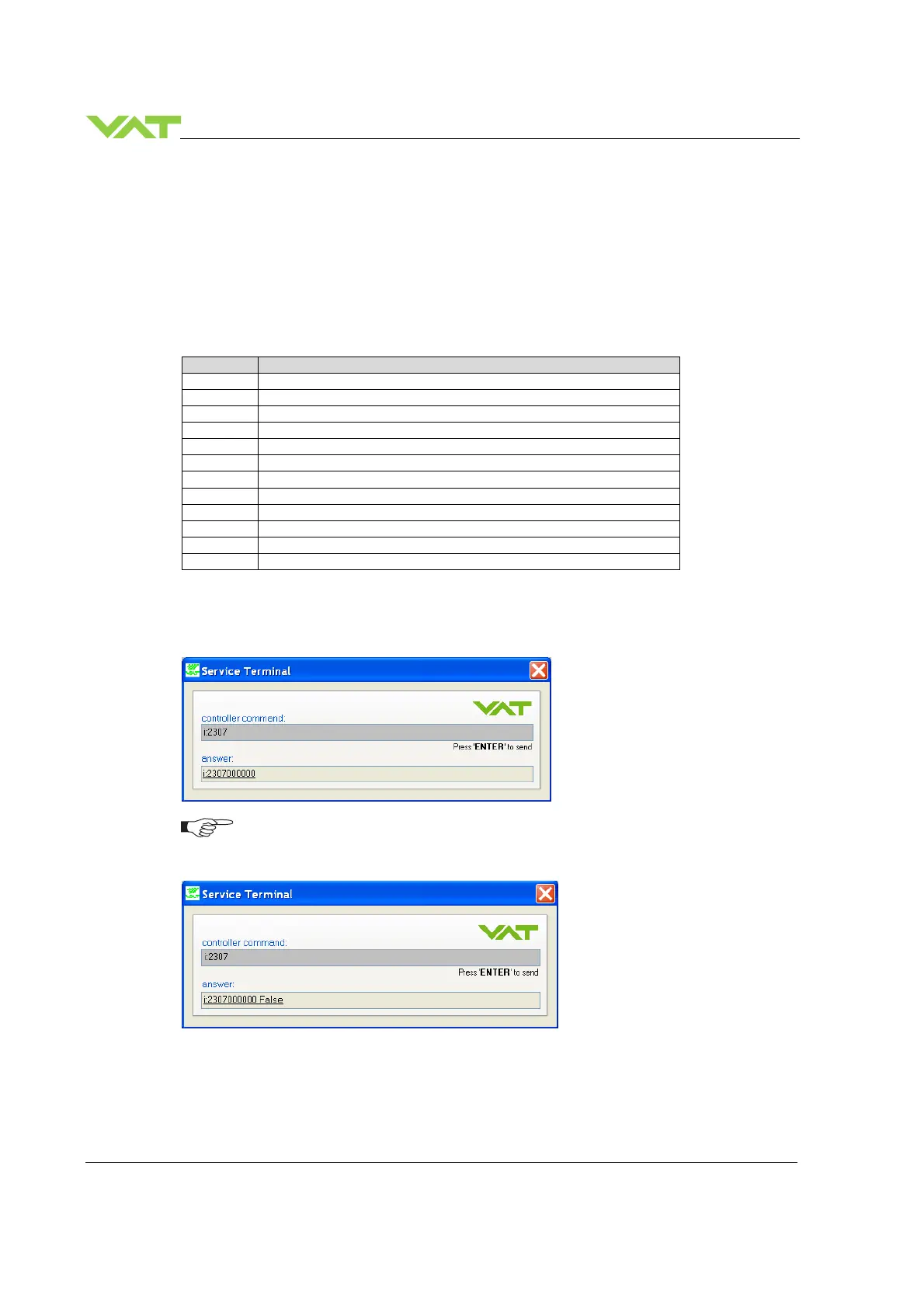

Example «get-command» with Terminal: Get the data Type of Position setpoint:
If at start up the data type value in the memory is out of range the default value is
taken. In this case the data type is set to default value (0 = singed integer) and the get
command i:23 add a string “False”:
