MIXER CLEANING
For devices that deliver instant beverages.
For each load and/or weekly or more frequently, depend-
ing on the use of the machine and the quality of incom-
ing water and products used, it is necessary to ensure
the sanitation of the mixer.
The parts that need to be cleaned are:
- Powder trays, mixers and instant drinks dispensing
pipes;
5
4
3
2
1
6

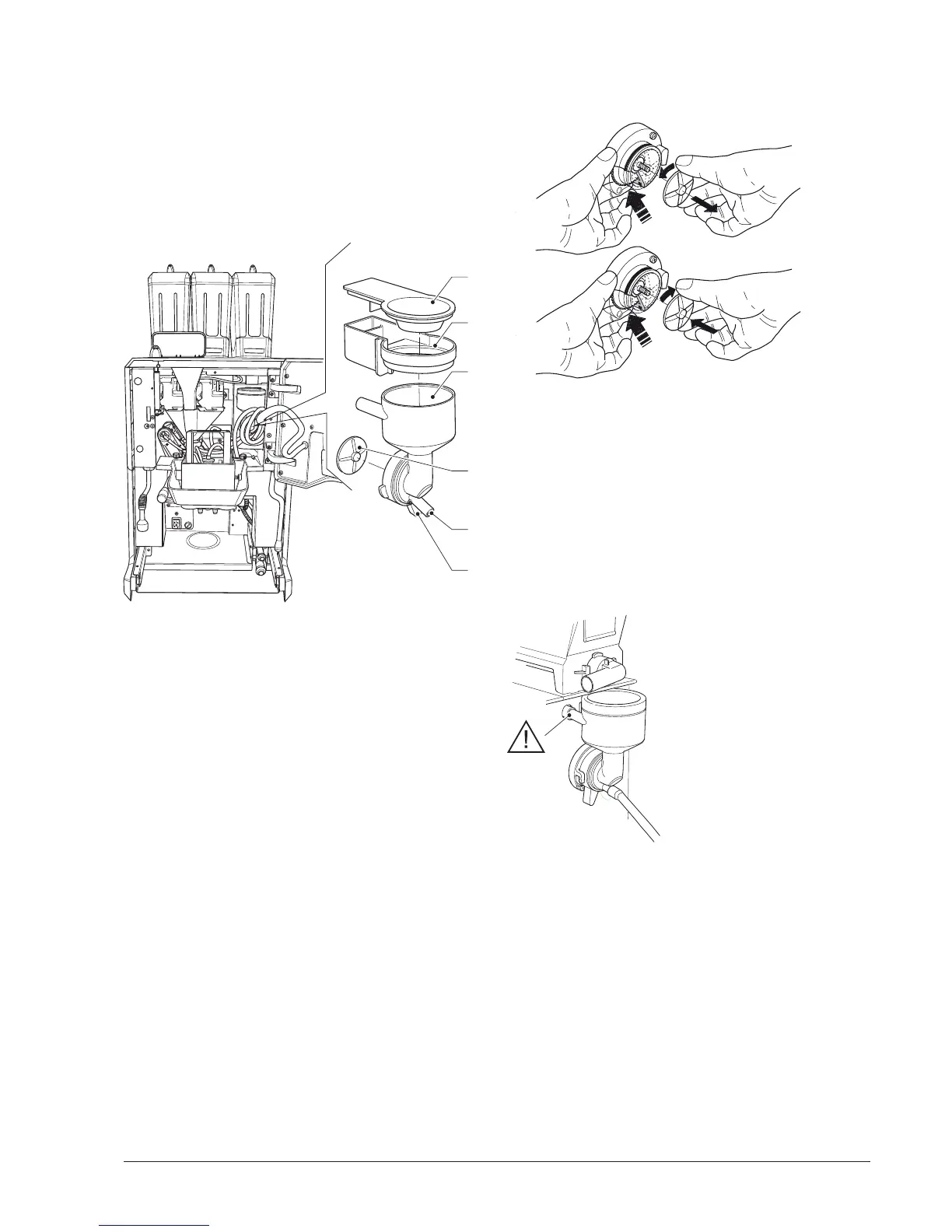

Fig. 9
1- Instant product funnel
2- Powder tray
3- Water funnel
4- Mixer fan
5- Instant beverage hose connection
6- Water funnel locking ring
To clean the mixer, proceed as follows:
- disconnect the instant beverage hose from the connec-
tion of the water funnel
- Turn the water funnel locking ring counterclockwise and
remove the mixer from the machine
Pay particular attention to close it completely during
reassembly;
- separate all the components (the instant products
funnels, the water funnels, the conveyors, the powder
trays)
- Remove the fans: just lock with a finger the disc
mounted on the motor-mixer shaft, then turn the fan by
unscrewing it.
Fig. 10
- Soak the components for about 20' in a container with
a sanitizing solution previously prepared, having care
of mechanically removing the residues and visible films
using swabs or brushes if necessary
- rinse thoroughly and dry each part carefully
- reassemble the fans:
- reassemble the parts of the mixer and reposition
the water funnel properly, making sure it is properly
plugged
Fig. 11
