VendCo KARISMA - Switching Power Supply Board; Hydraulic Circuit Solenoid Valves

© by N&W GLOBAL VENDING S.p.A. 50 02-2014 4535 00

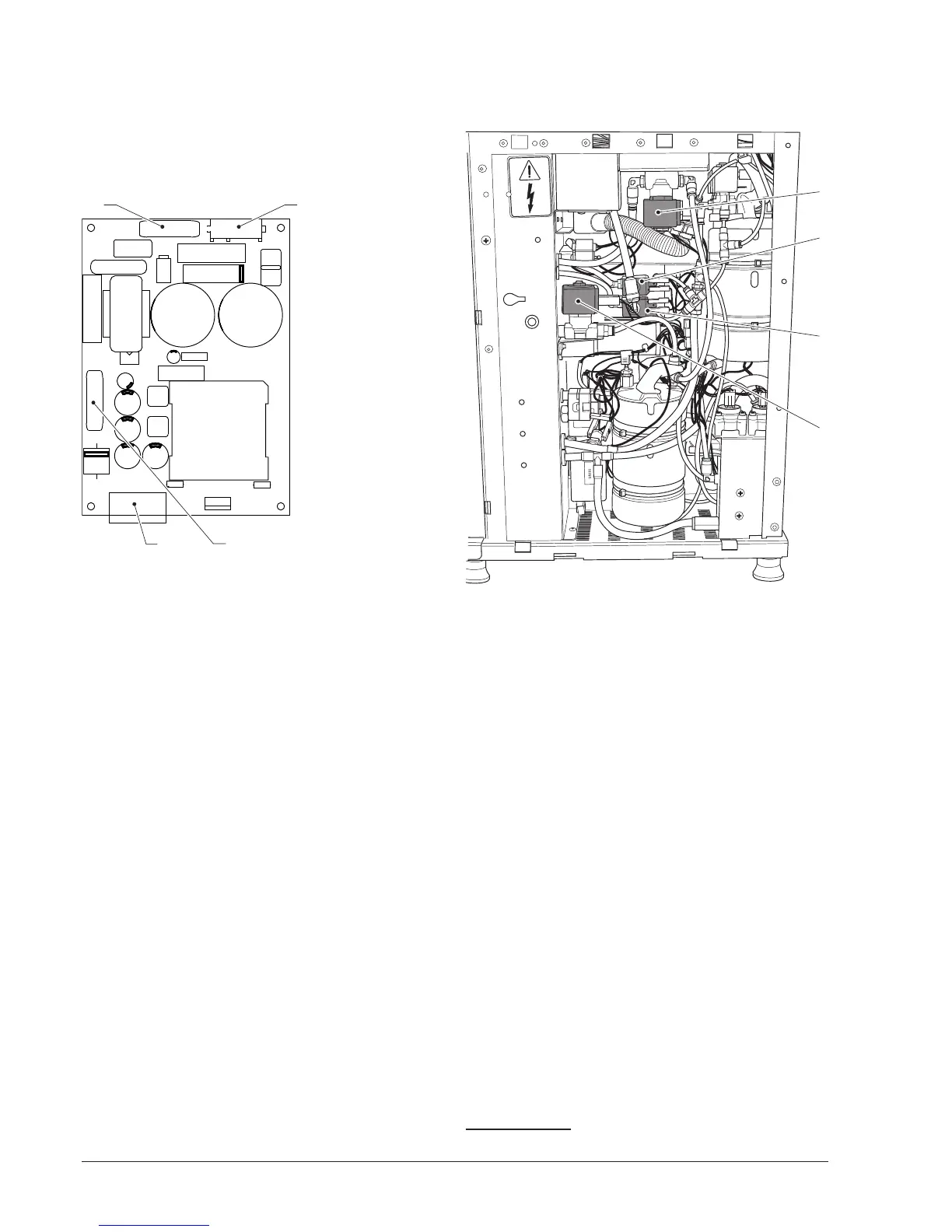

SWITCHING POWER SUPPLY BOARD
The board provides power supply (24VDC) to the elec-
tronics of the machine.
The board is provided with protection fuses on the in-
coming supply and on the outgoing 24V.
The boards do not require calibration and/or mainte-
nance.
1
3
4
2
Fig. 38
1- 24V Connector
2- Protection fuse on the 24V
3- Mains power supply connector
4- Protection fuse on the power supply network
HYDRAULIC CIRCUIT SOLENOID VALVES
rigHt siDE viEw
1
2
3
4
Fig. 39
1- Steam solenoid valve (EVVAP)
2
2- Milker nozzle wash solenoid valve (EVWEMU)
2
3- Cappuccino maker wash solenoid valve (EVWMLK)
2
4- Steam spout solenoid valve (EVLVAP)
3
2 Only models with cappuccino maker
3 Only some models
