© by N&W GLOBAL VENDING S.p.A. 48 02-2014 4535 00
REMOVING THE SIDE AND REAR PANELS
To gain access to internal components, remove the side
panels of the machine.
- Operate the side panels fixing knurls
- Slide the side panels forward to unhook them
- Disconnect the lighting board of the side
- To remove the rear panel, slide it to the left.
To re-assemble the panels, proceed in reverse order.
2
3
1

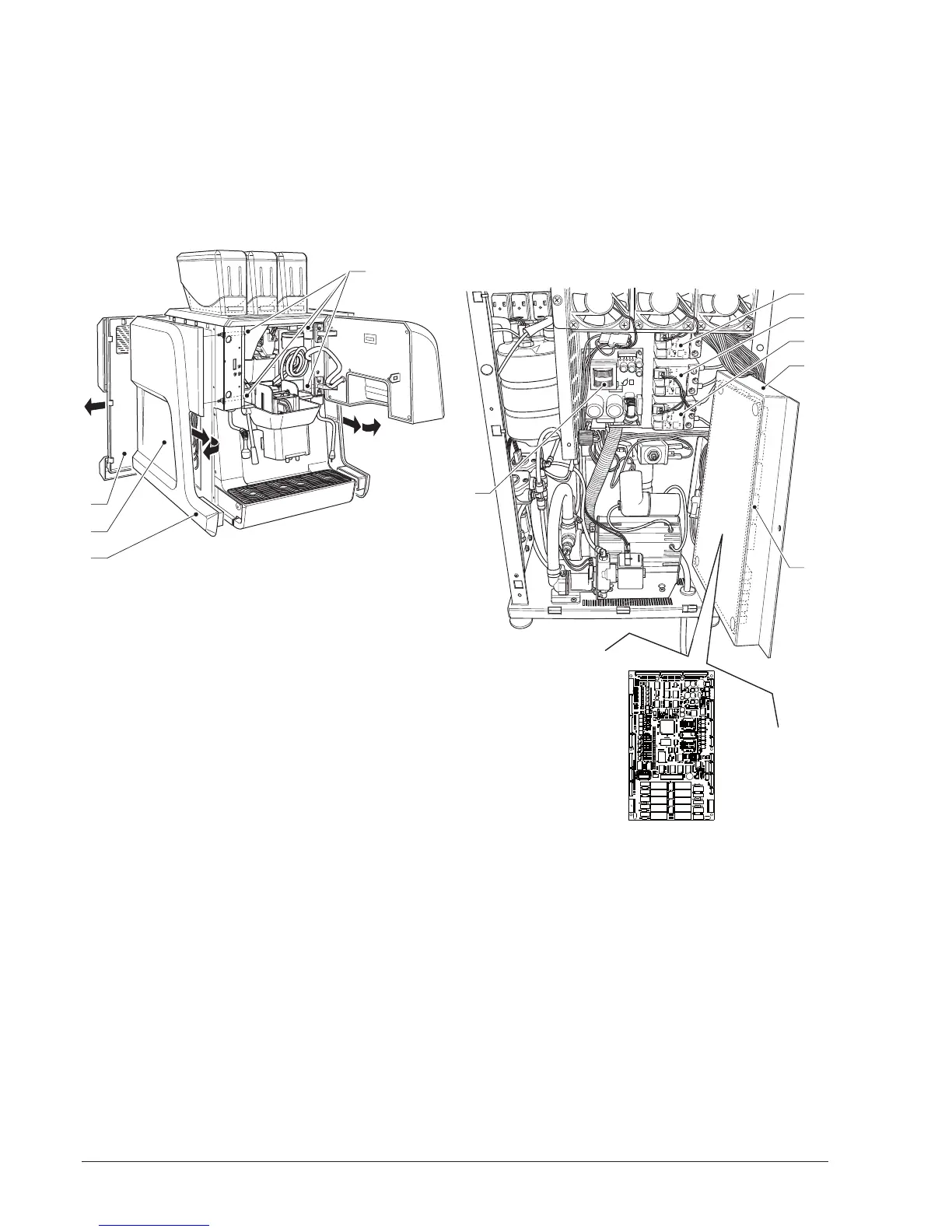

Fig. 35
1- Side panels fixing knurls
2- Rear panel
3- Side panel
4- Aesthetic side
SOLENOID VALVE FUNCTIONS
The electronic boards are designed to be used on sev-
eral models of machines.
In case of replacement, or in order to change the per-
formance of the machine, it will be necessary to verify
the conguration of the electronic boards and load the
adequate software.
To access the electronic boards it is necessary to re-
move the left side and then the rear panel of the machine
(see related paragraph)
1
2
3
4
5
6
Fig. 36
1- Steam boiler relay
2- Instant beverage boiler relay
3- Espresso boiler relay
4- Activation board adjustable support plate
5- CPU activation board
6- Switching power supply board
