CPU ACTIVATION BOARD
The board provides for activating the users via relay.
It manages the signals originating from the cams and/or
microswitches and controls the 24Vdc users.
It also controls the relays operating the boilers.
The board is 24 Vdc powered and is positioned on the
adjustable support
The board management software is loaded directly on
the microprocessor.
On the board are the relays; the table below indicates
the users activated by relay.
Refer to the wiring diagram of the device.
Relay User
RL1 MAC
RL2 /
RL3 MF2
RL4 MF1
RL5 ESC
RL6 MAC2
RL7 ESC2
RL8 /
RL9 /
RL10 PM
RL1
RL2
RL3
RL4
RL5
RL6
RL7
RL8
RL9
RL10
21
22
23
24
25
26
27
28
29
30
31
32
33
34 37
3635
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
11
181920

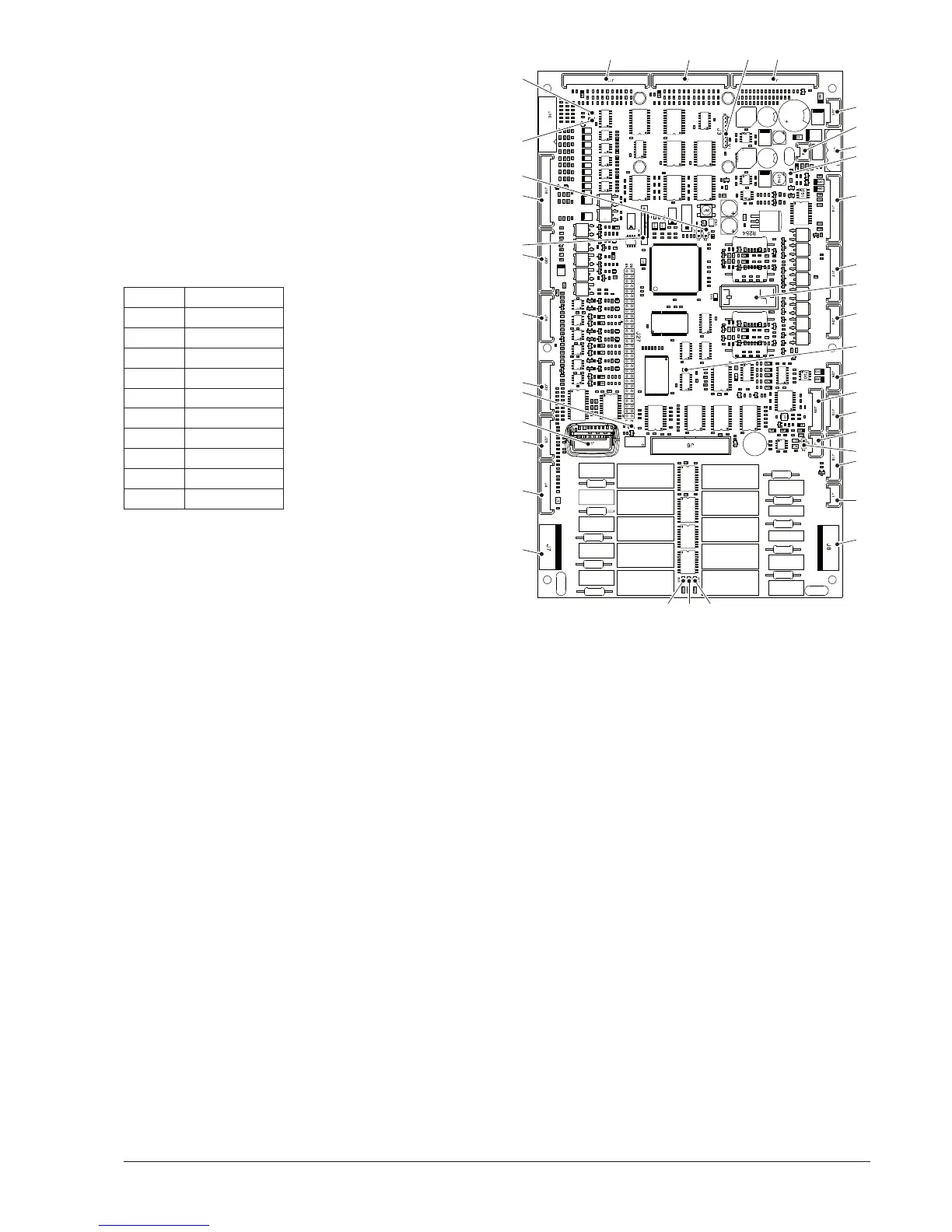

Fig. 37
1- (J21) Fan
2- (J28) Not used
3- (J9) Board power supply 24 Vdc
4- DL5 "5Vdc presence" yellow led
5- (J14) Not used
6- (J17) Espresso unit motor (J17)
7- 24Vdc Safety Relay
8- (J24) General stroke counter
9- DL1 "tab reset" red led
10- (J25) Led for lighting sides and dispensing area
11- (J26) Not used
12- (J13) Ground tray, door, container microswitches
13- (J2) Not used
14- (JP2)
can bus
jumper
15- (J19) RS232 Connector for programming the board
16- (J1) Can bus
connector
17- (J8) Users
18- DL7 "espresso boiler heating" red led
19- DL6 "instant beverage boiler heating" red led
20- DL8 "steam boiler heating" red led
21- (J7) Users
22- (J4) Not used
23- (J23) Not used
24- Upkey
25- DL2 "run" green led
26- (J22) Boilers and temperature probes relay control
27- (J18) Grinder adjustment motors
28- (J20) 24Vdc users
29- Battery
30- (J16) Solenoid valves
31-
Watchdog input
jumper (closed)
32- DL4 "espresso boiler counter pulses" yellow led
33- DL3 "hot water boiler counter pulses" yellow led
34- (J11) Input
35- (J15) input
36- (J3) Not used
37- (J12) Not used
