BOILER THERMAL PROTECTION
In case of intervention of one or more thermostats
-
nated.
The recovery of the thermostats must be done
manually through the button placed on the thermo-
stats themselves.
-
may be damaged.
The espresso boiler has a capillary safety thermostat,
which deactivates the boiler resistance in case the
temperature in the boiler exceeds the safety temperature
(140°C).
To reset the thermostat with capillary unscrew the cover
and press the reset button.
2
1
6
5
7
3
4

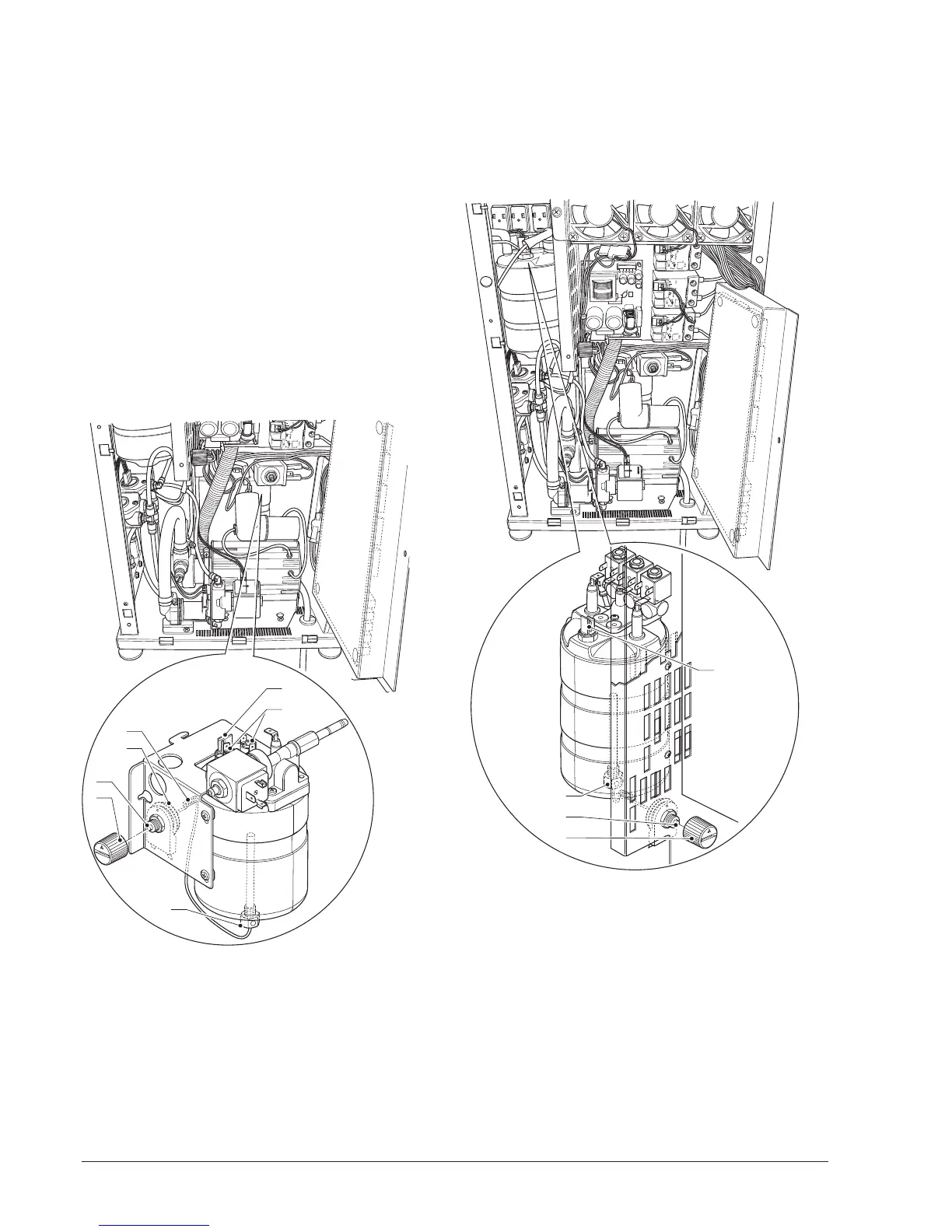

Fig. 42
1- Temperature probe
2- Capillary
3- Thermostat with capillary
4- Thermostat with capillary reset button
5- Thermostat with capillary reset button cover
6- Coupling for capillary
The hot water boiler has a capillary safety thermostat,
which intervenes in case the temperature in the boiler
exceeds the safety temperature (140°C) in absence of
water.
To reset the thermostat with capillary unscrew the cover
and press the reset button.
1
2
3
4
Fig. 43
1- Temperature probe
2- Coupling for capillary thermostat
3- Thermostat with capillary reset button
4- Thermostat with capillary reset button cover
