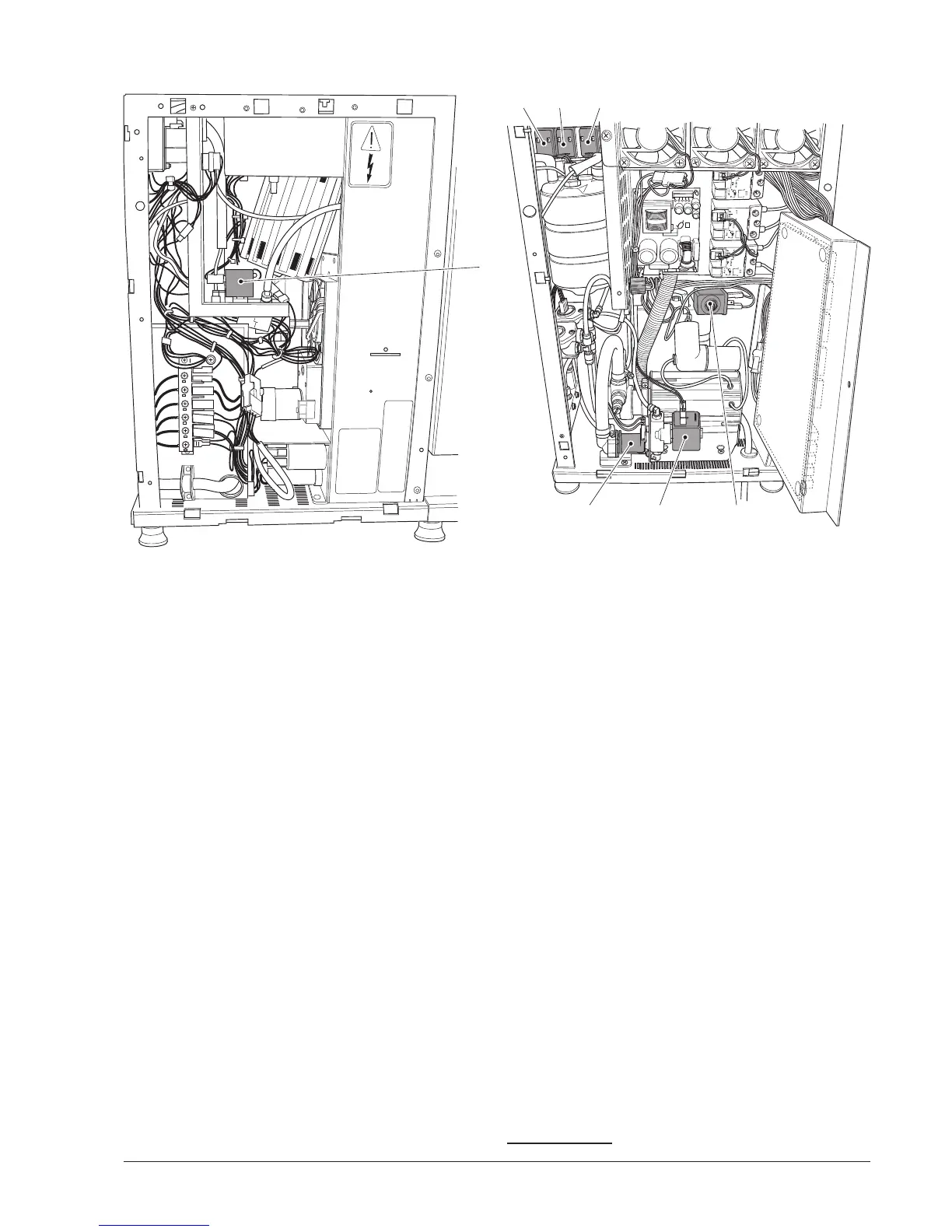

lEft siDE viEw
1
Fig. 40
1- Water addition solenoid valve (EVAG)
rEar siDE viEw
4 5 6
1 2 3
Fig. 41
1- Steam boiler load solenoid valve (EEAVAP)
2- Hot water spout solenoid valve (EVH2O)
4
3- Instant beverage solenoid valve
4- Mains water solenoid valve (EEA)
5- Increased water flow solenoid valve (EV2H2O)
6- Espresso solenoid valve
4 Only some models
