To clean the infuser unit, proceed as follows:
- Disconnect the coffee outlet nozzle from the unit by
rotating it by 90° from the rod and pulling it outside.
- Act the unit end stop lever rotating it until the horizontal
position.
- Pull out the coffee unit from the solid residue container
compartment
- Remove any excess coffee and rinse under running
water.
2
1
3
4
7
6
8

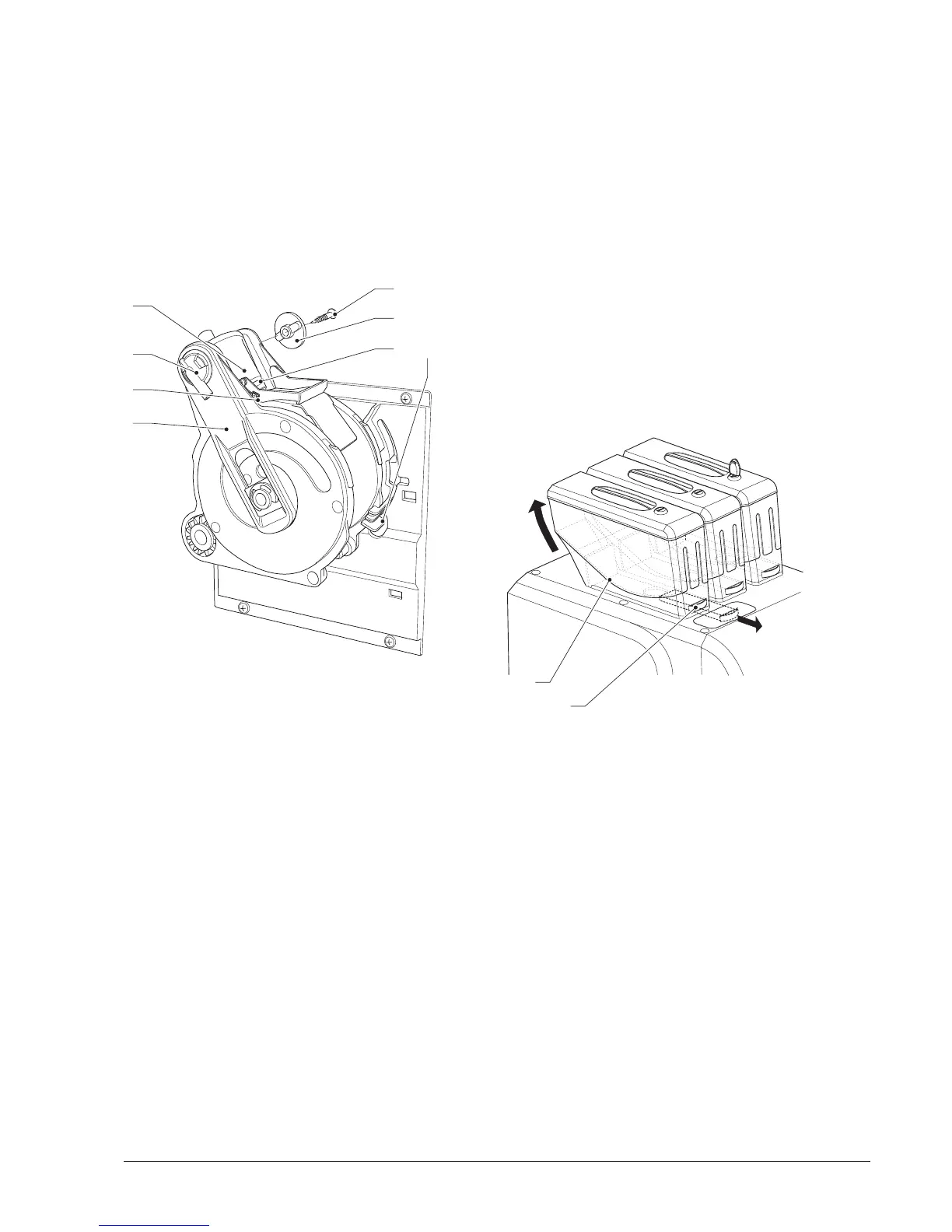

Fig. 33
1- Upper piston
2- Coffee outlet nozzle
3- Scraper
4- Rod
5- Lateral screw
6- Key
7- Upper seal
8- Espresso unit end stop lever
REMOVE THE PRODUCT CONTAINERS
The containers are provided with a safety magnet
that indicates the presence / absence of the con-
tainers to the control electronics.
In the absence of the containers the grinders are
disabled.
To remove the product containers (coee beans or
instant products) simply remove the handle and then lift
the container from behind.
Always lift the container from behind so that the
grinders are disabled; the non-compliance with this
procedure can be a source of injury (accidental
operation of the grinder)
Pulling the handle of the container closes the shutter
and, at the same time, it releases while the container
from the machine
When reassembling, reposition the container and push
the handle inside the container.
Make sure the container is properly xed to the unit.
1
2
Fig. 34
1- Handle
2- Magnet
