© by N&W GLOBAL VENDING S.p.A. 20 02-2014 4535 00
REMOVING THE SIDE AND REAR PANELS
To gain access to internal components, or for the electri-
cal connection, remove the panels:.
- Operate the side panels fixing knurls
- Slide the side panels forward to unhook them
- Disconnect the lighting board of the side
- To remove the rear panel, slide it to the left.
To re-assemble the panels, proceed in reverse order.
2
3
1

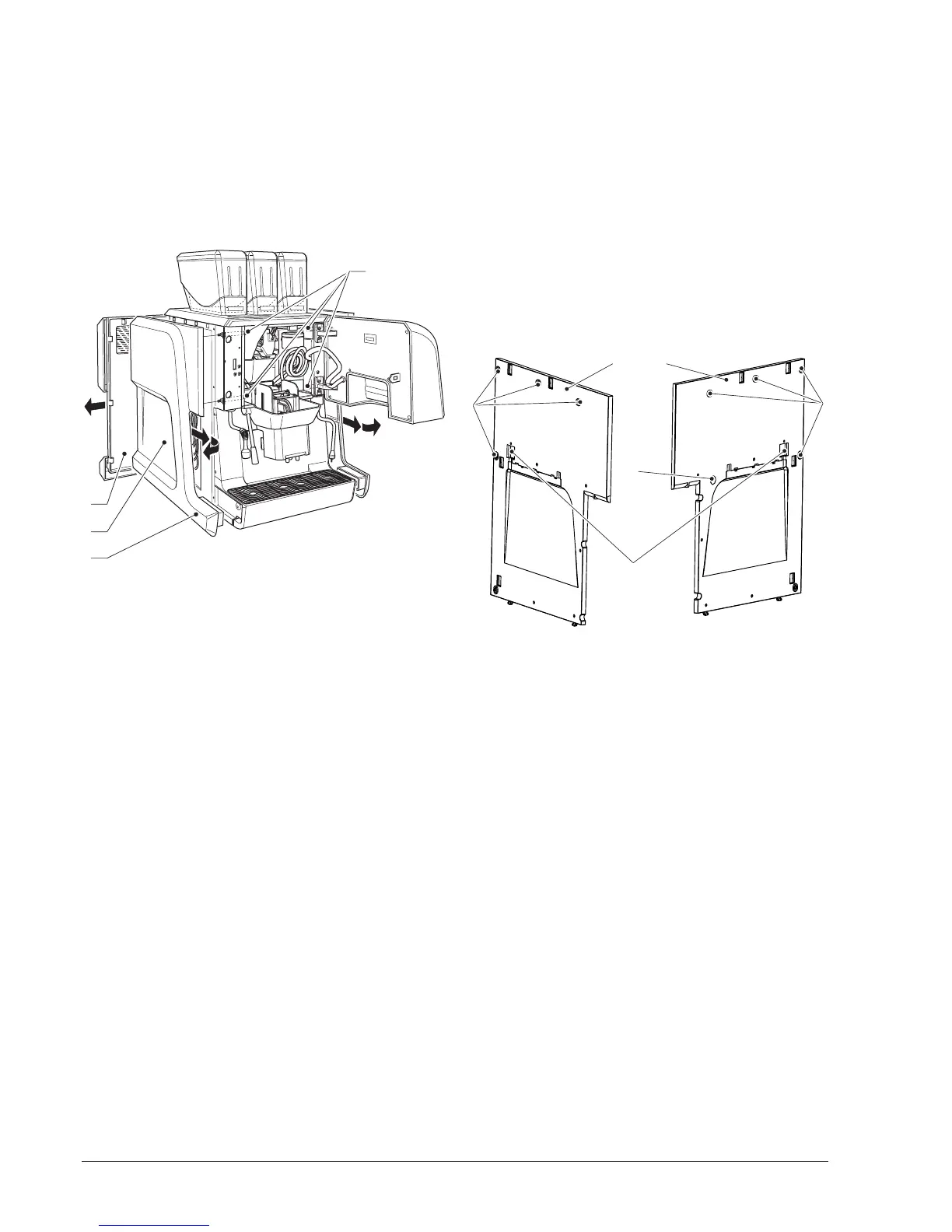

Fig. 20
1- Side panels fixing knurls
2- Rear panel
3- Side panel
4- Aesthetic side
SIDE MODULES INSTALLATION
Side modules can be combined with the machine, (op-
tional kit such as cooling units and cup heaters).
The side modules are supplied with installation and test
instructions, which shall be scrupulously followed in
order to maintain the safety of the machine.
unplug the machine from the power supply.
- unplug the machine from the power supply
- remove the aesthetic side from the side panel and the
LED board lighting the side
- On the side panel to apply the cap (supplied with the
system) to close the hole for the passage of the cables,
apply the adhesive seals the points indicated
4
5 5
3
Fig. 21
1- Left side panel
2- Right side panel
3- Through hole for routing the milk hose from the cooling unit
4- Cable through hole
5- Points of application of the adhesive seals
- install the LED board and aesthetic side on the side
module (Cup heater and/or cooler)
- x and connect the side modules according to the
instructions supplied with the modules themselves
