New Configuration
Ver-Mac 2018 V-Touch Controller for TLDs User Manual – V3.2 52
1. Tap to select the Traffic pattern that applies to the intersection.
2. Tap and move to the next screen.
9.3 Select the Driving Side
In Driving Side screen you set the usual driving side of the road for your location.
1. Tap Right Side or Left Side to select the drive side.
2. Tap and move to the next screen.

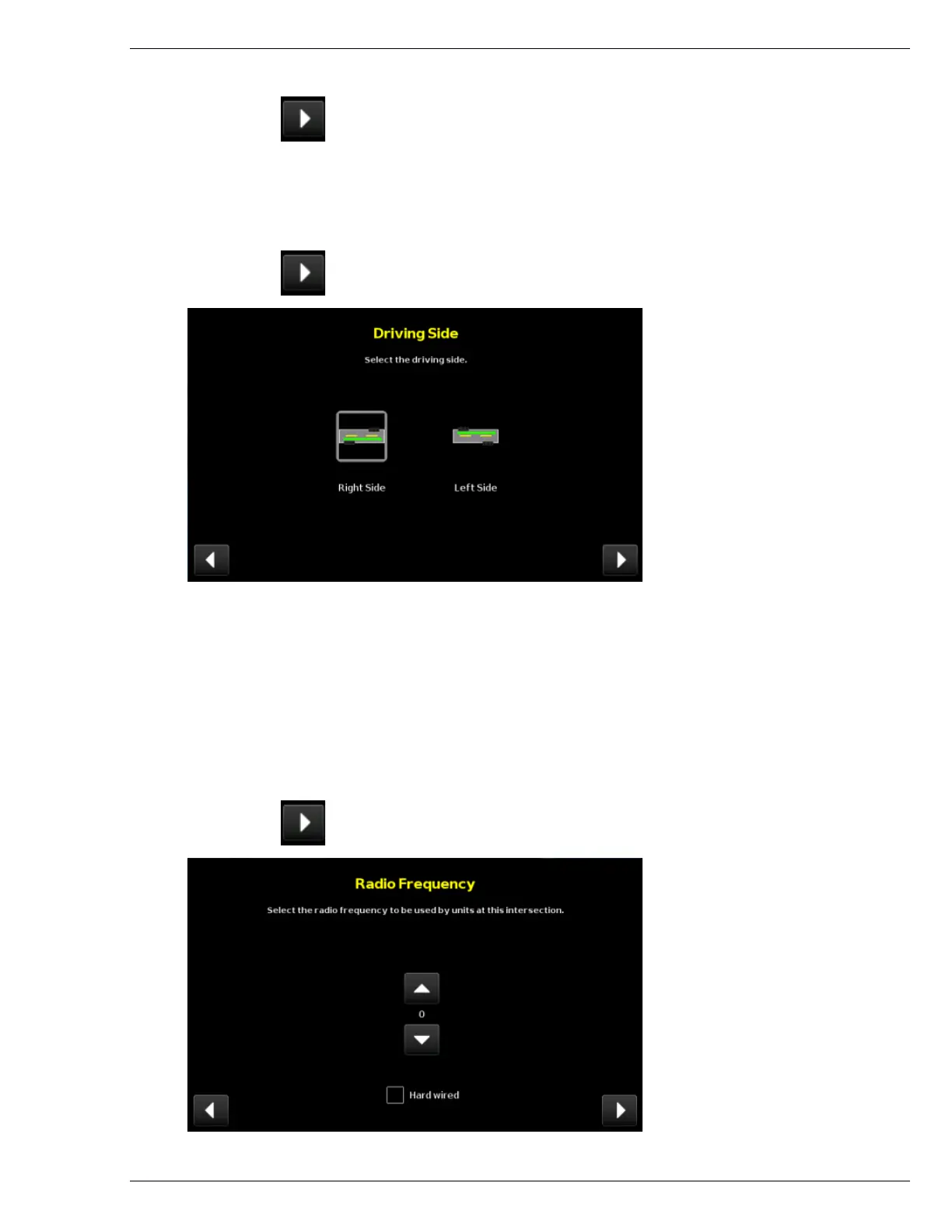

Figure 30: Driving Side
9.4 Set the Radio Frequency
1. Type or use Up/Down arrows to input the radio frequency. You can use up to
9 hopping channels. This becomes useful if you need to switch channels, if
there is another intersection within a mile or other equipment nearby using radio
frequencies.
2. Activate the check box if the unit is Hardwired rather than using radio.
3. Tap and move to the next screen.
Figure 31: Radio Frequency
