Ver-Mac 2018 V-Touch Controller for TLDs User Manual – V3.2 53
9.5 Set the Default Signalization Mode

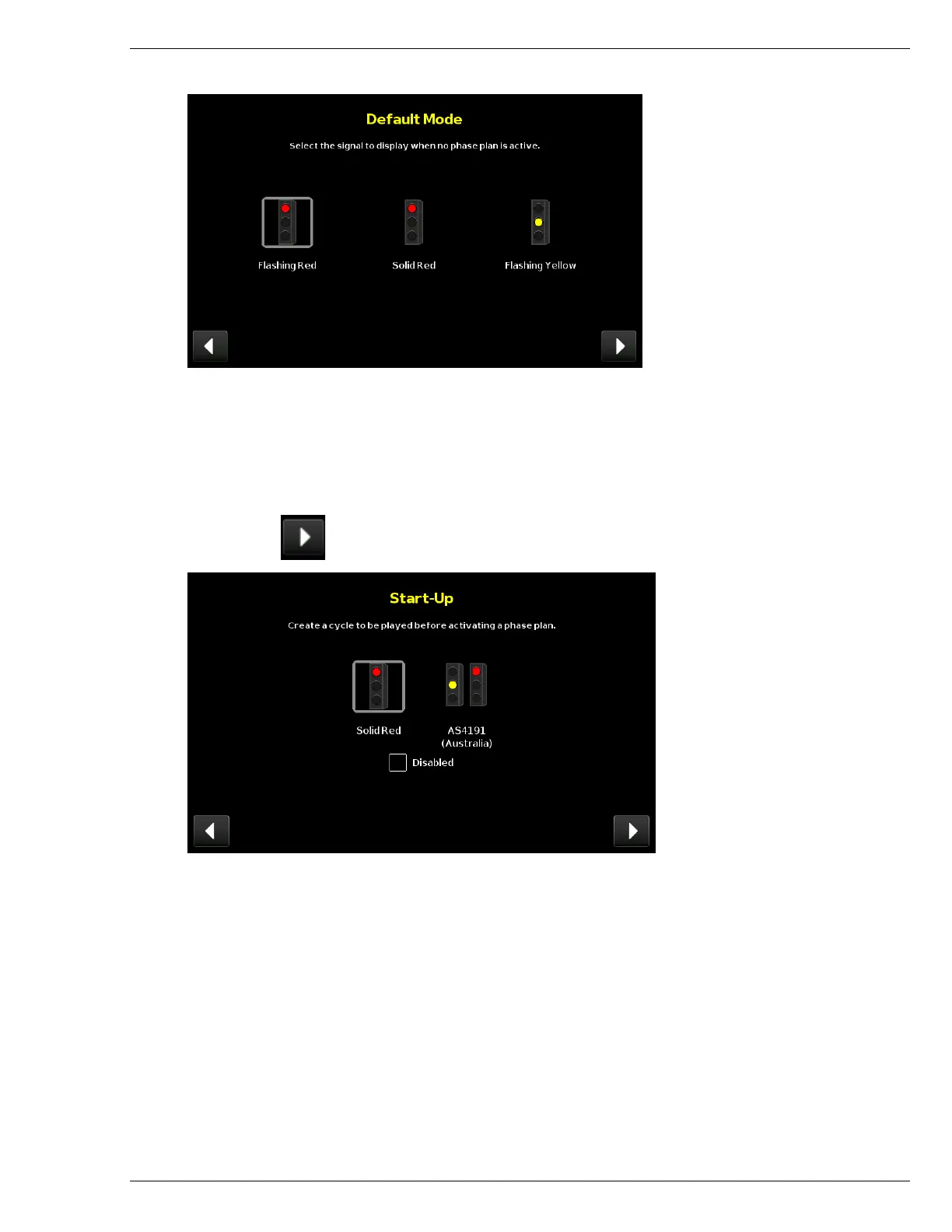

Figure 32: Default Mode
The default mode is the signal that all the TLD units are to display in case of system
error.
1. Select the appropriate mode (Flashing Red, Solid Red or Flashing Yellow).
2. Tap and move to the next screen.
3. Select SolidRed unless you are in Australia, or following Australian standards and
requirements.
9.6 Device Discovery
To complete the configuration of the system, you will use the Device Discovery screen
and assign units to each area.
