3 Home Screen
3.1 Exploring the Home Screen

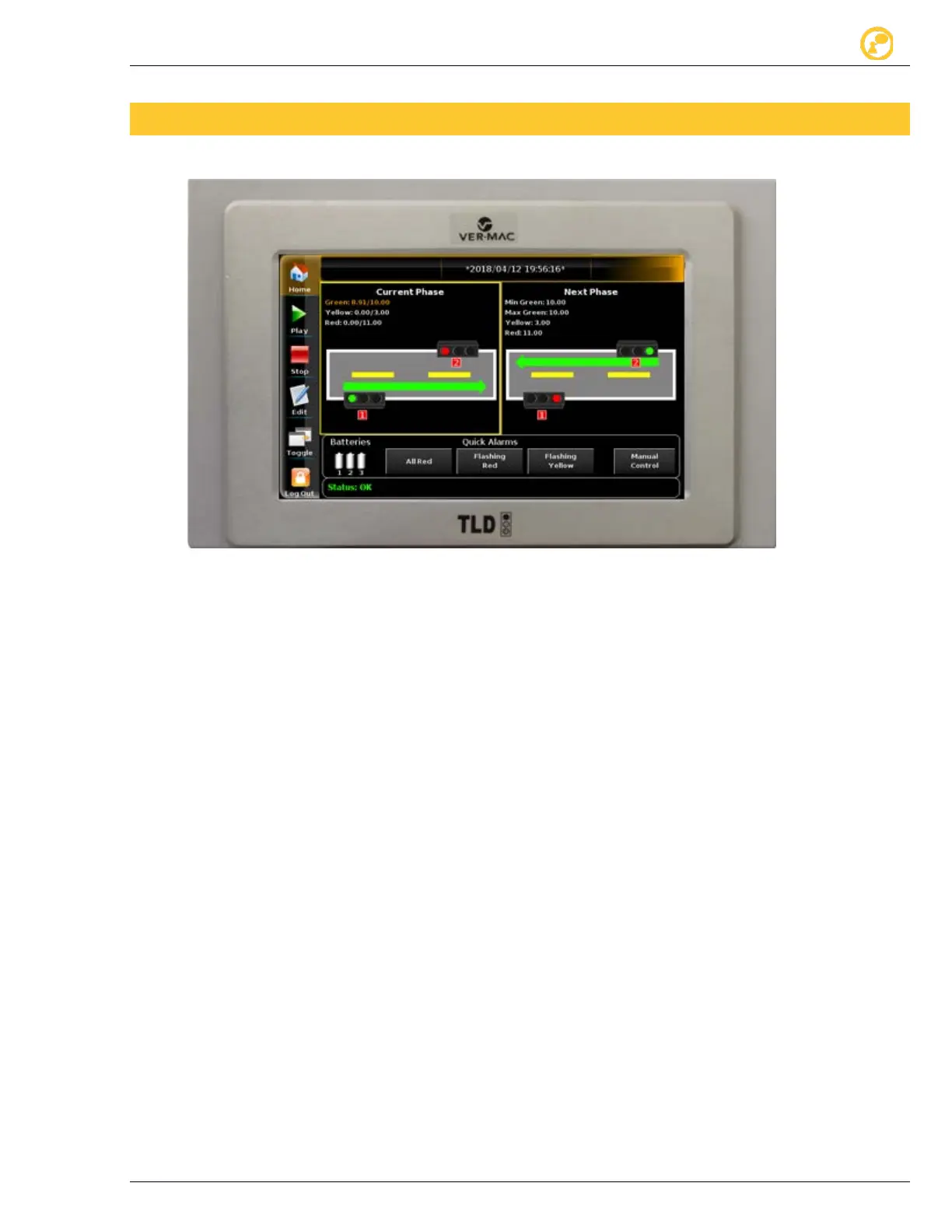

Figure 2: Home screen
This is how the Home screen displays after a successful login with the Admin user
account and before the signal plan for the intersection is operating. The Home screen
displays to all users but the Operations buttons shown vary according to your user
profile.
3.1.1 What You See
• Operation buttons laid out vertically on left of screen.
• A Status bar and batteries icons at the bottom left corner inform you about
input and output devices as well as battery levels.
• A Title bar along the top of screen, stars (*) if you are on the master unit.
• A Preview area showing the Current and Next phases of the current phase
with their corresponding traffic movements and all the TLD units identified by
number in the intersection layout.
Current Phase also shows:
o a countdown of the remaining current interval time,
o the type of phase and its position in the signal plan (cycle), plus,
o the position of the current interval in the current phase.
