VeriFone VX 680 Installation Guide

TERMINAL SETUP
Examining Connection Ports
VX 680 I
NSTALLATION GUIDE 21
Multi-port Adapter
An optional multi-port adapter (VPN 08643-01-R) provides connectivity for power,
USB host, USB device, and COM1 (RS-232 UART). This cable is used only for
deployment or development purposes.

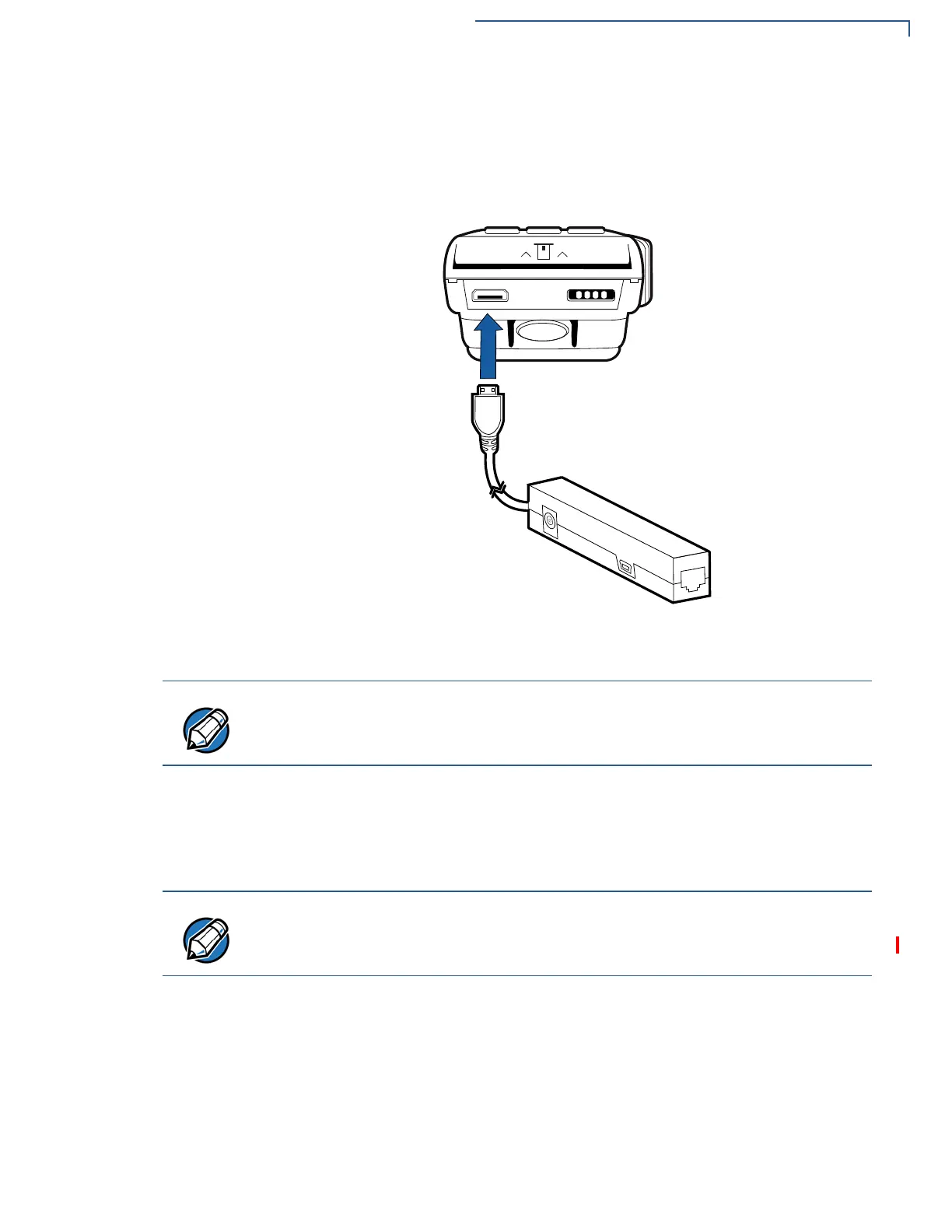

Figure 6 Multi-port Adapter Connection to a VX 680 Terminal
USB Modem Dongle
Use the USB Modem Dongle (VPN 24123-04-R) to provide the VX 680 terminal
with modem communication over a telephone line at speeds of up to 33,600 bps.
It can also be connected to the full-featured Base Station (see Attaching the USB
Dongles to the Base Station).
&20
9'&
0,1,86%$
NOTE
Other cables are available for different purposes. Check with your local VeriFone
representative for further information.
NOTE
The VX 680 WiFi/BT variant does not support the USB modem dongle
connection.

VeriFone VX 680 Specifications

General

Display	3.5” QVGA (320 x 240 pixels) color LCD with backlight
Connectivity	Wi-Fi, Bluetooth, Ethernet
Processor	400 MHz ARM11 processor
Memory	128 MB Flash, 64 MB SDRAM
Operating System	Verix
Card Readers	MSR, EMV smart card reader, contactless/NFC
Printer	Integrated thermal printer
SAM Slots	3 SAM slots
Peripheral Ports	RS-232 port, USB port
Power Supply	AC adapter (100-240V), Battery backup
Weight	500g
