VeriFone VX 680 Installation Guide

TERMINAL SETUP
Installing the SIM or R-UIM Card (GPRS and CDMA Models)
VX 680 I
NSTALLATION GUIDE 33
8 Close the printer cover.

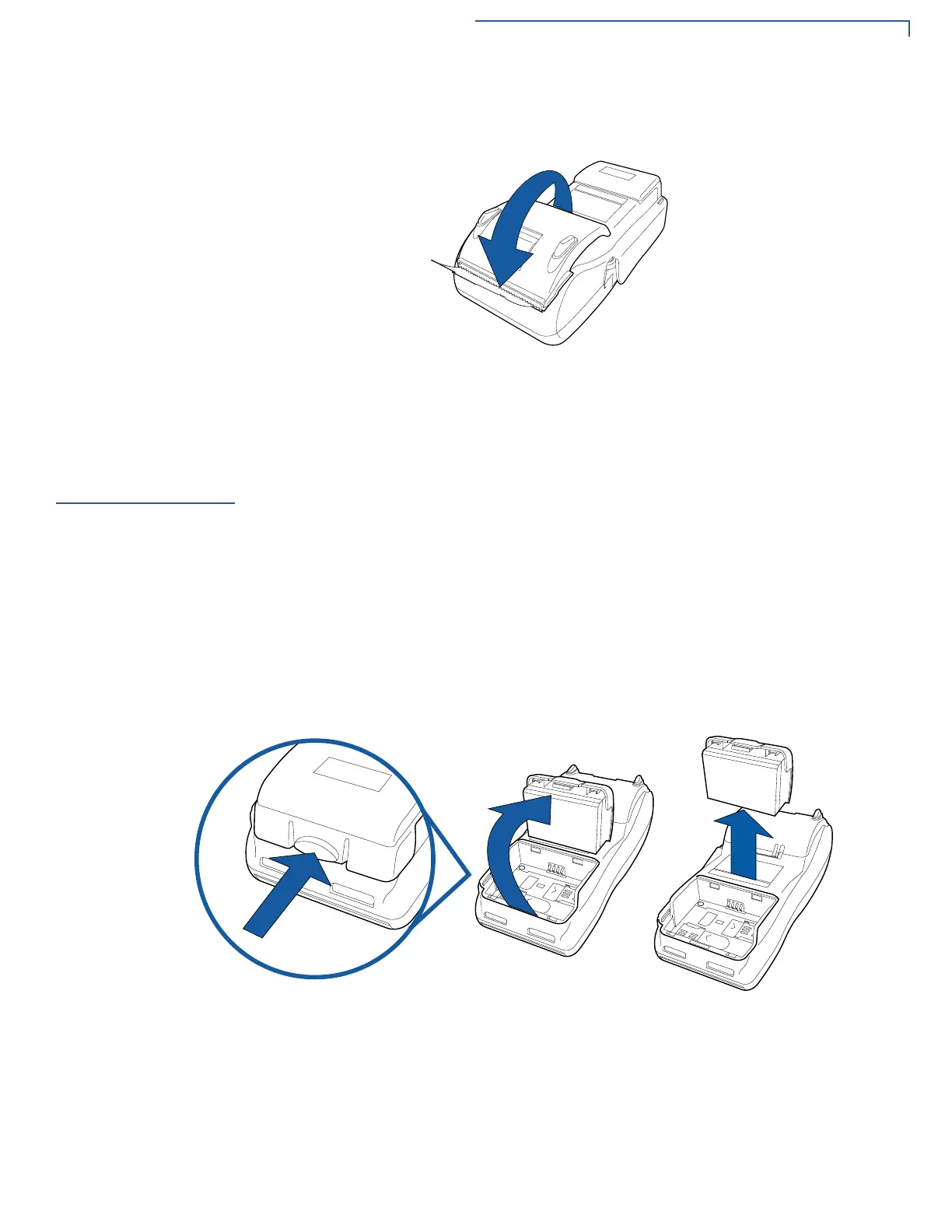

Figure 20 Closing the Printer Cover
Installing the
SIM or R-UIM
Card (GPRS and
CDMA Models)
The VX 680 terminal for GPRS modems supports the installation of a GSM SIM
(Subscriber Identity Module). While the VX 680 terminal for CDMA modems
supports the installation of a R-UIM (Removable User Identity Module). Use the
following procedure to install a SIM or R-UIM card.
To install or replace
the card
1 Turn off the terminal.
2 Place the terminal upside down on a soft, clean surface to protect the lens
from scratches.
3 Remove the battery.
4 Remove the battery to expose the SIM/R-UIM compartment, as shown in
Figure 21.
Figure 21 Removing the Smart Battery

VeriFone VX 680 Specifications

General

Display	3.5” QVGA (320 x 240 pixels) color LCD with backlight
Connectivity	Wi-Fi, Bluetooth, Ethernet
Processor	400 MHz ARM11 processor
Memory	128 MB Flash, 64 MB SDRAM
Operating System	Verix
Card Readers	MSR, EMV smart card reader, contactless/NFC
Printer	Integrated thermal printer
SAM Slots	3 SAM slots
Peripheral Ports	RS-232 port, USB port
Power Supply	AC adapter (100-240V), Battery backup
Weight	500g
