TERMINAL SETUP
Connecting the Terminal Power Pack
VX 680 I
NSTALLATION GUIDE 39
Connecting the
Terminal Power
Pack
After installing the smart battery, connect the VX 680 terminal to the provided
power source for initial charging.
The VX 680 unit comes with a universal input power pack capable of operating
from voltages of 100V to 240V AC.
To Connect the
Terminal Power Pack
1 Insert the round barrel connector into the power port in the connector, as
shown in Figure 26.

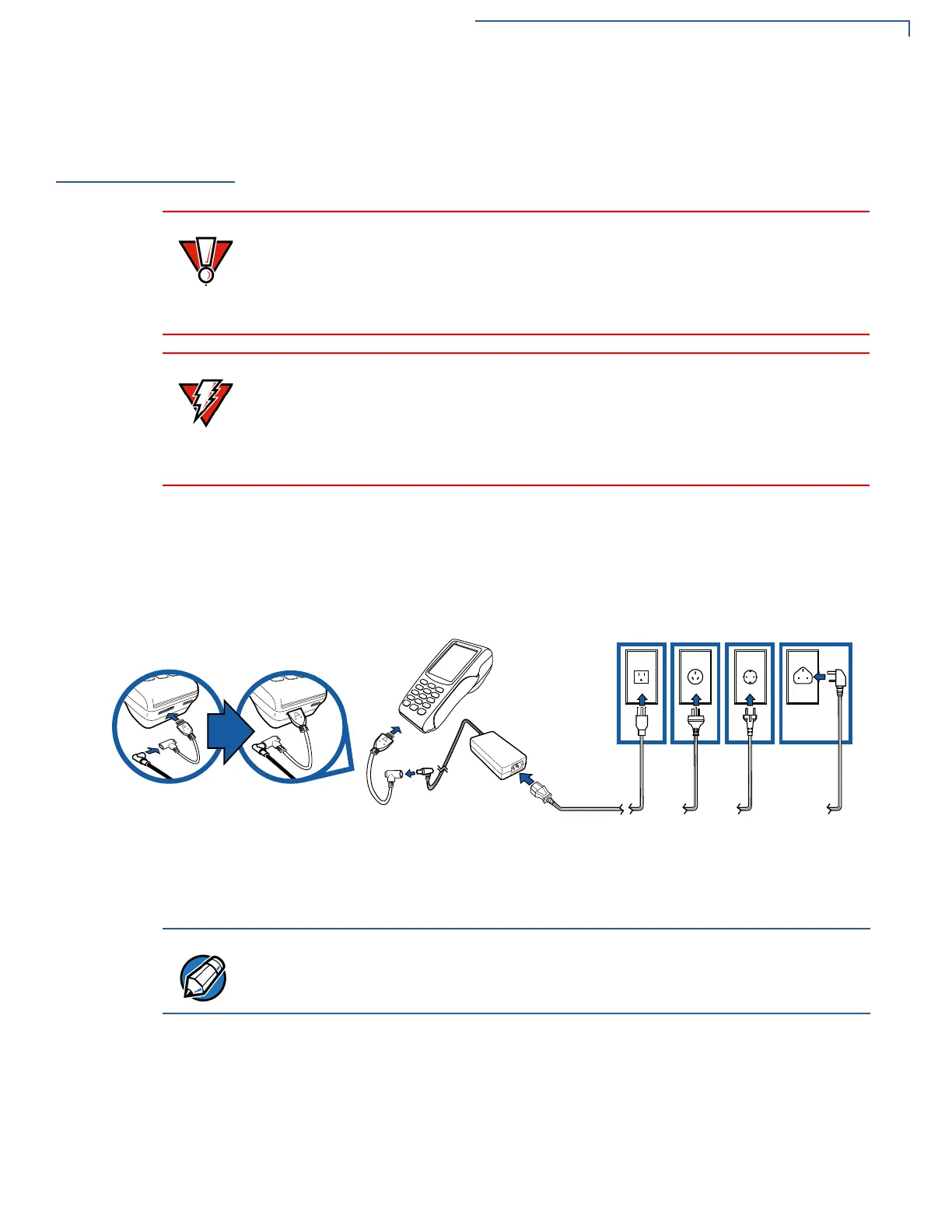

Figure 26 VX 680 Power Pack Connection
2 Insert the AC power cable into the power pack.
3 Plug the AC power cable into a wall outlet or powered surge protector.
The light indicators on the VX 680 appear when the terminal receives power.
Once it loads the application, the terminal starts the initial VeriFone copyright
screen and displays a unique copyright screen. If there is no available application
in the terminal,
DOWNLOAD NEEDED appears on screen after the initial VeriFone
copyright screen.
Using an incorrectly rated power supply may damage the terminal or cause it not
to work as specified. Before troubleshooting, ensure that the power supply being
used to power the terminal matches the requirements specified on the bottom of
the terminal. (See Specifications for detailed power supply specifications.) Obtain
the appropriately rated power supply before continuing with troubleshooting.
Do not plug the power pack into an outdoor outlet or operate the terminal
outdoors.
During a transaction, disconnecting the power by removing the battery or
unplugging the terminal from a wall power while at very low battery charge may
cause transaction data files not yet stored in the terminal memory to be lost.
To protect against possible damage caused by lightning strikes and electrical
surges, consider installing a power surge protector.
