VeriFone VX 680 Installation Guide

TERMINAL SETUP
Attaching the USB Dongles to the Base Station
44 VX 680 INSTALLATION GUIDE
Attaching the
USB Dongles to
the Base Station
With the VX 680 mounted on the Base Station, use the USB dongles to connect to
external peripherals. Only one Modem Dongle and one Serial Dongle can be
connected to the Base Station. A second Modem Dongle or a second Serial
Dongle will be ignored by the terminal.
1 Insert the USB dongle into the USB port located at the back of the Base
Station.

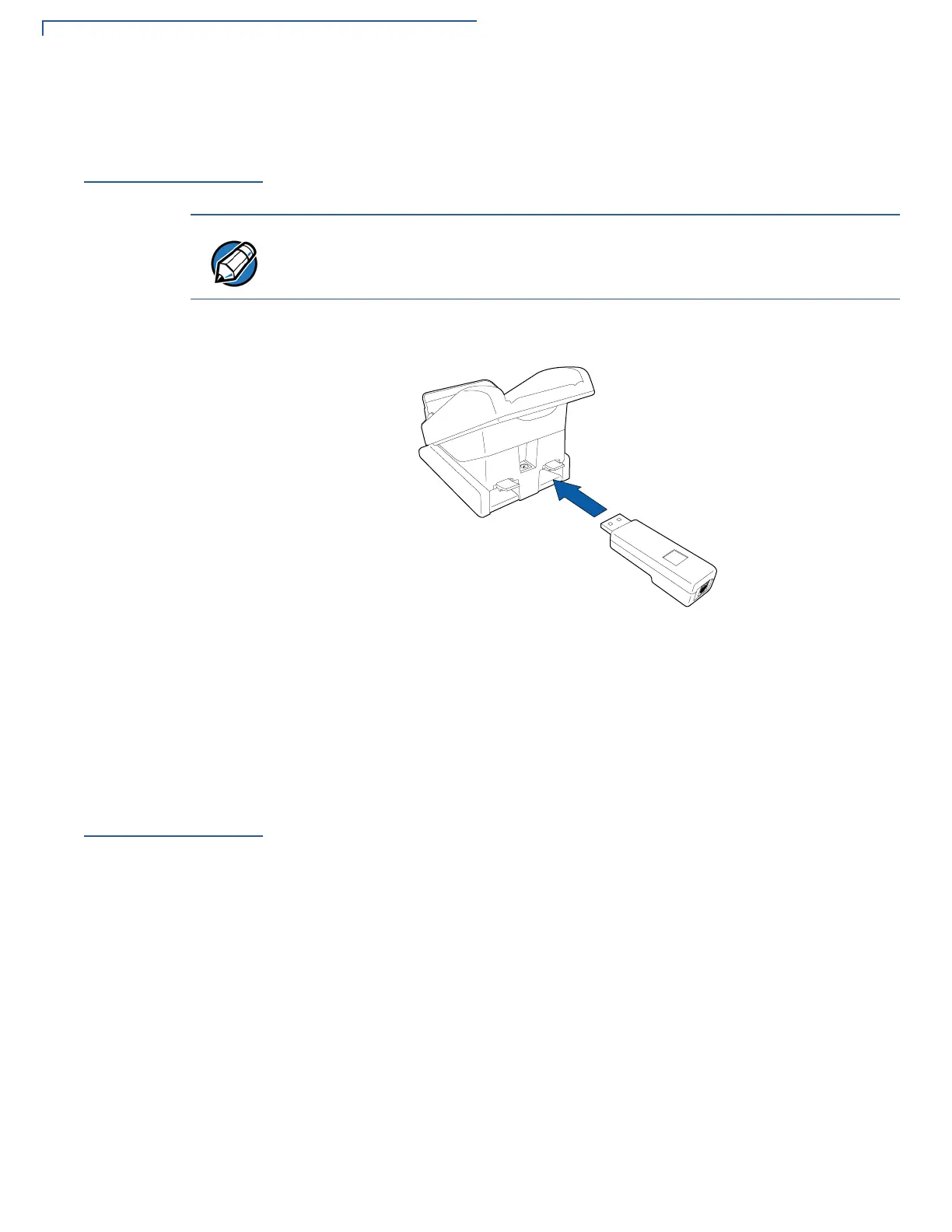

Figure 32 Inserting External Dongle Into USB Port
2 After inserting the external dongle into the USB port, place the VX 680
terminal onto the Base Station (see Powering Up the Base Station).
3 Connect the peripheral to the external dongle.
Charging the
Spare Battery on
the Base Station
The full-featured Base Station can charge the VX 680 terminal while charging an
extra battery pack.
1 Connect the Base Station to a power source (see Powering Up the Base
Station)
NOTE
The full-featured Base Station has USB ports for two external dongles. The
standard Base Station does not have USB ports.

VeriFone VX 680 Specifications

General

Display	3.5” QVGA (320 x 240 pixels) color LCD with backlight
Connectivity	Wi-Fi, Bluetooth, Ethernet
Processor	400 MHz ARM11 processor
Memory	128 MB Flash, 64 MB SDRAM
Operating System	Verix
Card Readers	MSR, EMV smart card reader, contactless/NFC
Printer	Integrated thermal printer
SAM Slots	3 SAM slots
Peripheral Ports	RS-232 port, USB port
Power Supply	AC adapter (100-240V), Battery backup
Weight	500g
