VeriFone VX 680 Installation Guide

TERMINAL SETUP
Powering Up the Base Station
42 VX 680 INSTALLATION GUIDE
Bluetooth
®
Access
Point Charging Base
The Bluetooth
®
Access Point Charging Base allows the VX 680 WiFi and
Bluetooth
®
-enabled terminal to connect wirelessly to the network. It has three
LED indicators: power indicator, bluetooth traffic and modem traffic.

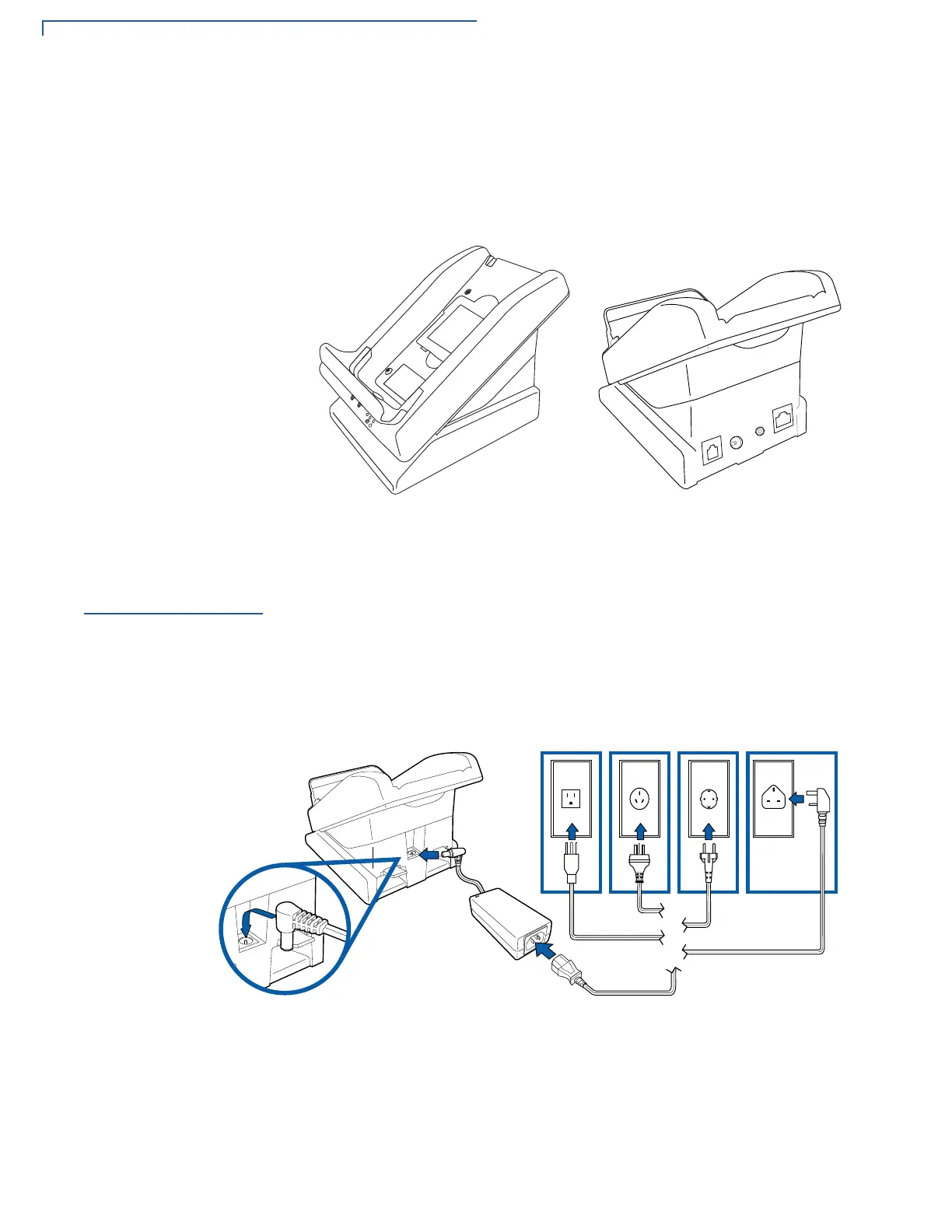

Figure 29 The VX 680 Bluetooth Access Point Charging Base Station
Powering Up the
Base Station
Use the procedure in this section to connect the VX 680 Base Stations to a power
source.
To power up the base
station
1 Insert the round barrel connector of the power pack into the power port at the
back of the Base Station. For Bluetooth
®
Access Point Charging Base Station,
see Power Connection to the Bluetooth
®
AP Charging Base Station.
Figure 30 Connecting the Base Station to a Power Source
2 Insert the AC power cable into the power pack.
3 Plug the AC power cable into a wall outlet or power surge protector.
4 Confirm that the Base Station is powered up as indicated by the solid green
LED.
(

VeriFone VX 680 Specifications

General

Display	3.5” QVGA (320 x 240 pixels) color LCD with backlight
Connectivity	Wi-Fi, Bluetooth, Ethernet
Processor	400 MHz ARM11 processor
Memory	128 MB Flash, 64 MB SDRAM
Operating System	Verix
Card Readers	MSR, EMV smart card reader, contactless/NFC
Printer	Integrated thermal printer
SAM Slots	3 SAM slots
Peripheral Ports	RS-232 port, USB port
Power Supply	AC adapter (100-240V), Battery backup
Weight	500g
