TERMINAL SETUP
Using the Base Station
VX 680 I
NSTALLATION GUIDE 41
Using the Base
Station
The primary purpose of the Base Station is to charge the terminal battery and
provide a docking station for the terminal after being used in pay-at-table
environments. The Base Station can be positioned on a countertop or mounted to
the wall.
There are three types of Base Stations: the standard model, the full-featured
model and the Bluetooth
®
Access Point Charging Base.
Standard Base
Station
The standard Base Station can charge the VX 680 terminal. However, it does not
have any external ports and has a single LED to indicate power status.

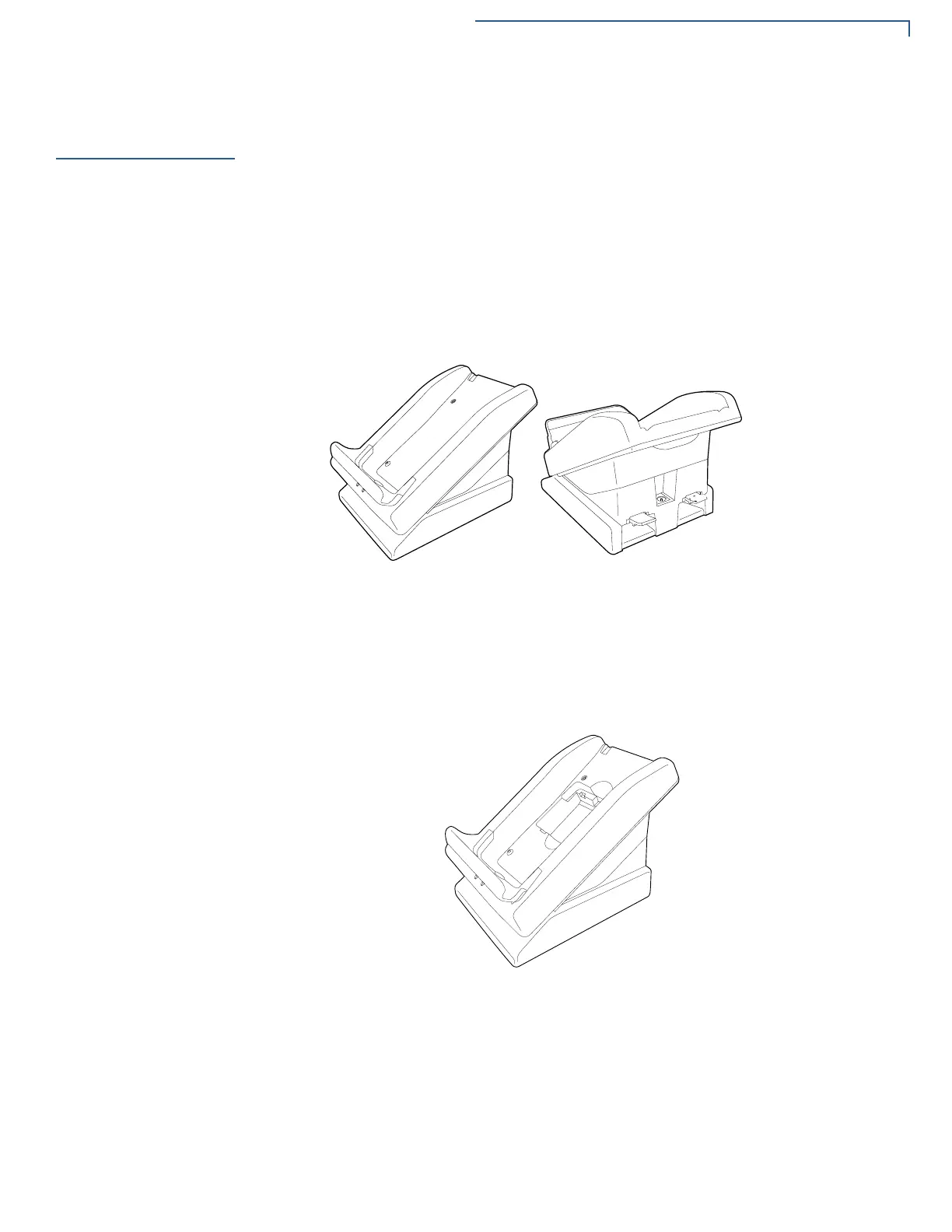

Figure 27 The VX 680 Standard Base Station
Full-Featured Base
Station
The full-featured Base Station can charge the VX 680 terminal while charging an
extra battery pack. In addition, it has two USB ports for external dongles, together
with one LED for power indication and another LED for the charger status.
Figure 28 The VX 680 Full-Featured Base Station
For more information on charging the spare battery on the full-featured Base
Station and connecting external dongles to the USB ports, see Charging the
Spare Battery on the Base Station and Attaching the USB Dongles to the Base
Station.
To Next Page
