VeriFone VX 680 Installation Guide

TERMINAL SETUP
VX 680 Bluetooth
®
Support
26 VX 680 INSTALLATION GUIDE
Mounting the
Bluetooth
®
AP
Charging Base
Station
The base station’s status is shown on its different LED indicators:
• The green LED indicates that the Bluetooth
®
AP Charging Base Station is
powered ON and capable of communication with other terminals.
• The blue LED is lit when radio connection is made and a paired terminal is
communicating with the Bluetooth
®
AP Charging Base Station.
• The amber LED is lit when the Bluetooth
®
AP Charging Base Station is online
and transmitting data using its internal modem.

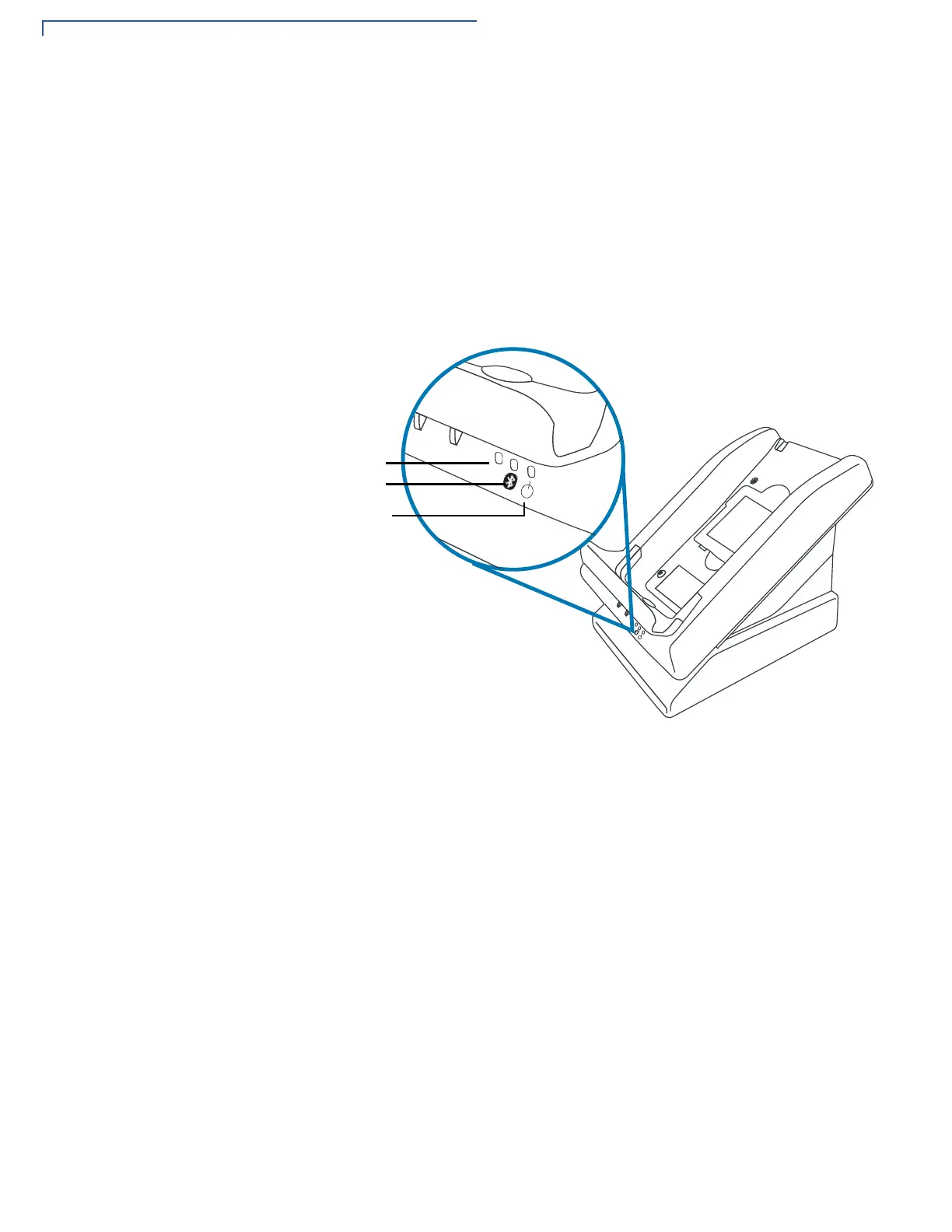

Figure 10 LED indicators on the Bluetooth
®
AP Charging Base Station
(
(
MODEM
BLUETOOTH
POWER

VeriFone VX 680 Specifications

General

Display	3.5” QVGA (320 x 240 pixels) color LCD with backlight
Connectivity	Wi-Fi, Bluetooth, Ethernet
Processor	400 MHz ARM11 processor
Memory	128 MB Flash, 64 MB SDRAM
Operating System	Verix
Card Readers	MSR, EMV smart card reader, contactless/NFC
Printer	Integrated thermal printer
SAM Slots	3 SAM slots
Peripheral Ports	RS-232 port, USB port
Power Supply	AC adapter (100-240V), Battery backup
Weight	500g
