VeriFone VX 680 Installation Guide

TERMINAL SETUP
Using the Magnetic Card Reader
VX 680 I
NSTALLATION GUIDE 47
Using the
Magnetic Card
Reader
The VX 680 terminal supports credit/debit card transactions.
To Conduct a Credit
or Debit Card
Transaction
1 Position a magnetic card with the stripe in the card reader and facing inward,
toward the keypad.
2 To ensure a proper read of the magnetic swipe card, the user should insert the
magnetic card from the top of the unit, as shown in Figure 36.
3 Swipe the card through the magnetic card reader.
Figure 36 Using the Magnetic Card Reader
Using the Stylus
The VX 680 terminal has a touchscreen capability which allows the use of a stylus
on a transaction.
To Use the Stylus

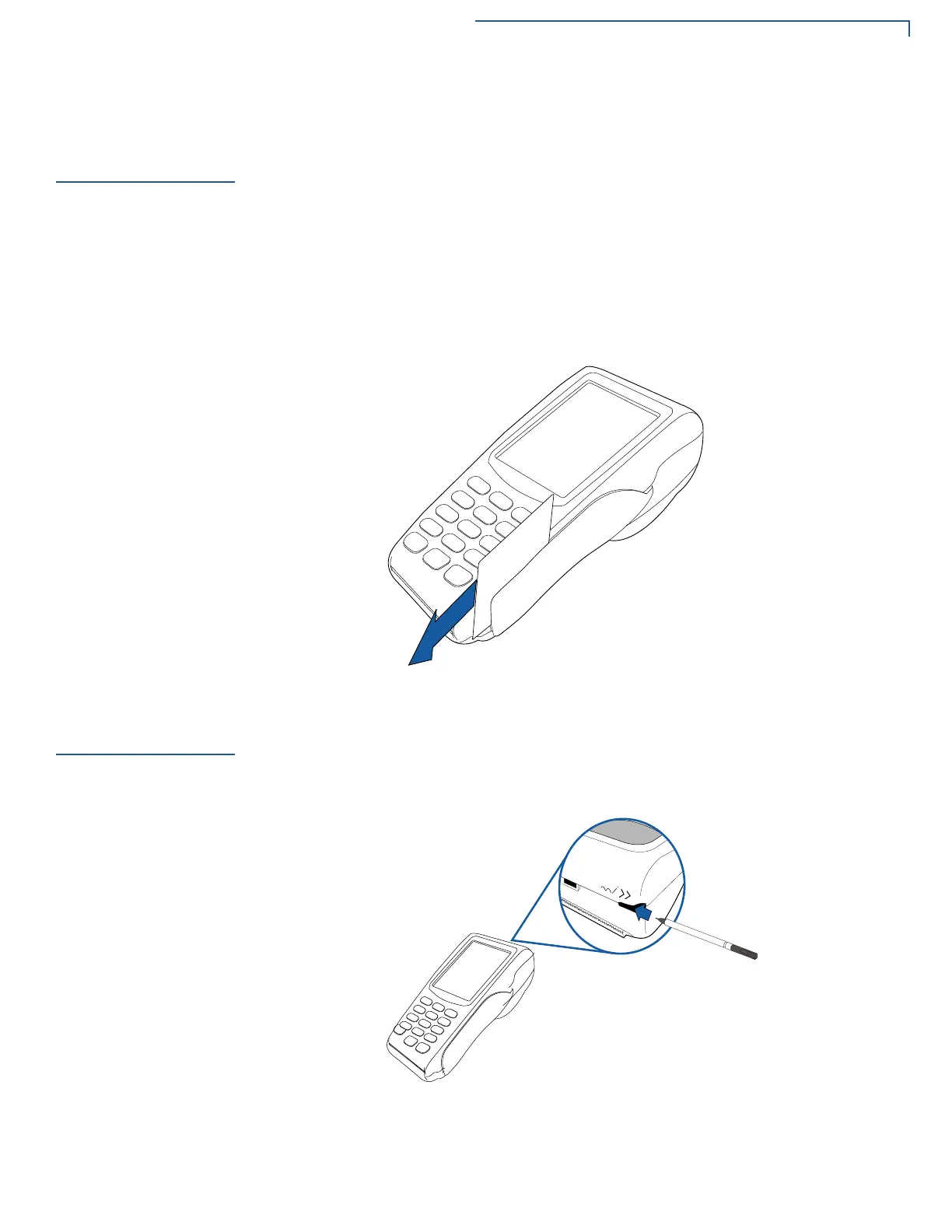

1 Remove the stylus from the top portion of the terminal, as shown in Figure 37.
Figure 37 Removing the Stylus
888888888888

VeriFone VX 680 Specifications

General

Display	3.5” QVGA (320 x 240 pixels) color LCD with backlight
Connectivity	Wi-Fi, Bluetooth, Ethernet
Processor	400 MHz ARM11 processor
Memory	128 MB Flash, 64 MB SDRAM
Operating System	Verix
Card Readers	MSR, EMV smart card reader, contactless/NFC
Printer	Integrated thermal printer
SAM Slots	3 SAM slots
Peripheral Ports	RS-232 port, USB port
Power Supply	AC adapter (100-240V), Battery backup
Weight	500g
