VeriFone VX 680 Installation Guide

TERMINAL SETUP
Establishing Telephone Line Connections
VX 680 I
NSTALLATION GUIDE 23
Establishing
Telephone Line
Connections
The VX 680 supports telephone line connections through a USB Modem Dongle
connected to the phone cable.
To connect a telephone line
1 Connect one end of the telephone cable to the USB Modem Dongle.
2 Connect the USB Modem Dongle to the terminal using the mini-HDMI
Connector (VPN CBL268-003-01-A).
3 Route the other end of the telephone cable directly to a telephone wall jack.

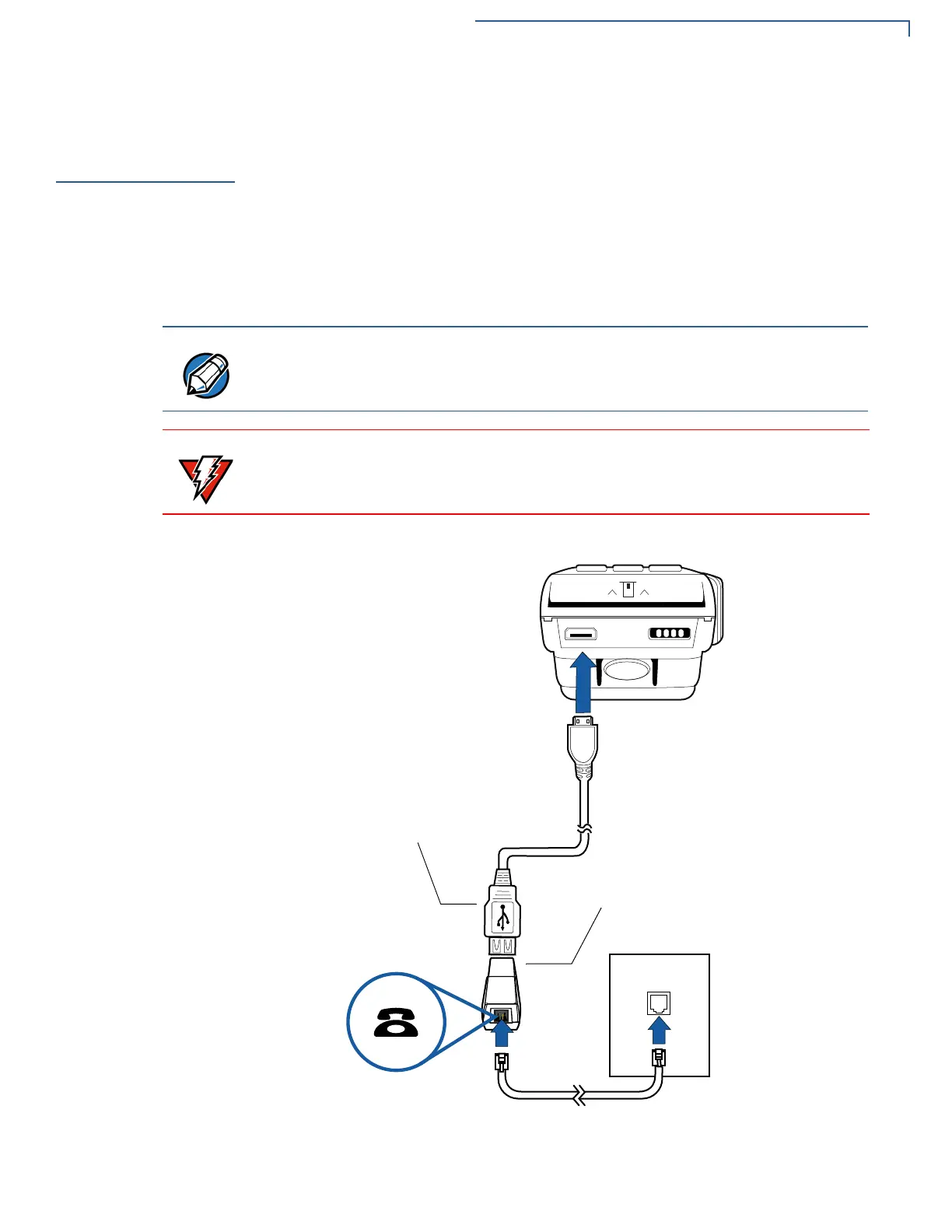

Figure 8 VX 680 USB Modem Dongle Connection
NOTE
The VX 680 WiFi/BT variant does not support the USB modem dongle
connection.
WARNING
To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA
Certified Telecommunication Line Cable.
USB HOST CABLE
USB MODEM DONGLE

VeriFone VX 680 Specifications

General

Display	3.5” QVGA (320 x 240 pixels) color LCD with backlight
Connectivity	Wi-Fi, Bluetooth, Ethernet
Processor	400 MHz ARM11 processor
Memory	128 MB Flash, 64 MB SDRAM
Operating System	Verix
Card Readers	MSR, EMV smart card reader, contactless/NFC
Printer	Integrated thermal printer
SAM Slots	3 SAM slots
Peripheral Ports	RS-232 port, USB port
Power Supply	AC adapter (100-240V), Battery backup
Weight	500g
